Help CenterGerman 625*625 LED Light Panel With TUV Driver
Related Products
-
2013 Hottest LED Light Panelwith TUV DriverUS$ 58 - 63MOQ: 10 Pieces -
2013 Newest Led Panel 625*625 40W 3850Lm With TUV DriverUS$ 62 - 67MOQ: 10 Pieces
-
TUV 600x 600mm 3850lm 40w Led PanelUS$ 53 - 63MOQ: 50 Pieces
-
Back Lighting Panel Led 40W 3850Lm for Germany MarketUS$ 94 - 97MOQ: 10 Pieces
-
3Years Warranty 60*60 LED Panel With TUV DriverUS$ 58 - 63MOQ: 10 Pieces
Specifications
2013 Hottest LED light Panelwith TUV DriverCold forging aluminium heat sink 226w/mk
625*625*45mm
Only 2.5kgs
Up to 96lm/w

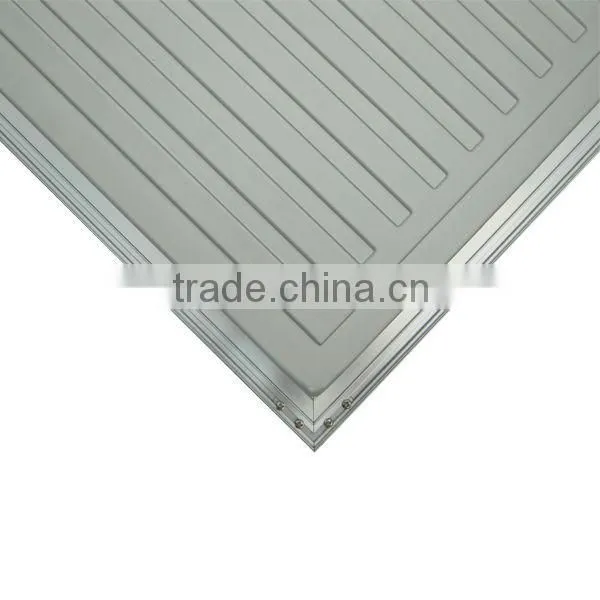

German 625*625 LED light Panel with TUV Driver
1. LED: 528pcs SMD3014
2. Input voltage: AC90-260 V
3. Frequency : 50/60 Hz
4. luminous efficacy >96lm/W
5. 3W LED down light CRI: >80 Ra
6. Environment temperature: -10°C-65°C
7. Life time: 3,5000hrs
8. LED Panel Light: CE ROHS TUV PSE Approval
9. Installation: Convenient and Efficient.
Specifications:
| Model | Size | Power | Luminous Flux | CCT | CRI |
| BT-MBD625625-40W | 625*625*45mm | 40W | 3850Lm | 2900-3200K 3700-4200K 5700-6300K |
> 80Ra |
| BT-MBD3030-15W | 300*300*45mm | 15W | 1400Lm | > 80Ra | |
| BT-MBD30120-40W | 300*1200*45mm | 40W | 3850Lm | > 80Ra | |
| BT-MBD60120-80W | 600*1200*45mm | 85W | 8000Lm | > 80Ra | |
| 3Years Warranty | LED Source:SMD3014 | ||||
| Exteral Driver with CE ROHS TUV PSE Approval | |||||
| Material: Cold Forging Aluminum+PMMA | |||||
TRADE TERMS:
Usually EXW, FOB Shenzhen, CIF is acceptable, other terms are negotiable
PAYMEMT TERMS:
Sample order: Western Union, Paypal.
For over amount over 30% T/T in advance, 70% balance T/T before shipping.
SAMPLE ORDER:
We accept sample order for testing.
Minimum order quantity (MOQ):
Commonly at least 50-100pcs be appceted for trial order.
LEAD TIME:
Usually, our lead time is 7 workdays for ordinary order.
QC & QA:
Our professional QC checks the materials, products strictly. And our QA offer the full inspection of goods before shipment to assure everything is ok.
WARRANTY:
1) Warranty time: 3 years
2) Products returned within the warranty period must been BETOP products .Products of unknown sources or without valid working will not be accepted.

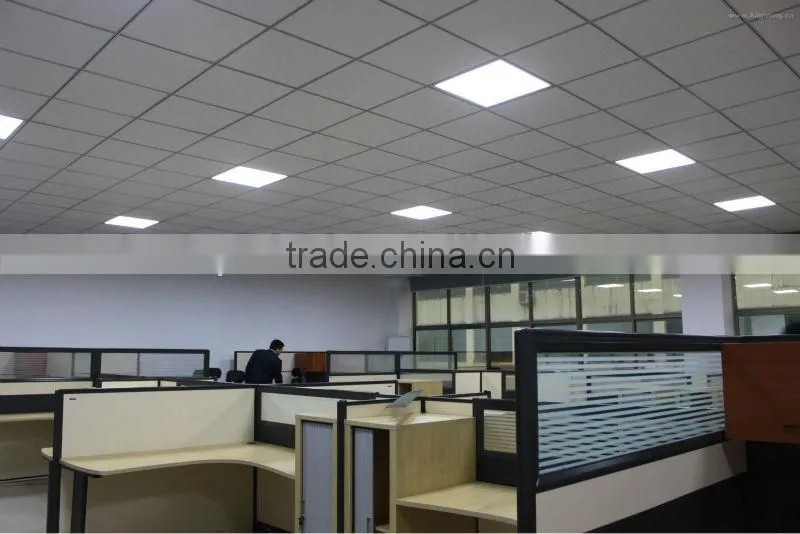

Backlighting LED Panel Light 620x620 40W output 3850lm, this item get warm reputation in UK EuroLED lighting show.
More Picture:
BETOP FACTORY VIEW:
