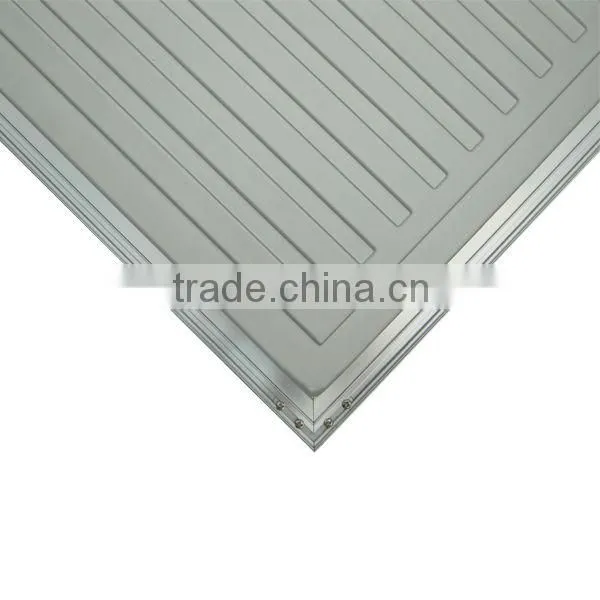

Backlit TUV led 620x620 ceiling panel light

Specifications

Backlit TUV led 620x620 ceiling panel light
Cold forging aluminium heat sink
620*620*45mm
Only 2.5kgs
Up to 96lm/w

 Backlit TUV led 620x620 ceiling panel light





1. LED: 528pcs SMD3014
2. Input voltage: AC90-260 V
3. Frequency : 50/60 Hz
4. luminous efficacy >96lm/W
5. 3W LED down light CRI: >80 Ra
6. Environment temperature: -10°C-65°C
7. Life time: 3,5000hrs
8. LED Panel Light: CE ROHS TUV PSE Approval
9. Installation: Convenient and Efficient.

Specifications:

Model	Size	Power	Luminous Flux	CCT	CRI
BT-MBD6262-40W	620*620*45mm	40W	3850Lm	2900-3200K 3700-4200K 5700-6300K	> 80Ra
BT-MBD3030-15W	300*300*45mm	15W	1400Lm		> 80Ra
BT-MBD30120-40W	300*1200*45mm	40W	3850Lm		> 80Ra
BT-MBD60120-80W	600*1200*45mm	85W	8000Lm		> 80Ra
3Years Warranty			LED Source:SMD3014
Exteral Driver with CE ROHS TUV PSE Approval
Material: Cold Forging Aluminum+PMMA



TRADE TERMS:
Usually EXW, FOB Shenzhen, CIF is acceptable, other terms are negotiable

PAYMEMT TERMS:
Sample order: Western Union, Paypal.
For over amount over 30% T/T in advance, 70% balance T/T before shipping.


SAMPLE ORDER:
We accept sample order for testing.

Minimum order quantity (MOQ):
Commonly at least 50-100pcs be appceted for trial order.

LEAD TIME:
Usually, our lead time is 7 workdays for ordinary order.

QC & QA:
Our professional QC checks the materials, products strictly. And our QA offer the full inspection of goods before shipment to assure everything is ok.

WARRANTY:
1) Warranty time: 3 years
2) Products returned within the warranty period must been BETOP products .Products of unknown sources or without valid working will not be accepted.

Backlighting LED Panel Light 620x620 40W output 3850lm, this item get warm reputation in UK EuroLED lighting show.

More Picture:

BETOP FACTORY VIEW:
