MAC ebike kit -- 36v/48v/50v battery

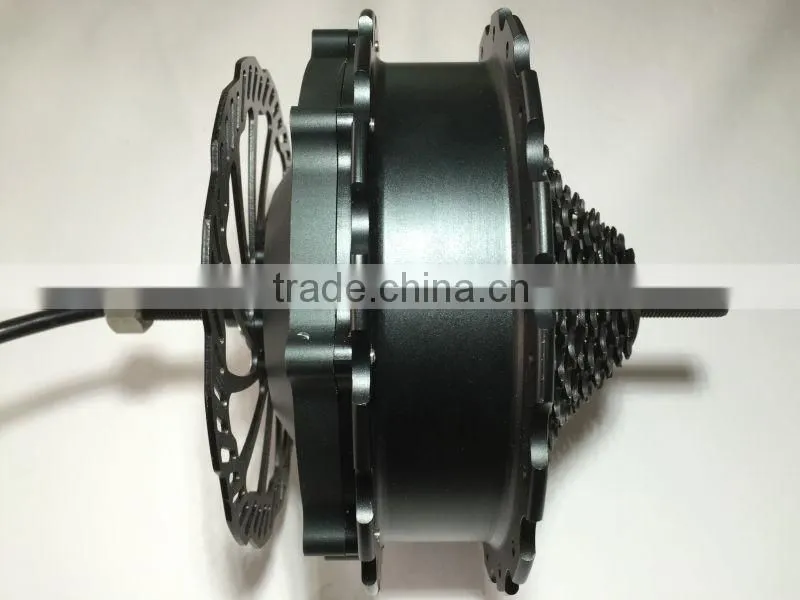

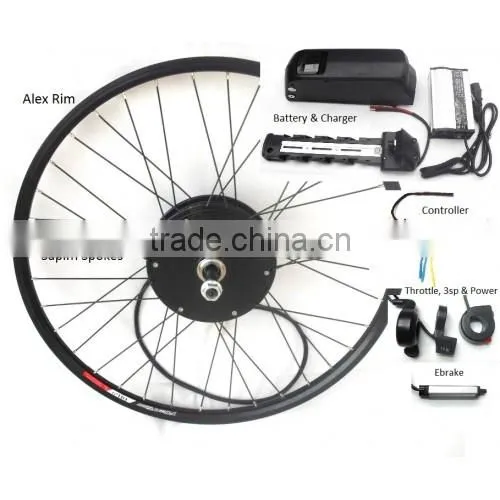

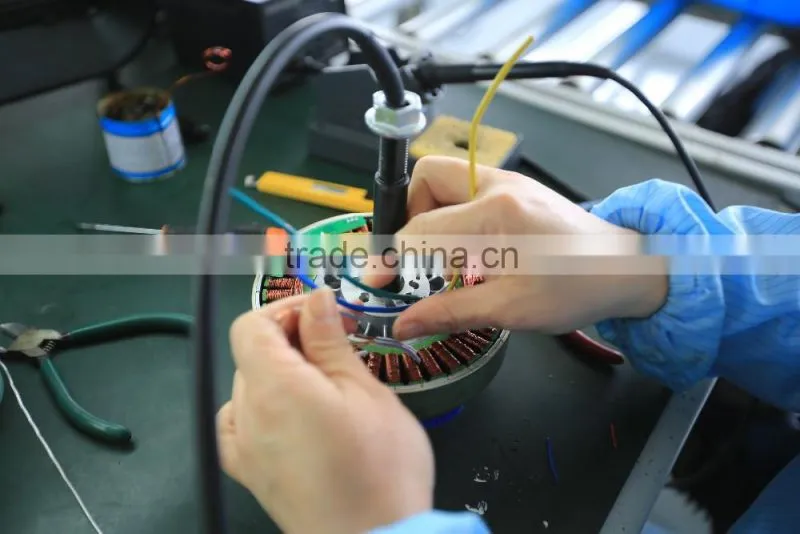

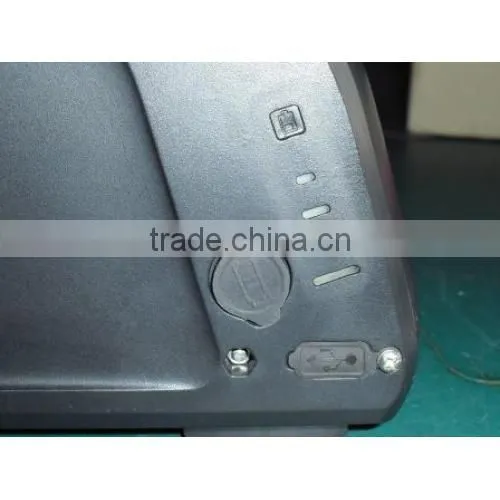

Our frame mounted pack can be built with either 10S 5P or 10S 6P (can also be built in 13S 4P, but that will be a separate listing). There are also a choice of 2 cell types currently available, which means the capacity is from 10.5Ah, up to approx 18.9Ah, depending upon the internal layout and cell type used. These frame mounted packs are lockable, water resistant and have a USB charging outlet. There is also a simple battery level LED indication and the battery has a power switch which has an LED to indicate when power is on. This power switch does not pass the discharge current, it only switches the BMS output on/off. This means a Pre-charge is not necessary for this battery, and means the switch is not liable to failure, as is so common on packs that pass the discharge current through a switch.

Cell Type Capacity (Ah) Capacity (Whrs) Max Cont. Current Max Burst Current Weight

Specification for each variant of the 36V Frame Pack

Standard 22P cells, 5P 36V 10.5Ah 378Whrs ~21A ~30A 3.6kg

Standard 22P cells, 6P 36V 12.6Ah 454Whrs ~25A ~30A 4.1kg

High Energy 32E (5P) 36V 15.8Ah 567Whrs ~24A ~30A 3.8kg

High Energy 32E (6P) 36V 18.9Ah 680Whrs ~25A ~30A 4.3kg


Cells are bonded into a pack using a special RTV with; high insulation resistance, which is flexible but also very strong. All signal cables are terminated via a PPTC as with all our packs to protect against a short. Even a dead short on the BMS Signal wires will not cause a hazardous situation. 4mm bullet will be fitted to the cables exiting the slider as standard. Charger is included, it is a suitable 42V 2A unit, intended for 10S Li Ion. The slider is easily mounted to the frame using the water botlle mountings.

Specification:


42V 2A fan-less plastic case charger is an optional extra. These are a good quality charger (very reliable in our experience) with UL and CE. (may differ from the charger shown in some images).

We conservatively rate the cells as 2.1Ah each (SDI-ICR18650-22P) and 3.15Ah (SDI INR18650-32E), although the maker classes them a little higher than this. Like with any Li Ion type battery, best long term performance is obtained by not using all of the available capacity all of the time. It is possible to use the high power INR18650-20R cells (10C rated) for this pack if requested, but due to the limited discharge rate available from the BMS (which is fixed), we considered it a combination that doesn't make so much sense.

Cycle Life estimated at 700 cycles plus (1C Discharge to 2.7V, 1C charge to 4.2V). Cycle life is extended by charging to 90% and limiting discharge to 90% and also by more moderate usage. To accurately limit discharge the Cycle Analyst is a great tool.

PPTC thermal fuses used on all signal wires. If a fault were to ever occur on any of the small balance wires which run around the battery pack, the fuse simply shuts down the connection and keeps everything safe. Once the fault condition is removed, function returns to normal.

Maximum Charge Current 3A max (BMS has a 3A PPTC fitted for protection and also the DC2.1 Charge plug used, is rated 3A max).

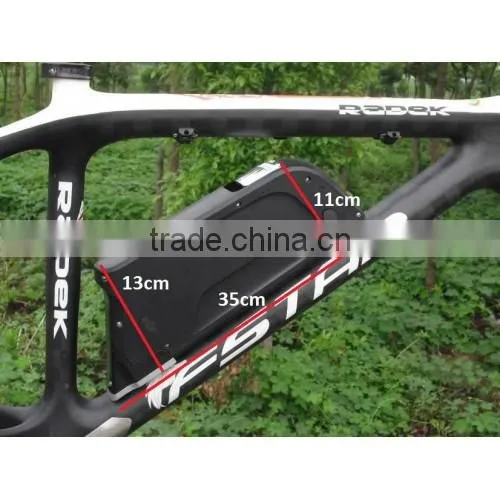

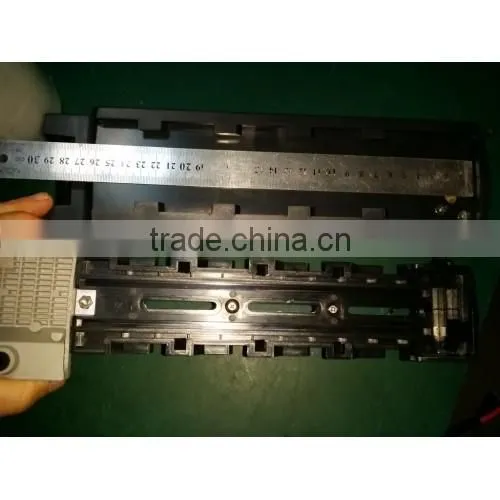

Maximum dimensions of: 85mm thick. 130mm tall, 350mm long. See labelled picture in additional images for detailed information, as it has a complex shape.

Weight: 10S 5P, 22P - 3.6kg, 10S 6P, 22P - 4.1kg, 10S 6P, 32E - 4.3kg, (including slider).
