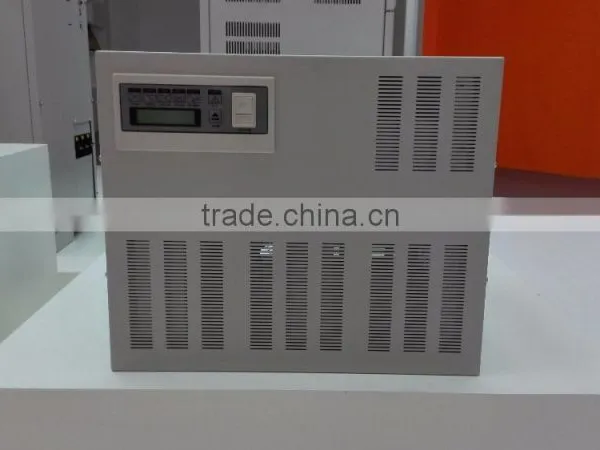

AVIC-TECH 6kVA Single Phase Online UPS | ||
Model |
AHA-603T-LX |
|
Input |
AC Voltage |
230VAC |
AC Input Range |
+-25% |
|
Frequency |
60Hz ± 5Hz |
|
DC |
Rated Battery Voltage |
DC192V |
Charging Current |
Standard 5A, other current values are optional |
|
Output |
Rated Capacity |
6kVA |
Output Voltage & Accuracy |
1P2W 110VAC ± 1% |
|
Frequency & Accuracy |
60Hz ± 0.1% |
|
Waveform Distortion |
Sine wave, 100% linear load harmonic distortion < 3% |
|
Power Factor |
0.8 |
|
Crest Factor |
3:1 |
|
Conversion Time |
0 ms |
|
Protection |
Battery |
Shutdown automatically if battery voltage low, breaker protection |
Overload |
120% - 150% over 60 seconds will be switched to bypass power supply, automatic recovery at lower load |
|
Short Circuit |
Limit current automatic shutdown, fuse & breaker |
|
Failure |
Failure or internal overheat, switch to bypass operation, alarm |
|
Electromagnetic Disturbance /Compatibility |
EN50091-2 approved (optional filter) |
|
Display |
LCD Display |
English display panel, logo, UPS condition, input/output voltage, battery voltage, load ratio, history information |
LED Display |
Electricity, output, battery, bypass, overload, failure |
|
Alarm |
Abnormal Electricity |
Beep every 4 seconds, mute automatically after 90 seconds |
No Battery Input Or Battery Power Runs Out |
Beep every 1 second until shutdown |
|
Overload |
Beep continuously |
|
System Failure |
Beep continuously |
|
Communication |
RS232 or RS485 (optional), support RUPSII UPS/UPSilon 2000 Monitoring Software/MODBUS (optional) NetAgent fix IP internet monitoring software/5 groups of switch alarm connection |
|
Environment |
Operating Temperature |
-5 °C ~ +40 °C (23 °F 0 ~ 104 °F) |
Relative Humidity |
0 ~ 95% no condensate |
|
Noise Level |
< 50dB less than 1m from source |
|
Dimension |
Tower WxDxH(mm) |
240 x 580 x 575 |
Weight (kg) |
65 |
|
Application:
Elevator, Security system, telecom, hopital, etc.
Product warranty: 18 months after the shippment.
Key Features:
User friendly operational design
RS232/RS485 connection, optional SNMP card
Frequency isolation in both input and output
Modular design, MTBF(mean time between failure)<0.5 hour
Our Company:
We are the ISO9001 and ISO14001 approved manufacturer of uniterruptible power supply for over 13 years.
We focus on industrial UPS (Low Frequency UPS) and has winned many industry projects over the world.
With our strong R&D support, we developed the first Nuclear UPS in domestic market.
Welcome to visit our company website: / for more information.
