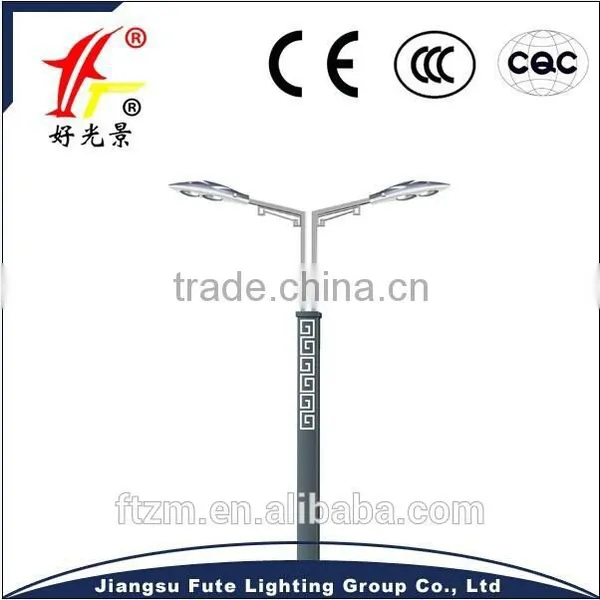

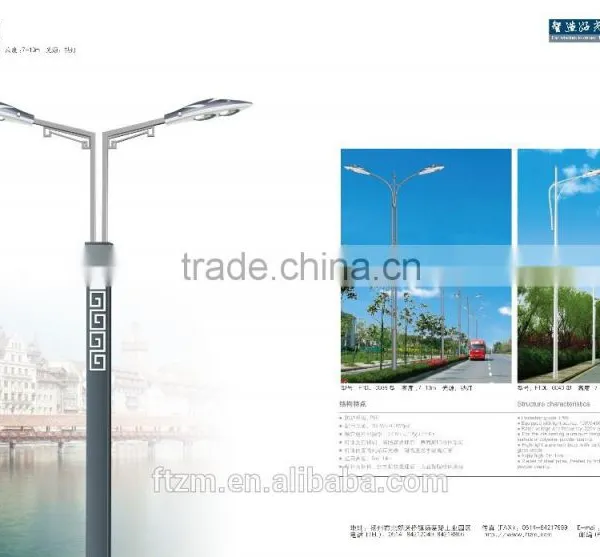

Photocell Cast Iron Street Lamp Posts

Designed or improved for various kinds of Road light,street light pole,outdoor lighting pole, street lighting,lighting pole,lighting,road lighting pole,road light pole,road lamp pole,steel pole,light pole,lighting pole,street pole,road pole,poles, high mast poles, and traffic single pole.

Specification:

1.Key Process:

(1)Material Preparation→(2)Bending→(3)Welding→(4)Repair and Grinding→(5)Reforming→(6)Flushing→(7)Fix bottom plate→(8)Welding bottom plate→(9)Opening door→(10)Welding door strip, electric strip, and locking→(11)Bending arm→(12)Hot dip galvanization→(13)Plastic powder painted→(14)Inspection→(15)Shipment

2.Each process:

Material preparation

1)Before cutting the plate, first adjust the inclination to meet with required vertical shears.

2)Fix the position of steel plate, assure maximum excess material.

3)The length is decided when laying up the plate. The size of bottom should not more than ±2mm, but for high mast the tolerance should be plus, usually: 0 to 2m, for small ending, the tolerance should be minus, usually -2 to 0mm. When adjust is ready, the cutting machine will finish cutting.

4) About equipment: check condition of roller shear, clean sundries on the track, maintain good conditions.

Bending

The work of bending is the most important process, which will directly influence the quality of pole, and the finished product cannot be repaired. Pay attention to following tips:

1)before bending: remove residues to keep new plate away from damage

2)check the length, width and straightness of plate, the non-straightness should be less than 1/1000, if the non-straightness meets requirement, correct, especially the polygon poles must keep non-straightness.

3)adjust the depth of bending with the bending machine, and confirm the location of plate.

4)Correctly mark line on the plate, the tolerance should be less than ±1mm.

5)Correctly line up and bend to keep min seam, meanwhile the distance between two sides should be less than 5mm.

Welding

Weld the seams of bended plate. As it is semi-auto welding ,the welder has more work to do, he should adjust the position of welding and assure straightness of line.

Installation

We offer detailed instructions and videos for installation. Besides, FUTE Group can provide onsite installation training and technical assistance free of charge in initial period for large projects of more than 100 poles. However, all the travelling and food & accommodation costs shall be borne by the customer.

After-sale service

a. We will offer technical guidance and repair service for the whole life time of our products.

b. We promise to respond with customer’s questions within 24 working-hours.

Life Time & Warranty

Lamp: Use Yaming brand for light source, with 3-year warranty.

Pole: up to 25 years of long life time, with a 15-year warranty

FUTE Group’s warranty does not cover damage caused during or after installation. The product components should be inspected as soon as the packaging is removed and any damage should be reported without delay. Once the product has been installed, We will not be responsible for any newly discovered damage. The product must be installed properly, with no unauthorized adjustments. Any costs caused by incorrect installation, including all accommodation and travelling costs of our technicians to the purchaser’s installation site shall be borne by the purchaser. Damages caused by lightning strikes are not covered. If there is the repair of electrical components without our permission or the use of electrical components not supplied by our company, any of the above warranties shall be exempted.

We reserve the right to substitute similar or better components in its lamp system provided that the product performs equally or better under the same guarantees.

Jiangsu Fute Lighting Group Co., Ltd. (hereinafter referred to as Fute Group) , established in 1987 and located in Songqiao industrial park in the north suburb of Yang Zhou city, Jiangsu Province, is one of the most professional solar LED outdoor lights & electric LED street lights manufacturers in China. At present Fute Group owns 6 subsidiaries such as Yangzhou Fute Steel Pole Lighting factory, Jiangsu Huaxi New Energy Development Co., Ltd., Jiangsu Jiaying Galvanizing Co., Ltd., which occupies a land area of 137,000 square meters and holds the registered capital of RMB 126.88 million Yuan. Our main products are electric LED street lights, traffic lights, solar street lights, solar garden lights and small and medium solar off-grid or grid-connected generating systems, etc. Since 2002, as a reliable & professional solar lighting solution provider, Fute Group has successfully sold our reliable & cost-effective products to overseas markets such as Middle East, Europe, Africa, South America, etc.

After more than 20 years of hard efforts, Fute Group has been honored as a faithful and trustworthy enterprise by the local industrial & commercial bureau, appraised as an enterprise with the top credit rating AAA and recommended as a famous lighting lamps brand name of Jiangsu province. Currently , Fute Group has been an ISO 9001: 2008, ISO14001: 2004, Golden Sun Certification, CE , RoHS, and CCC approved manufacturer in street light industry in China.

Fute Group boasts full series of advanced manufacturing & testing equipments, including 1200T automatic numerical control hydraulic 16m one-time forming & bending machine, automatic numerical control pipe-welding machine, hot dip galvanizing production line, two automatic production lines for plastics spray coating, automatic submerged arc welding machine, high power LED production & assembly & inspection line, solar panel production line and Pressure Machine, Integrating Sphere, Lighting Simulating Machine, and Weather-ability Testing Machines, etc. Moreover our company boasts strong technological capabilities and owns our own new products R&D center so as to provide excellent and considerate warranty & after-sale services.

Fute Group shall devote itself to cooperate hand in hand with more domestic and foreign partners and distributors based on mutual reciprocity and benefits, to grow together, share resources and create a win-win relationship.

Q1:How about your delivery time ? Delivery Terms ?

A1:3-5 business days for sample ,order subjects to your quantity

Delivery terms as follows: FOB ,CIF,EXW ,etc.

Q2:Can I get some samples?

A2: We are honored to offer you samples.

Q3:How does your company do regarding quality control?

A3:we always attach great importance to quality controlling from the very beginning to the very end

Q4:Which kind ways of transportation you use ?

A4: By ocean ,air or express

Q5: Could you offer me the safest terms of payment?

A5: T/T ,PAYPAL, WESTERN UNION are available,you can choose the best way

Q6:What's about the packing details?

A6:Individual neutral packing for each lamp, and Customized  packing is acceptable.

Q7:Are you Manufacturer?

A7:Yes ,We are
