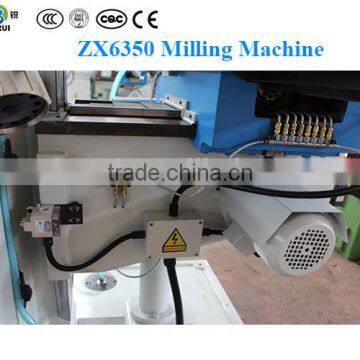

Universal ZX6350ZA Milling Machine
(Limit switch configuration, the operation is more secure)
ZX6350ZA Milling Machine Feature:
1.Milling and tapping function
2.Worktable can be equipped with the gear transmission power feed,
3.Full-featured and flexible
4.Easy to operate
5.Can be add plug and swivel table
6.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
7.Work Table Made by HT200-250 High Strength Cast Iron
8.Dovetail Table Guide ways Withstand Larger Overturning Moment
9.Vertical Milling Spindle Auto-Feeding
10.Gear Drive Milling Head
11.Head stock Swivels ±45
MODEL |
ZX6350ZA |
Max. drilling dia.(mm) |
50 |
Max. end milling width(mm) |
100 |
Max. vertical milling dia.(mm) |
25 |
Max boring dia.(mm) |
120 |
Max. tapping dia(M) |
M16 |
Spindle tapper (MT) |
7:24 ISO40 |
Distance from spindle nose to working table(mm) |
80-460(Vertical) |
Spindle speed range(r.p.m) |
(vertical)90-2000 (horizontal)40-1300 |
Spindle travel(mm) |
120(vertical) |
Worktable size (mm) |
1250X320 |
Worktable travel(L/H/V)(mm) |
600X300X430 |
Main motor(Kw) |
(vertical)1.5 (horizontal) 2.2 |
Overall diametion(mm) |
1680X1480X2250 |
N.W/G.W(Kg) |
1450/1560 |
|
Standard accessories
|
Optional Accessories: |
1.Drill chuck |
DRO on X, Y, Z--AXIS |
2.Mill chuck |
Clamping kit |
|
3.Inner hexagon spanner
|
Universal dividing head |
|
4.Work light 5.Reduction sleeve
|
Rotary work table. |
|
6.Draw bar
|
|
|
7.Spindle arbor
|
|
|
8.wrench
|
|
|
9.Machine vice
|
|
|
10.Horizontal milling arbor
|
Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machineand other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
Q: How do we confirm the accuracy and performance of machines?
A:(1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A:Sure,We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
