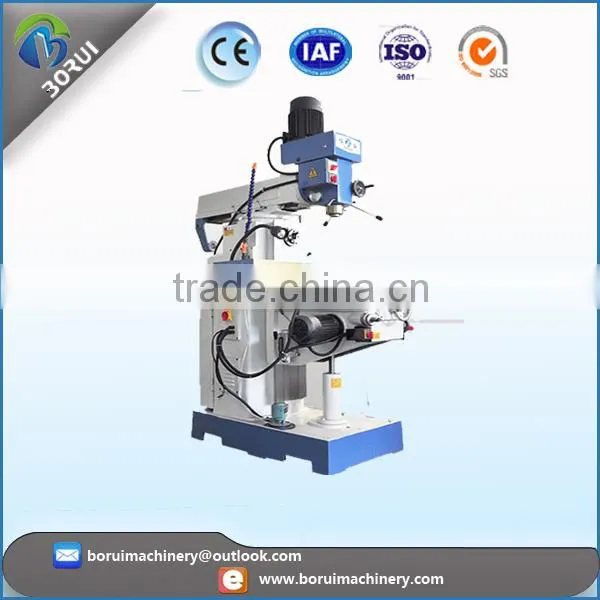

Product Name : Milling Machine ZX6350
Our company could provide the ZX 6350 series milling machine model as following: ZX6050A ZX6350C ZX6050D ZX6350ZA ,we also modify the milling machine as ZX6328 .
The Difference of the four model :
1.The difference of ZX6350A and ZX6350D :The ZX6350A with lifting motor ,the machine worktable could lift automatically and manually ,but the ZX6350D just could lift the machine worktable by manual .
2.The difference of ZX6350A and ZX6350ZA is :ZX6350ZA install the “Z”style milling head on the base of ZX6350A machine body .which could drill automatically .but the ZX6350A just could drill manually .
3.The difference of the ZX6350 D and ZX6350C :The structure of slider is different and the feeding is different ,the X/Y of ZX6350D could feed automatically ,but ZX6350 C just X feed automatically ,also without lifting motor .
4.The difference of ZX6350C and ZX6328:The ZX6328 install the #3turret milling head.but the machine body is same with ZX6350C .
MODEL |
ZX6350ZA |
ZX6350A |
ZX6350D |
Max. drilling dia.(mm) |
50 |
50 |
50 |
Max. end milling width(mm) |
100 |
100 |
100 |
Max. vertical milling dia.(mm) |
25 |
25 |
25 |
Max boring dia.(mm) |
120 |
120 |
120 |
Max. tapping dia(M) |
M16 |
M16 |
M16 |
Spindle tapper (MT) |
7:24 ISO40 |
Morse 4 |
Morse4 |
Distance from spindle nose to working table(mm) |
80-460(Vertical) |
80-460(vertical ) |
80-460(vertical) |
Spindle speed range(r.p.m) |
(vertical)90-2000 (horizontal)40-1300 |
(vertical)115-1750 (horizontal)40-1300 |
(8steps)115---1750(Vertical) (12steps)40-1300 |
Spindle travel(mm) |
120(vertical) |
120(vertical) |
120(vertical) |
Worktable size (mm) |
1250*320 |
1250*320 |
1200*280 |
Worktable travel(L/H/V)(mm) |
600*300*430 |
600*300*430 |
600/270/290 |
Main motor(Kw) |
(vertical)1.5 (horizontal) 2.2 |
0.85/1.5(Vertical) 2.2(Horizontal) |
0.85/1.5(Vertical) 2.2(Horizontal) |
Overall dimention(mm) |
1680*1480*2250 |
1680*1480*2250 |
1680*1480*2250 |
N.W/G.W(Kg) |
1450/1560 |
1450/1560 |
1450/1560 |
MODEL |
ZX6350C |
ZX6328 |
Max. drilling dia.(mm) |
50 |
50 |
Max. end milling width(mm) |
100 |
100 |
Max. vertical milling dia.(mm) |
25 |
25 |
Max boring dia.(mm) |
120 |
120 |
Max. tapping dia(M) |
M16 |
M16 |
Distance from spindle nose to working table(mm) |
80-460(vertical) |
80-460 |
Spindle speed range(r.p.m) |
40-1400(vertical) 40-1300(horizontal) |
40-1400(vertical) 40-1300(horizontal) |
Spindle travel(mm) |
120 |
120 |
Worktable size (mm) |
1200*280 |
1200*280 |
Worktable travel(L/H/V)(mm) |
700/260/430 |
650/300/430 |
Main motor(Kw) |
0.85/1.5(vertical) 2.2(horizontal) |
2.2(vertical) 2.2(horizontal) |
Overall dimention(mm) |
1600*1300*2200 |
1400*1400*2250 |
N.W/G.W(Kg) |
1270/1360 |
1360/1470 |

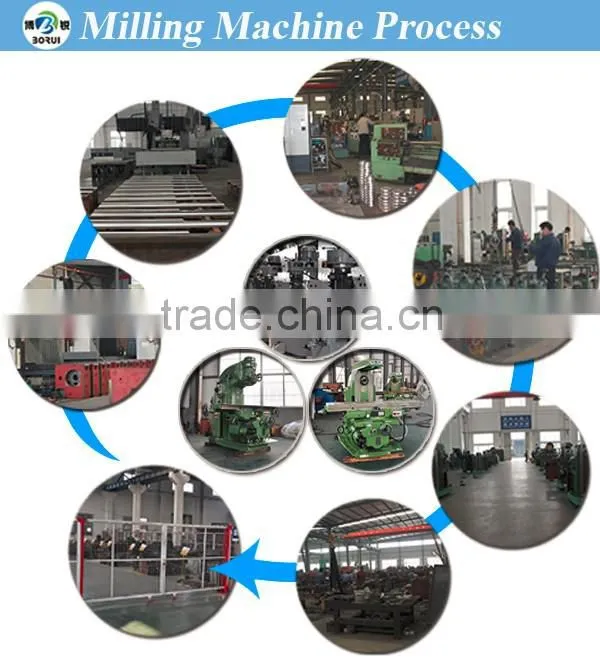

Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .Our factory establishes in 1980 years ,have over 30 years history ,what's more ,we are comprehensive manufacturer.
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
