planetary mixer in zhengzhou

Item

Model

MP250

MP330

MP500

MP750

MP1000

MP1500

MP2000

MP2500

MP3000

Output Capacity (L)

250

330

500

750

1000

1500

2000

2500

3000

Input Capacity (L)

375

500

750

1125

1500

2250

3000

3750

4500

Input Capacity (kg)

600

800

1200

1800

2400

3600

4800

6000

7200

Mixing Power (kw)

11

15

18.5

30

37

55

75

90

110

Discharging Power (kw)

2.2

2.2

2.2

2.2

3

3

4

4

4

Planet/Paddle

1/2

1/2

1/2

1/3

2/4

2/4

3/6

3/6

3/9

Side Scraper

1

1

1

1

1

1

1

1

1

Bottom Scraper

____

____

____

1

1

1

2

2

2

Weight (kg)

1200

1700

2000

3500

6000

7000

8500

10500

11000

Motion Track
The revolution and rotation speed of the blades have been extensively studied and tested to give the mixer a high output without causing the segregation of materials with different grain size and weight. The movement of the material inside the trough is smooth and continuous. As shown in the picture, the blades track covers the while bottom of the trough after a cycle.


Gearing System
The power transmission is realized by a hard surface gearbox which is designed specially by our company (This technique has been patented). Fluid clutch is installed between the motor and the gearbox (This item is optional). The Fluid clutch can ensure the mixer startup smoothly and it can keep the mixer start up normally even in the full load condition.
The driving force provided by gearbox drives the mixing arms to do not only a revolution but also a rotation, and drives the scraping arms have a revolution. By this drive mode, the mixing action not only has a rotation but also has a revolution, the more complex of the motion track, the more turbulent the mixing is, and then the mixer works more effectively, its mixing more homogeneous.

Security Device of the Maintaining Door
According to the market demands, reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.


Discharging Device
According to different demands of customers, the discharging door can be opened by hydraulic, pneumatic. The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable.

The Hydraulic Power Unit
A special designed hydraulic power unit is used to provide power for more than one discharging gates. On emergency, these discharging gates can be opened by hand.


Mixing Device
Driven by the fearing system, the blades fixed on mixing arms and the scrapers on scraping arms crush and overturn the material to complete the compelling mixing.

Maintaining Door
According to different demands of customers, there could be three maintaining doors at most. When maintaining, all of them can be opened. Thus it is convenient to maintain. There is also special sealing structure to protect the environment.

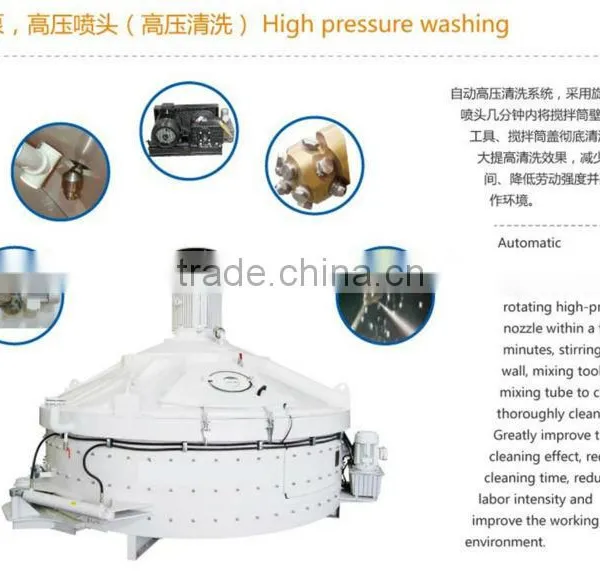

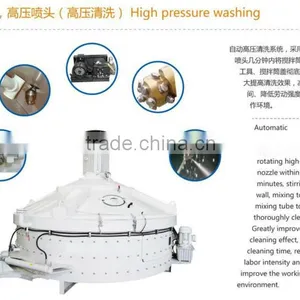

Water Spray Pipe
The special designed sprayer is installed on the water pipe. The spraying water cloud can cover more area and also make the mixing more homogeneous


Observing Port
There is an observing port on the maintaining door. You can observe the mixing situation without cutting off power.


Spare Parts
Spare parts can be supplied at any time.

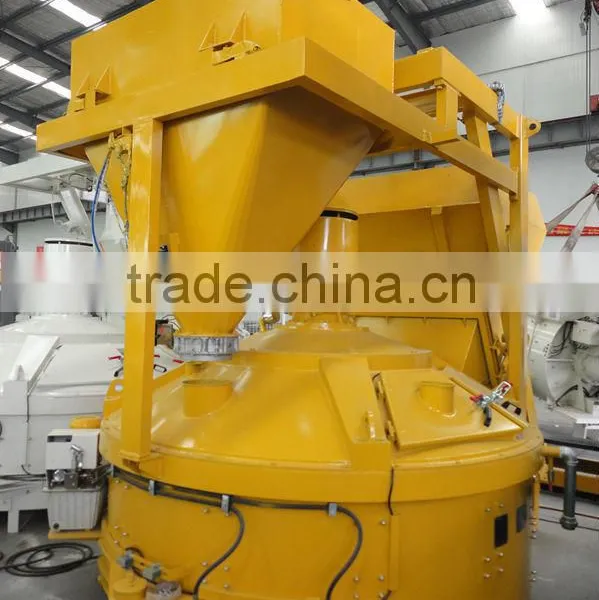

The Skip Hopper
Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.

Temperature and Moisture Sensor
To ensure concrete and prefabricated parts quality, sensors of temperature and moisture made in Bikotronic of German can be selected.

Weighing System
According to different requirements we can add aggregate weigher, cement weigher and water weigher.

Dust Collecting Device
The dustcolecting device is working together with the mixer in order to protect the working condition.

Control System
The control system can automatically control the process of dosing, mixing, and discharging.
