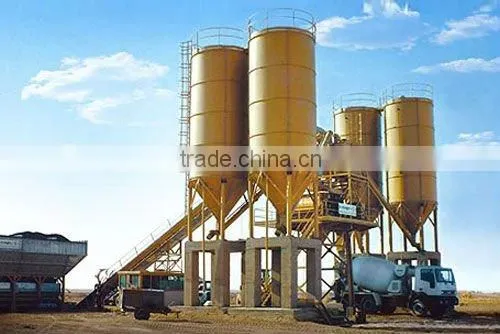

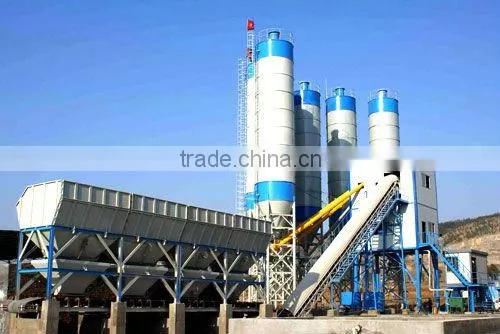

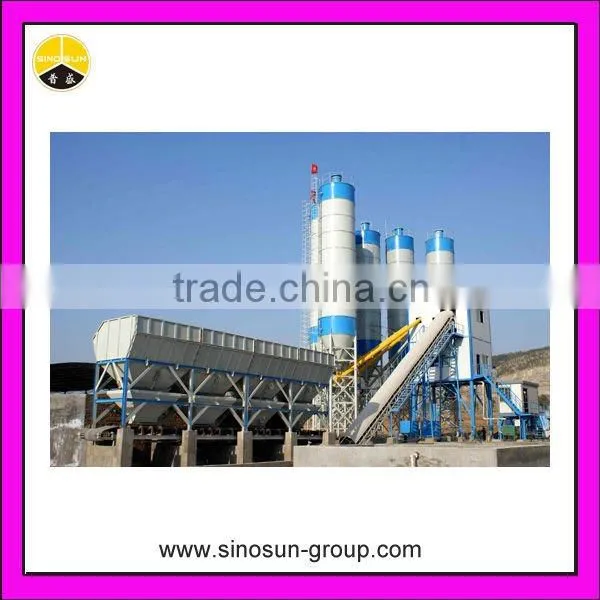

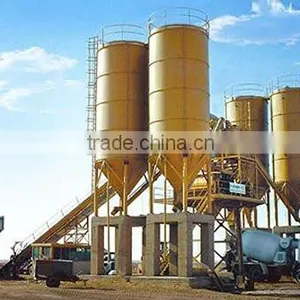

HZS120 Stationary Concrete Batching Plant,Concrete Plant For Sale
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS2000
Volume: 3200L
Capacity: 2000L
Mixing Blade: 2×9 pcs
Mixing Speed: 23.1 r/min
Mixer Motor: 2×37 kw
Weight: 9200kg
Dimensions: 3810×2480×17100mm
2. AGGREGATE SYSTEM
2.1 Aggregate batcher: PLD3200
Volume: 4×15m3
Capacity: 192m3/h
Power: 11kw
Weight: 10200 kg
Dimension: 12120×3960×4800mm
2.2 Aggregate belt conveyor: 1 unit
Belt width: 1000 mm
Belt speed: 1.6 m/s
Power of Motor: 22 kw
3.CEMENT SYSTEM (OPTIONAL)
3.1 Cement silo: 4 units
Capacity: 100t×4=400t
Silo Diameter: Φ3000
3.2 Cement Screw Feeder: 4 units
Diameter: Φ273mm
Length: 9m
4. ADDITIVE SYSTEM (OPTIONAL)
Additive silo Capacity: 1m3
Pneumatic Valve: Φ50 mm
Pump: 2×3kw
5. WATER SYSTEM
Motor Power: 7.5 kw
Butterfly Valve: Φ150 mm
Capacity: 150m3/h
6. AIR SYSTEM
Air Compressor: 1unit
Power: 11 kw
Pressure: 1.0 Mpa
Air flew: 1.2m3/min
7. WEIGHING SYSTEM
7.1 Aggregate Weighing: 1unit
Weighing Capacity: 5000kg
Precision: ±1%
7.2 Cement Weighing: 1 unit
Weighing Capacity: 1200kg
Precision: ±1%
7.3 Water Weighing: 1 unit
Weighing Capacity: 400 kg
Precision: ±1%
7.4 Additive Weighing: 1 unit
Weighing Capacity: 50 kg
Precision: ±1%
8. CONTROL SYSTEM
PLC command and control operation.
Main electrical components: SCHNEIDER or SIMENSE
17’ colorful computer
Manuel and Auto Control is freely changeable.
