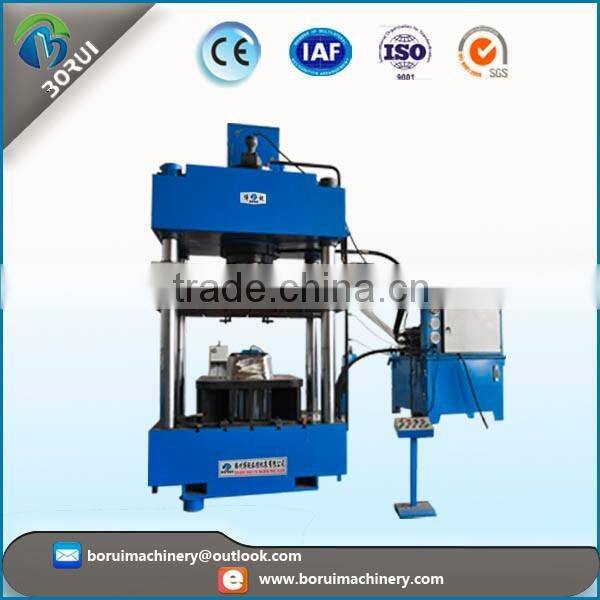

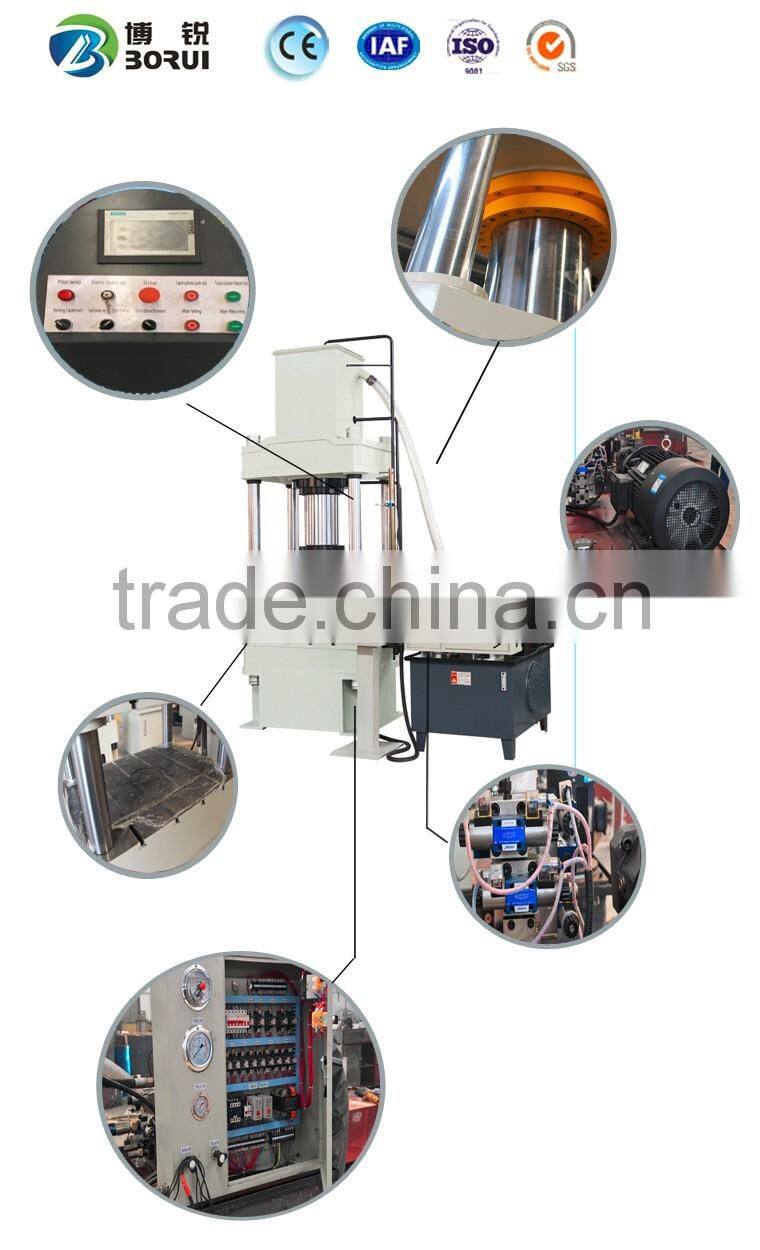

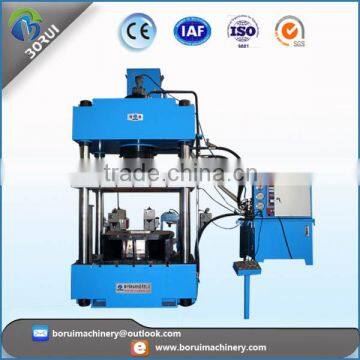

The Prodcut Name :Hydraulic Press for Wheelbarrow
1.We could produce this hydraulic press worktable size according to customer's requirement.
2.The oil cylinder is 45#stell seamless tube .
3.The worktable is quenching process .
4.We adopts the Simens or DELIX electric element .
5.The hydraulic valve using the famouse brand in china .
The main specification of the hydraulic press machine
Specification |
Unit |
YQ32-630 |
YQ32-800 |
YQ32-1000 |
YQ32-1250 |
YQ32-1600 |
YQ32-2000 |
Nominal force |
Kn |
6300 |
8000 |
10000 |
12500 |
16000 |
20000 |
Max pressure of hydraulic system |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
Max. Opening height |
mm |
1500 |
1800 |
1600 |
1600 |
1800 |
1800 |
Slider effective stroke |
mm |
900 |
1000 |
900 |
900 |
1000 |
1000 |
Working table size |
mm |
1600*1600 |
1500*1500 |
1500*1500 |
1800*1600 |
1600*1600 |
2000*1800 |
Nominal force of Ejection cylinder |
Kn |
1000 |
1000 |
1000 |
1000 |
1600 |
2000 |
Ejection stroke |
mm |
300 |
350 |
350 |
350 |
350 |
350 |
Slider working speed (empty travel) |
Mm/s |
150 |
150 |
160 |
160 |
160 |
200 |
Slider working speed (press) |
Mm/s |
10-22 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
Slider working speed (Return stroke) |
Mm/s |
120 |
120 |
140 |
140 |
140 |
180 |
The using of the hydraulic press
1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case , bumper
2. Household appliances: washing machine , TV, refrigerator ,air conditioning, rice cooker and other parts .
3. Kitchenware: sink ,tea set and Other kinds of containers .

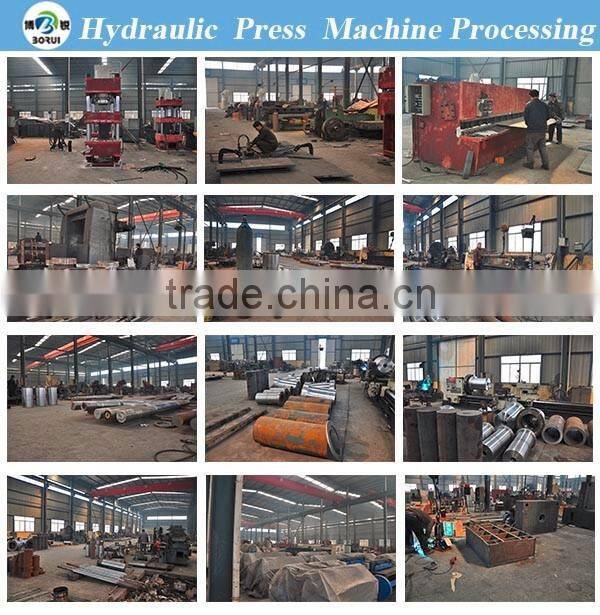

Tengzhou Borui CNC Machine tool Co.,Ltd is an integrated company ,which set development, production, sales as one .Our factory establishes in 1980 years ,have over 30 years history ,what's more ,we are comprehensive manufacturer.
Our Company’s CNC lathe, machining center, drilling machine, hydraulic machine and other products export to many countries. Especially in Egypt, Saudi Arabia, Turkey ,we have good customer base, also export to South America and other countries.
The company with innovative ideas that developing market, and
always with good quality. Reasonable price, accurate delivery and quality service ,we set a good image in the customer .
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Plywood
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Q: How do we confirm the accuracy and performance of machines?
A: (1) Regarding the performance ,we could produce a workpiece for your consult ,which will be produced according to the customer's sample that send to us.
(2)You could inspect machine accuracy by online video
(3)You also could check our factory and machine quality by SGS or other Inspecting Authority.
Q: Can you change the voltage of machine?
A: Sure,we can , We can change the voltage according to different area. 110V-220V-380V-400V-440V
Q: What's the delivery time after payment ?
A: It need about 30 days if the machine is customized .and it just need about 20 days if your machine is universal .
Q: How long is your quality guarantee period?
A:One year, if machine has problem, we will provide accessories in free, in the meantime, we can use DHL or TNT express delivery.
We guarantee that if customers have questions, we will reply within 8 hours, and develop a set of complete solutions according to customers’ problems.
