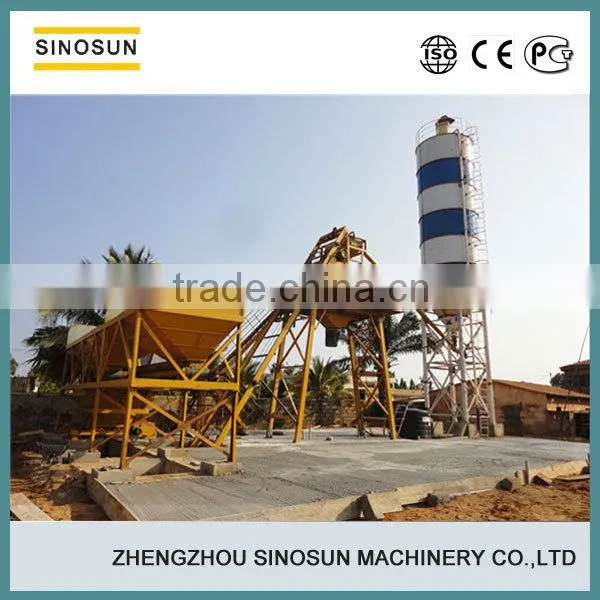

HZS75 concrete mixing plant,stationary concrete batching plant
HZS Series stationary concrete batching plant is developed by SINOSUN.
HZS Series stationary concrete batching plan is suitable for the commodity concrete and concrete construction in each kind of architectural project, including water conservancy, electric power, railroad, tunnel, arch of bridge, harbor-wharf and national defense project, etc. The application scope is widely spread.
HZS Series stationary concrete batching plant can mix hard concrete, plastic concrete, liquid concrete, and other various lightweight aggregate concrete.
HZS75 has the capacity of 75m³/h, adopts JS1500 Twin Shaft Concrete Mixer. The aggregate loading type is skip hoist hopper.
HZS75 stationary concrete batching plant is medium capacity plant.
Technical parameter
HZS75 Concrete Mixing Plant
Capacity (m3/h):75
Mixing Time (s):60
Discharging Height (m):3.8
Total Power (KW): 90
Max Aggregate Size (mm) :Gravel 60 /Pebble 80
Dimension (mm): L 18200 /W 10000/H 19400
Total Weight (t) :54
Main components od HZS75 concrete mixing plant
No. |
Components |
Main Equipments |
1 |
Mixing System |
JS1500 Twin-shaft Concrete Mixer |
2 |
Aggregate Batching System |
PLD2400 Aggregate Batcher |
3 |
Cement System |
100T Cement Silo |
4 |
Additive System |
1m3 Additive silo |
5 |
Water System |
Water Pump |
6 |
Air System |
Air Compressor |
7 |
Weighing System |
Cement, Water, Additive Weighing Equipments |
8 |
Control System |
Fully-automatic Control Equipments |
Features of Concrete Batching Plant
1. Driving system adopts planetary gear; the gimbals transmission shaft insures circum gyrate at the same speed.
2. With its modularization structure, HZS Series stationary concrete batching plant is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system, which has high efficiency. Scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying. This system is equipped with overvoltage warning and low oil warning, safe and reliable.
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, HZS Series stationary concrete batching plant can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.
