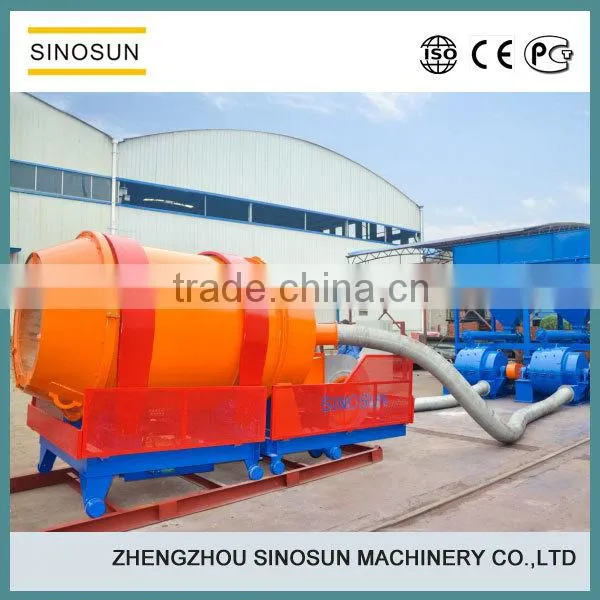

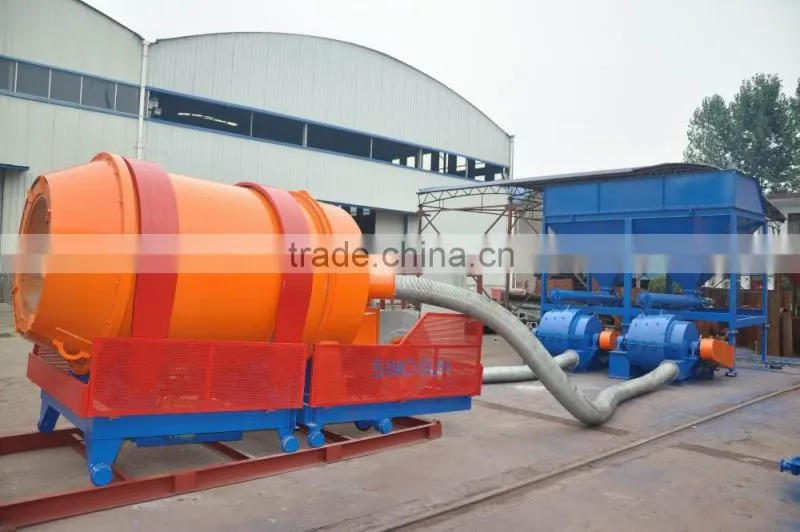

MFR1000 pulverized coal fired burner used for asphalt plant
We specialize in the coal burner for several years, with the strength of research, development and use. With technical innovation and practice, our rotary pulverized coal burner has advanced performance, wide applicable scope and won the national patent. Our coal burners have been used all over the world and the excellent performance widely obtains the customer of the recognition and praise.
Characteristics of SINOSUN coal pulverizer burner

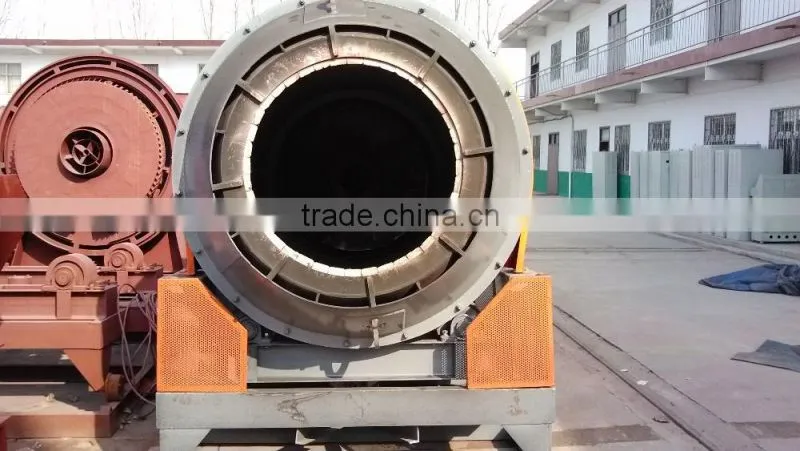

1.Our MFR Coal Burner adopts independent combustion chamber rotating to solve traditional problems such as slagging or burning incompletely.
2.The burner flame temperature is high, which can burn fully and save energy.
3.MFR series coal burner with high performance refractory brick, prolonging the service life.
4.Continuous production, no need slag removal everyday.
5.With low fuel costs and cost-effective.
Parameters of MFR series coal pulverizer burner
Model |
Coal consumption(kg) |
Power(kw) |
Flame diameter(m) |
Flame length(m) |
MFR20 |
180-280 |
21.75 |
0.4 |
0.6-1 |
MFR40 |
370-560 |
32.75 |
0.7 |
1-1.7 |
MFR60 |
560-840 |
32.75 |
0.8 |
1.4-2 |
MFR80 |
720-1120 |
42.75 |
0.8 |
1.4-2 |
MFR120 |
1120-1680 |
67.75 |
1.1 |
1.6-2.7 |
MFR160 |
1490-2240 |
81.75 |
1.1 |
1.6-2.7 |
MFR200 |
1850-2800 |
106.75 |
1.2 |
1.8-3 |
MFR240 |
2240-3360 |
140.65 |
1.2 |
1.8-3 |
MFR320 |
2980-4480 |
197.15 |
1.3 |
2-3.2 |
MFR400 |
3730-5600 |
257.15 |
1.3 |
2-3.5 |
Operating of main components
Item |
Control mode |
Remark |
Ignition |
Manual / automatic |
control cabinet operation |
Burner rotation |
motor-driven |
control cabinet operation |
Burner moving back and forth |
motor-driven |
control cabinet /local operating |
Igniter moving |
motor-driven |
control cabinet operation |
Air damper adjustment |
motor-driven |
control cabinet operation |
Temperature control adjustment |
automatic |
control cabinet operation |
Combustion monitoring |
automatic/flame failure warning device |
control cabinet operation |
Coal supply adjustment |
frequency conversion |
control cabinet operation |
Automatic coal supply |
optional |
|
After years of use and continuous improvement, our coal burner is suitable for various kinds of coal quality. The requirement of coal quality is lower. Even the coal quality is not good, it can get good combustion.
The coal burner is one of the important components of asphalt mixing plant. Our coal burner with advantages of complete combustion, high heat utilization rate, high efficiency and energy saving etc., MFR series Coal Burner is warmly welcomed by the customers.
SINOSUN is one of China’s dominant manufacturers and exporters of Precisioned Asphalt Batch Mix Plants and related asphalt batching plant parts.
For over years, SINOSUN has supplied the asphalt industry with high quality asphalt batching plant parts and equipments.
SINOSUN's asphalt solutions including asphalt batching plants are cost effective, user friendly, easy to maintain and strong after - sales services. SINOSUN is equipped with most modern and mature factory setup to produce high quality asphalt batching plant.
Due to the diverse product range and sufficient production capacity, SINOSUN could be able to meet various needs of our customers.
We mainly supply:
1.Stationary asphalt batching plant (SAP series)
2.Mobile asphalt mixing plant ( MAP series)
3.Twin-shaft asphalt mixing plant (QLB series)
4.Twin-drum asphalt mixing plant (SLB series)
5.Continuous asphalt mixing plant (CAP series)
Our asphalt plants have been widely used in home and abroad road construction project, such as Russia, Romania , Poland , Brazil , Philippines , Indonesia etc. In Africa , we have exported to Ethiopia , Angola , Algeria and Libya.
