1.For continious vacuum sealing with large capacity2.high quality and reasonable
3.good packing appearance

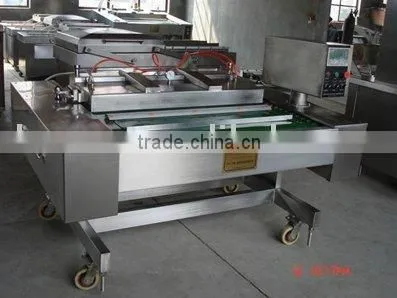

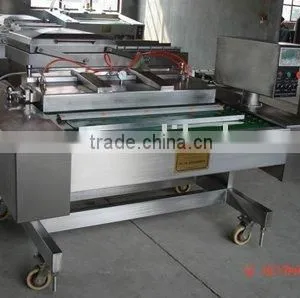

Continuous vacuum Sealer Model MDZ-800
Specification:
| 1) Vacuum chamber | 1120mm*55mm*95mm (L*W*H) |
| 2) Vacuum pump | BUSCH vacuum pump |
| 3) Ultimate vacuum | 45Pa |
| 4) Total power | 6.3KW (200 pumps) / 7.5KW (220 pumps) |
| 5) Power supply system | AC380V 50/60 Hz 3Phase |
| 6) Applications |
a) Vegetables b) Meat product c) Potherb d) Bean product e) Condiments f) Marine/Aquatic product |
Customized according to the customer request is also allowed.
Feature
1. We could make machine as customer special design requirements
2. Material: stainless steel construction with shot blasting
3.Control system: Mitsubishi PLC with touch screen,
Schneider contactor, Coel stepping driver, Sensor switch
4. Vacuum system: The machine could multilevel vacuum operation
for the packing requirements, especially for the products with some water
5) The sensor system could monitor the operation and fault alarm
6) The adjustable working platform: working platform adjustable scope
From 0~30 with 5 angle option and easy for cleaning
7) The vacuum chamber covers material: Stainless steel
Call/email now for a quick response to your application questions.
