CE ISO mobile/stationary used concrete batch plants
I.Description of concrete batching plant machinery
HZS series of Concrete Mixing Plant is developed by our company on the basis of adopting the world's sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.

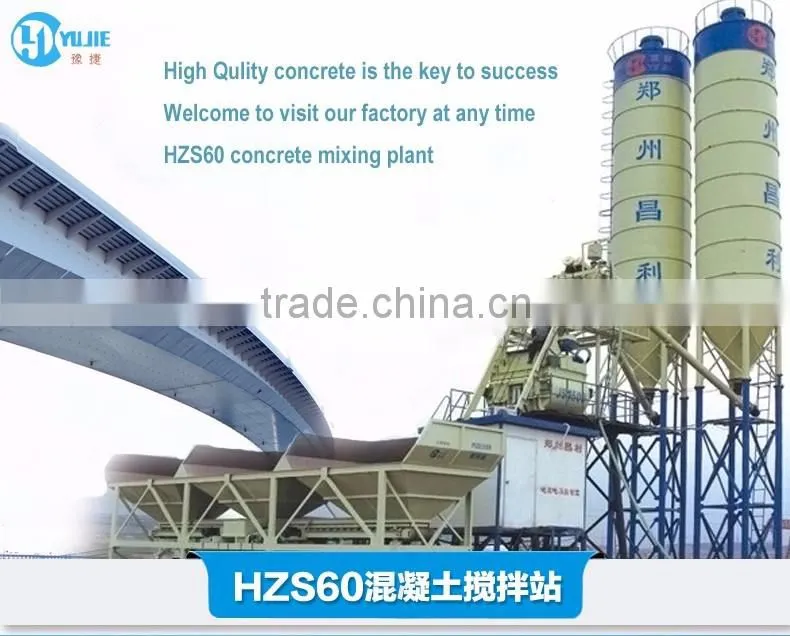

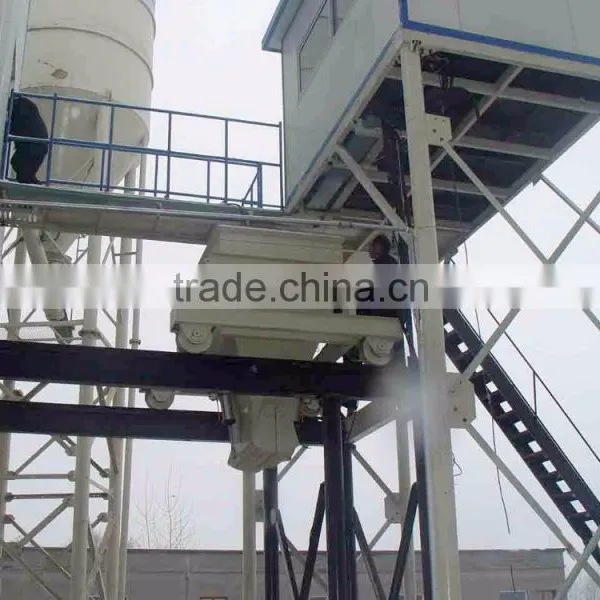

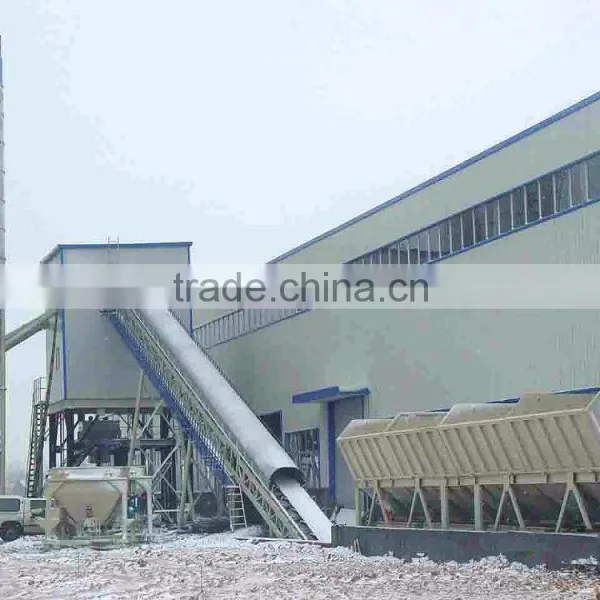

Main Parts of HZS60 Concrete Mixing Plant:
1. twin shaft concrete Mixer JS1000
2. aggregate batcher PLD1600 with 3 storage bins;
3. cement silo: 100T boltd type (it depends on the customer's choice);
4. screw conveyor: 273mm*8m
5. cement, water, fly ash and additive scales;
6. computer controlled automatic control system.
Specification:
Technical Parameter | ||||
Item |
Unit |
Parameter |
||
Max. Productivity |
m3/h |
60 |
||
Nominal Capacity of Mixer |
m3 |
1 |
||
Aggregate Storage Capacity |
m3 |
3×12 |
||
Rated Delivery Volume of Screw Conveyor |
t/h |
35 |
||
Capacity of Cement silo |
t |
2×100 |
||
Mixing Motor Power |
kw |
37 |
||
Lifting Motor Power |
kw |
15 |
||
Power of Machine |
kw |
100 |
||
Weight of Machine |
t |
50 |
||
Discharge Height |
m |
3.8 |
||
Overall Dimension ( L×W×H) |
m |
30×10×19.4 |
||
Max. Weights |
Aggregate |
kg |
3000 |
|
Cement |
kg |
600 |
||
Water |
kg |
250 |
||
Additive |
kg |
250 |
||
Measuring Accuracy |
Aggregate |
% |
±2 |
|
Powder |
% |
±1 |
||
Water |
% |
±1 |
||
Additive |
% |
±1 |
||
1. Packaging
A. Five 40HQ containers will be needed;
B. A wooden-box with the size of 60cm*60cm*60cm will be used for small items like bolt, nult, screw etc.

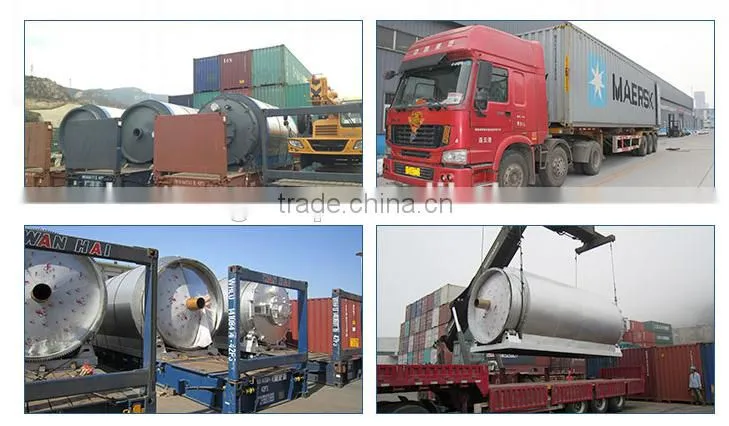

2. Shipping
A. by sea or by train; we have rich experience of shipping by sea or by train;
We have the following services:
1. installation, debugging, operators trainning;
2. maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete plants;
D. If needed, we will send engineers to your site to solve your problems.
2. providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
3. spare parts supply;
Information
1.Set up: in 1982 year
2.Covering space:more than 90,000m², floor area around 50,000 m²
3.Capital Assets:36 Million
4.Personnel:almost 2,300 person;including engineers (56), professional technicians skill (190), administrators (120), skill workers (900), sales, and service personnels.
5.Ever exported to which countries:Our products has been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan, Sir Lanka, Malaysia,
Philippine, Indonesia, Japan, India, Iran, Saudi Arabia, Ukraine, Australia, America, Argentina, Chili, Paraguay, Egypt, Morocco, Botswana, Algeria, South Africa, Kenya, Tunisia,
Mozambique, Yemen, Ethiopia, Nigeria, Ghana, etc, more than thirty countries and areas.
We have the following concrete plants:
A. stationary concrete mixing plant: HZS25 (25m3/h); HZS35 (35m3/h); HZS50 (50m3/h); HZS60 (60m3/h); HZS75 (75m3/h); HZS90 (90m3/h); HZS120 (120m3/h); HZS180 (180m3/h); HZS240 (240m3/h);
B. mobile concrete mixing plant: YHZS25 (25m3/h); YHZS35 (35m3/h); YHZS50 (50m3/h); YHZS75 (75m3/h); YHZS100 (100m3/h)
Our Advantages:
Our Factory view
