Material:Steel
Min.Order Quantity:1 Set/Sets
Port:Qingdao
Packaging Details:standard packing or as requet
Delivery Detail:Shipped in 15 days after payment
precast concrete plants HZS25 for sale,automatic concrete batch plant with bv certification
Product Description
Main parts of HZS25 concrete plant:
1. JS500 twin-shaft concrete mier;
2. PLD800 aggregate batcher;
3. welding type 50T or bolted type 100T cement silo;
4. Screw conveyor 219mm*8m;
5. water, cement and additive scales;
6. Air compressor;
7. Fully automatic computer control system with Omron PLC.
Specification of HZS25 concrete plant:
Item |
Parameter |
Ma. Productivity |
25 m3/h |
Nominal capacity of mier |
0.5 m3 |
Ma Weighing Value of aggregate |
1500kg |
Ma Weighing Value of cement |
300kg |
Ma Weighing Value of water |
150kg |
Ma Weighing Value of additive |
40kg |
Rating transport capacity of screw conveyor |
35 |
Capacity of Cement Cabin |
50t |
Miing Power |
18.5kw |
Hoist Power |
5.5kw |
Power of Machine |
60kw |
Weight of Machine |
25t |
Outline Dimension(LWH) |
15814(m) |
Discharge Height |
3.8m |
Aggregate measuring accuracy |
2 % |
Water measuring accuracy |
1 % |
Cement measuring accuracy |
1 % |
Additive measuring accuracy |
1 % |
Drawing of HZS25
Miing system
Batching system

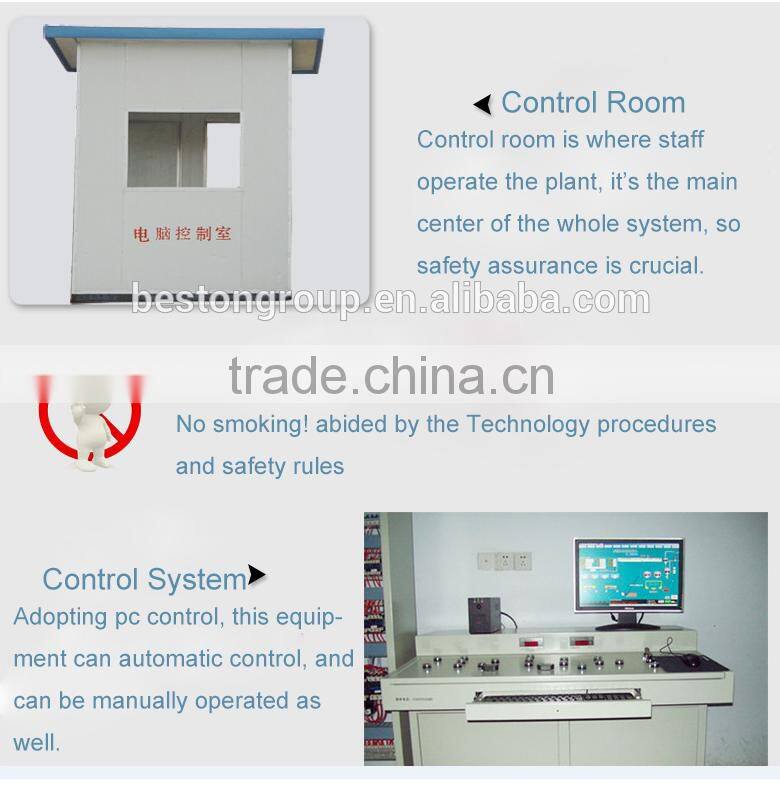

Control system
Weighing system
- Delivery time- It will be 30 days after we receive the deposit.
- 24 hours online service.
- One year warranty from the date of receiving. The warranty equipment within warranty time, facilities failure is freely repaired or replaced by our company.
- According to users’ needs, after deliver equipment, we can send technical personnel to train operation, maintenance.
- After the expiration, seller provide spare parts at cost price.
- Seller provide free lifetime technical services.
- Whether it is within the warranty period, once receiving a notification service, maintenance personnel to reach the user site in 48 hours.
- Regular visits, listen to users’ comments and suggestions on the service quality and product quality.
Q1. How long do you think your concrete mier can stand up?
A1. The miing blades can mi 30000 sessions and the lining board can stand up for 50000 sessions.
Q2. How many motors for PLD800 Batching Machine? How much power for each?
A2. For PLD800-III, there are four motors in total at 4KW each.
Q3. Do you manufacture detachable / bolted type 50 ton cement silos? How much grade/tensile for the bolts?
A3. Yes we do. The bolts grade/tensile is 8.8.
Q4. Can we put our logo on the machine?
A4. Yes, it is available. LOGO and color are usually as per customer's requirement.
