specifications
Grade list
| Grade | Performance | Performance&application recommended | ||
| Density | Bending strength | Hardness | ||
| g/cm3 | N/mm2 | HRA | ||
| YG4C | 15.1 | 1800 | 90 | Mainly used as small button for percussion bits to cut soft and medium hard formations. |
| YG6 | 14.95 | 1900 | 90.5 | For coring crowns, electric coal drill bits, coal cutting picks,oil cone bits and scraping knife bits,used in geological prospecting,coal minig and oil well boring. |
| YG8 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron,non-ferrous metal,non metal materials,drawing of steel,non-ferrous metal and pipes,various drills for geology use,tools for machine manufacture and wearing parts. |
| YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and medium sized percussion bits and so on. |
| YG8C | 14.8 | 2400 | 88.5 | The inserts of rotary prospecting bits to cut safe and medium hard formation. |
| YK15 | 14.6 | 2450 | 87.6 | Suitable to strips,conical buttons for rotary percussion-resistant,geological prospection buttons, cut soft and medium hard formation. |
| YK20 | 14.4 | 2500 | 86.8 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations. |
Advantages of our carbide button bits
1.Made from 100% virgin raw material.
2.Produced with advance equipments and process.
3.Every carbide road tips goes through in-process and final inspection.
4.Stable and continuous production ability.
5.Quality and quantity assured
6. In standand/non-standand types

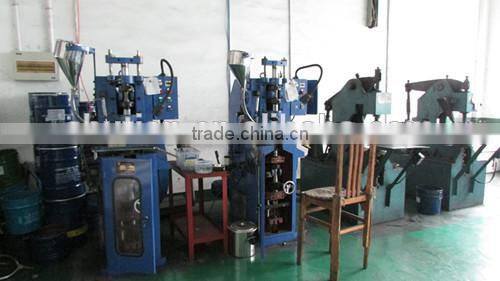

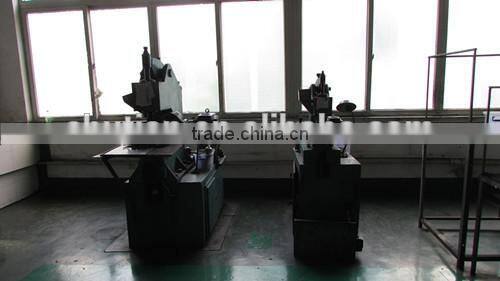

advanced and well-equiped workshop
packing information
Brief introduction
Zhuzhou Chutian Cemented Carbide Co.,Ltd. is a hightech enterprise of manufacturing cemented carbide products, which was established in May 2005 by Ms. Tang, the general manager who has been engaged in this area for more than 20 years.The company has passed ISO9001:2000 quality guarantee system, providing cemented carbide products and technical service with high quality to our customer.
Our products mainly include disc cutters, tungsten carbide rods, strip & plates, dies, milling inserts, mining tools, micrometer chips, crushed carbide grain, non magnetic alloy, heavy alloy, cast tungsten carbide powder, chromium carbide, welding rods and so on, widely used in mould, machine, mine, petrochemical and IT industry.
Zhuzhou Chutian Cemented Carbide Co., Ltd is the first one stop carbide material and wear-resistant material supplier in China. We insist on making new products, special products,and reliable products,we integrate the resources of carbide industry to meet our customer's special order requirement. If you have any interested in any product or have any question about it,please feel free to contact us
