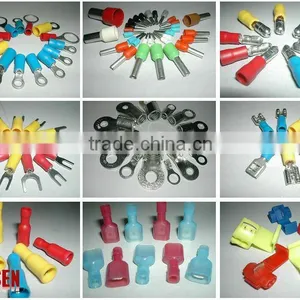

Insulated Terminal(insulated Female Terminal,insulated Ring Terminal,sleeve Insulation Terminal)
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LEDISEN
Model Number:
IN
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NON-INSULATED CORD END TERMINALSNegotiableMOQ: 1000 Pieces -
Insulated Pin Terminal,terminalNegotiableMOQ: 1000 Pieces
-
FULLY INSULATED FEMALE TERMINALNegotiableMOQ: 1000 Pieces
-
Non-Insulated Pin Terminal(Cable Terminal,terminal Connector)NegotiableMOQ: 1000 Pieces
-
Faston Terminal DJ624-2.8A (insulated Terminal,electrical Terminal)NegotiableMOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
LEDISEN
Model Number
IN
Type
Other, Insulated terminal Type
Specifications
Insulated Terminal(insulated female terminal,insulated ring terminal,sleeve insulation terminal)CE ApprovalMaterial: Redcopper
Insulated Terminal(insulated female terminal,insulated ring terminal,sleeve insulation terminal)Specifications:
Lead section: 0.51.5mm2(2216) Max current: =9A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV1.25-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| RV1.25-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | |||
| RV1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| RV1.25-3.5 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| RV1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| RV1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| RV1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| RV1.25-6 | 1/4 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| RV1.25-8 | 5/16 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| RV1.25-10 | 3/8 | 6.5mm | 12.0 | 21.2 | 11.0 |
Lead section: 1.52.5mm2(1614) Max current: =27A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV2-3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue |
| RV2-3.5 | #6 | 3.7mm | 6.6 | 17.8 | 4.3 | |||
| RV2-3.5 | #6 | 3.7mm | 6.6 | 21.0 | 7.0 | |||
| RV2-3.5 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-4 | #8 | 4.3mm | 6.6 | 21.0 | 7.0 | |||
| RV2-4 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5 | #10 | 5.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5 | #10 | 5.3mm | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1/4 | 6.5mm | 12.0 | 27.6 | 11.0 | |||
| RV2-8 | 5/16 | 8.4mm | 12.0 | 27.6 | 11.0 | |||
| RV2-8 | 3/8 | 10.5mm | 13.6 | 30.2 | 13.9 |
Lead section: 2.54mm2(1412) Max current: =37A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV3.5-4 | #8 | 4.3mm | 8.0 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
| RV3.5-5 | #10 | 5.3mm | 8.0 | 24.6 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3mm | 12.0 | 27.9 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.5mm | 12.0 | 27.9 | 7.7 |
Lead section: 46mm2(1210) Max current: =48A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV5.5-3.5 | #6 | 3.7mm | 7.2 |
21.4 |
5.9 |
12.5 | 6.7 | Yellow |
| RV5.5-4 | #8 | 4.3mm | 7.2 |
21.5 |
5.9 |
|||
| RV5.5-4 | #8 | 4.3mm | 9.5 |
25.5 |
8.3 |
|||
| RV5.5-5 | #10 | 5.3mm | 9.5 |
25.5 |
8.3 | |||
| RV5.5-6 | 1/4 | 6.5mm | 12.0 |
31.5 |
13.0 | |||
| RV5.5-8 | 5/16 | 8.4mm | 15.0 |
33.7 |
13.0 | |||
| RV5.5-10 | 3/8 | 10.5mm | 15.0 | 33.7 | 13.7 | |||
| RV5.5-12 | 1/2 | 13.0mm | 19.2 | 38.1 | 16.0 |
