Specifications
304 Stainless steel distribution box,Metal Enclosure IP65The surface plated with epoxy resin coating is beautiful and durable

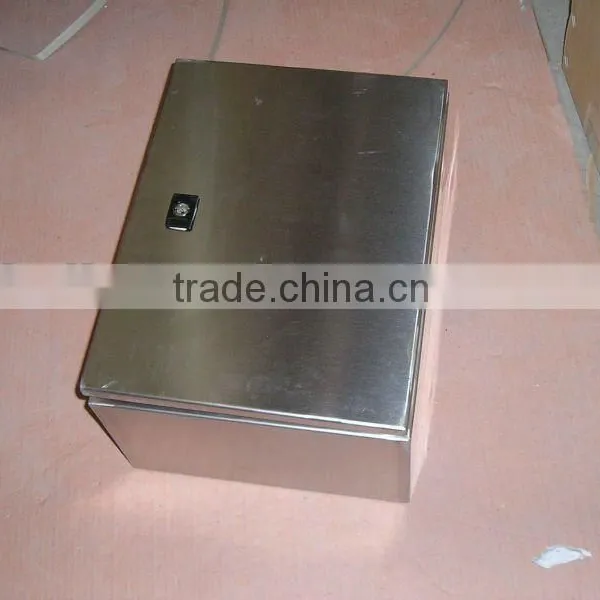

304 Stainless steel distribution box,Metal Enclosure IP65
There is seamed rubber bar in the V type box body in order to protect from the dust and rain water
There is equipped with knockouts seamed with the cover on the upside and downside of the box body
There is installation motherboard with electrical equipment inside of the box
The motion of the door is more than 90 degree and is flexible to turn
Constructions:
Body and door manufactured in 1.0 to 2.5mm sheet steel and prefect plastic powder coating
Flat mounting plate in 1.5 to 3.0mm sheet steel and white iron coating
Package with hardware for earth connection and screws to mount all components
These Metal Enclosures
Protection Grade: IP65 Standard
The surface plated with epoxy resin coating is beautiful and durable
There are two metal locks in the door, it is much safer.
There is seamed rubber bar in the V type box body in order to protect from the dust and rain water
There is equipped with knockouts seamed with the cover on the upside and downside of the box body
There is installation motherboard with electrical equipment inside of the box
The motion of the door is more than 90 degree and is flexible to turn
Constructions:
Body and door manufactured in 1.0 to 2.5mm sheet steel and prefect plastic powder coating
Flat mounting plate in 1.5 to 3.0mm sheet steel and white iron coating
Package with hardware for earth connection and screws to mount all components
Size/Model A×B×C/mm
JXF2215 200×200×150
JXF2215 250×200×150
JXF2315 300×200×150
JXF2320 300×200×200
JXF3320 300×300×200
JXF3325 300×300×250
JXF3415 400×300×150
JXF3420 400×300×200
JXF3430 400×300×300
JXF4415 400×400×150
JXF4420 400×400×200
JXF4425 400×400×250
JXF4430 400×400×300
JXF3515 500×300×150
JXF3520 500×300×200
JXF3525 500×300×250
JXF3530 500×300×300
JXF4515 500×400×150
JXF4520 500×400×200
JXF4525 500×400×250
JXF4530 500×400×300
JXF5515 500×500×150
JXF5530 500×500×300
JXF4615 600×400×150
JXF4620 600×400×200
JXF4630 600×400×300
JXF5620 600×500×200
JXF6615 600×600×150
JXF6620 600×600×200
JXF5720 700×500×200
JXF5725 700×500×250
JXF6720 700×600×200
JXF6820 800×600×200
JXF8820 800×800×200
JXF8830 800×800×300
JXF6 1020 1000×600×200
JXF6 1025 1000×600×350
JXF6 1030 1000×600×300
JXF8 1020 1000×800×200
JXF10 1025 1000×1000×250
JXF10 1030 1000×1000×300
JXF6 1220 1000×600×200
JXF8 1220 1000×800×200
JXF6 1430 1400×600×300
JXF8 1430 1400×800×300
JXF8 1630 1600×800×300
JXF10 1630 1600×1000×300
JXF10 1830 1800×1000×300
