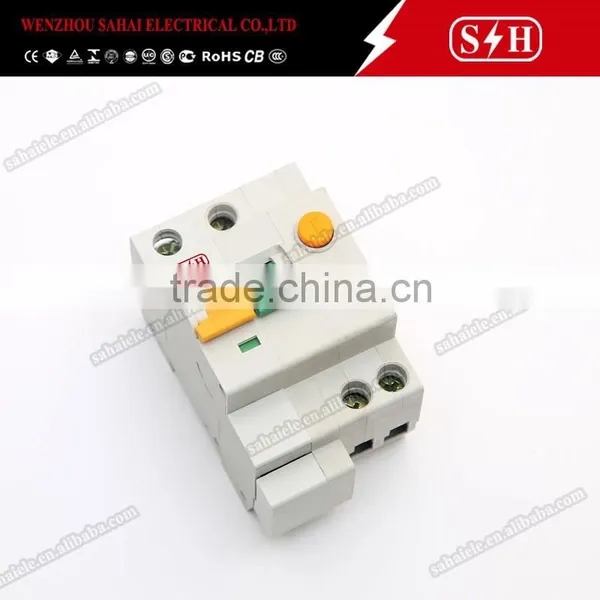

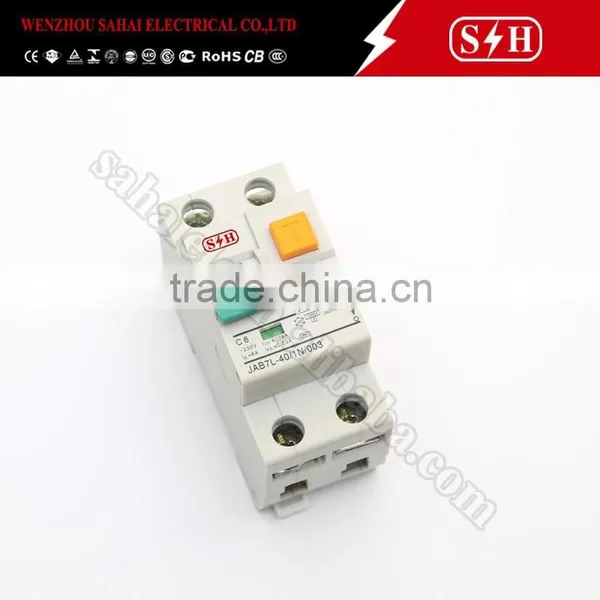

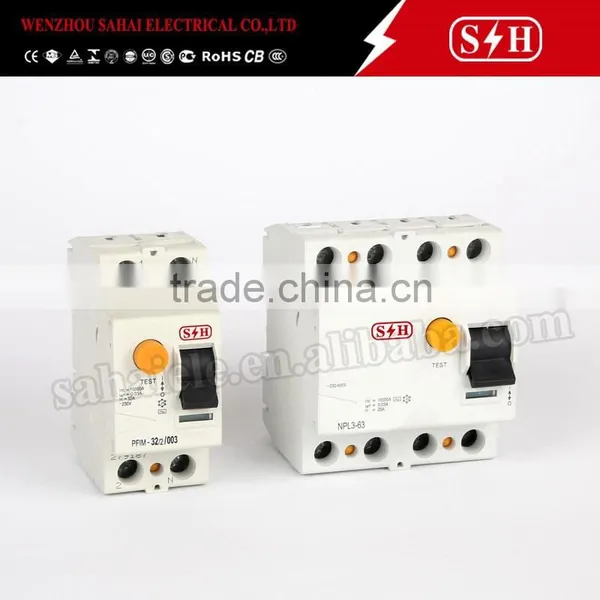

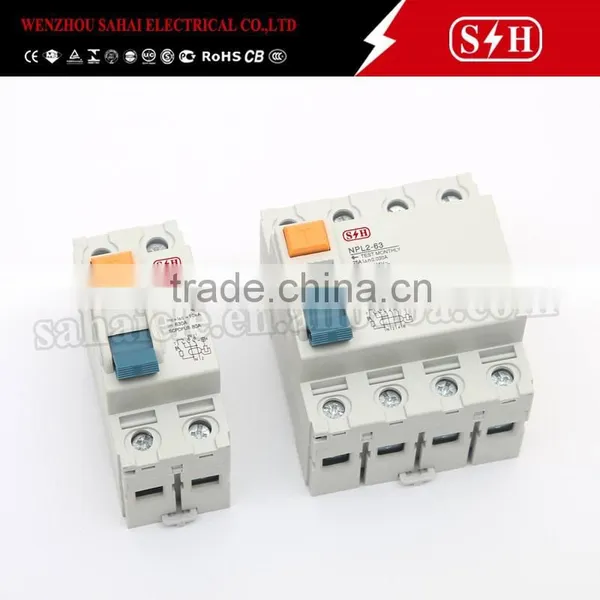

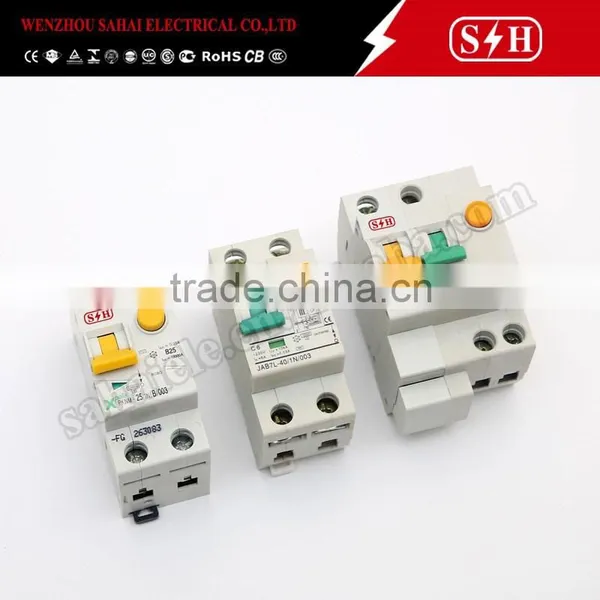

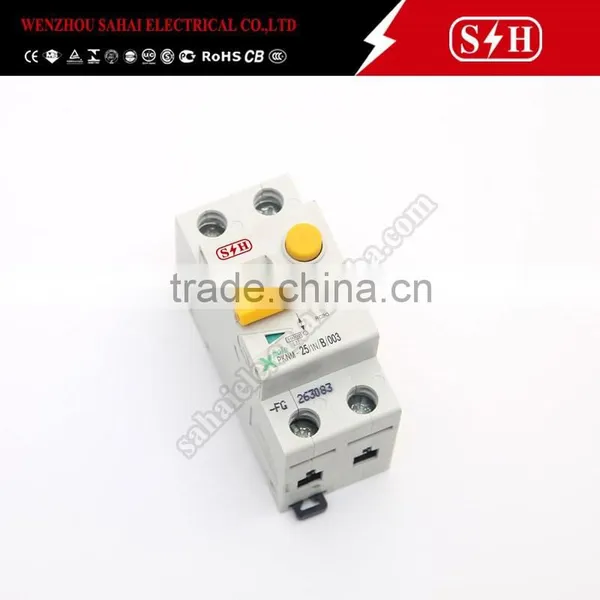

Europe Design PFIM PKIM Residual Current Circuit Breaker 2P 4P RCD 30mA RCCB

Name: Europe Design PFIM PKIM Residual Current Circuit Breaker 2P 4P RCD 30mA RCCB
Brand: SAHAI or OEM
SKU: 103193645

US$ 3 - 9 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

SAHAI or OEM

Model Number:

PFIM PKIM

Wenzhou Sahai Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO.SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name SAHAI or OEM

Model Number PFIM PKIM

Type Residual Current

Poles Number Other, 2P,4P

Specifications

1.CE Approved
2.Professional OEM & ODM Service
3.Customization
4.Fast Delivery
5.10 years of production & export

Feature:

1. Provides protection against earth fault/leakage current and function of isolation.

2. High short-circuit current withstand capacity.

3. Applicable to terminal and pin/fork type busbar connection.

4. Equipped with finger protected connection terminals.

5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.

6. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Tech Parameters:

Model	Electro-magnetic type, electronic type
Residual current characteristics	A, AC
Pole No.	2, 4
Rated making and breaking capacity	630A
Rated current(A)	25, 40, 63, 80, 100
Rated voltage	240/415V AC
Rated frequency	50/60Hz
Rated residual operating current IΔn(mA)	10, 30, 100, 300, 500
Rated residual non operating current IΔno	0.5IΔn
Rated conditional breaking current Inc	6000A
Rated conditional residual breaking current IΔc	6000A
Tripping duration	Instantaneous tripping≤0.1s
Residual tripping current range	0.5IΔn~IΔn
Electro-mechanical endurance	4000 cycles
Connection capacity	Rigid conductor up to 25mm2
Connection terminal	Pillar terminal with clamp
Fastening torque	2.0 Nm
Installation	On symmetrical DIN rail 35mm
	Panel mounting
Standard	IEC61008/EN61008
