Home > Products > Pro Scooters with Extruded Bridge > 2015 Awesome Kids Pro Scooters Factory Promotion

2015 Awesome Kids Pro Scooters Factory Promotion

FOB Price

USD $49.9 - $99.9 / Piece

4 Pieces(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port Hong Kong
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Rayland, Alishan
Model Number	RL-CS23	Wheel Material	High rebound PU with metal core
Wheel Number	2	Body Material	Aircraft grade aluminum
Age	Child	Color	Gold

Product Description

MOQ	1 pcs is available , can ship from USA
Category	Complete scooters
Type	high end entry level beginner scooters
Brand	Alishan scooters, Beetholee Scooters, Rayland Scooters
Stucture	Non-folding
Weight	3.10 kg(6.84 lbs)
Welding	TIG welding
Heat treatment	T4 and T6
Finish	Anodizing or powder coating or neo chrome plating
Compression compatiblity	HIC,SCS,ICS
Deck material	aircraft grade aluminum 6061-T6
Deck width	110 mm (4.33 inch)
Deck length	520 mm (20.47 inch)
Fork material	aircraft grade aluminum 6061-T6
Fork processing	one piece precision CNC machining
Clamp material	aircraft grade aluminum 6061-T6
Clamp processing	one piece precision CNC machining
Bar material	aircraft grade aluminum 6061-T6
Bar width	500 mm ( 19.69 inch)
Bar height	590 mm (23.23 inch)
Bar back sweep	0 °

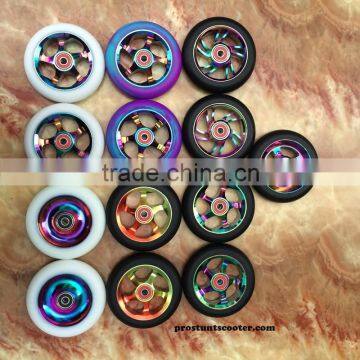

Wheel material	high rebound poly urethane wheel with metal core
Wheel diameter	110 mm ( 4.33 inch)
Wheel width	24 mm (0.945 inch)
Wheel durometer	88 A
Bearing rating	Abec-9
Headset compatibility	reinforce standard headset
Headtube angle	82.5 °
Brake	Stainless steel 304, flex brake
Loading weight	100 kg Max.(220.50 lbs)
Certificate	EN14619, CE, SGS
Delivery time	3-45 days
OEM & ODM service	all available

Packaging & Shipping

Small orders: neutral packaging ; big orders : as per the customers' requirement

retail box: 1 piece, 670*120*570(mm;

carton: 4 pieces, 850*590*260(mm);

20 ft FCL: 800 piece

40 ft FCL: 1536 pieces;

40 ft HQ FCL: 2160 pieces

We can ship pro scooters and scooter parts to you by air ,by sea from China.

And we can ship pro scooters and scooter parts to you from USA, too . As we have a warehouse and an office in USA .

1,retail packaing

2,Stock in the warehouse

3,loading and shipping

Our Services

1,We can reply to your questions within 24 hours (Including holidays).

2. Our customer service personnel are not only fluent in English,

And also have professional knowledge of pro scooters.

3. We have an office in USA and a warehouse in USA.

4. 10 years of CNC machining experience;

5 years of pro scooters & scooter parts manufacturing experience;

5. OEM & ODM , any your customized lightings, we can help you

design and put into product ;

6. Design and improve your scooters as per your ideal or proposal

7. Protection of your sales area, ideas of design and all your private information

Company Information

We have been enaged in precision CNC machining since 2000. And we started to produce scooter parts and pro scooters since 2009 .We have our own R&D team . Some engineers are from Razor scooters & MGP scooters' supplier . And we have an office and a warehouse in USA.

1.Rayland Factory Gate

2,Rayland Workshop

3. Pro Scooters Production Flow Pictures

4. Pro Scooters and Scooter Parts Pictures

5.Pro Scooters Inspection and test

6. The customer and we are reviewing pro scooter decks together

7. Stock and Loading ,Shipping Pro Scooters

8. Our Team

FAQ

Frequently Asked Questions

Q1: Is there any warranty on the scooters ?

We are dedicated to manufacturing the highest quality pro scooters and scooter parts available at each price level. We strive to deliver a product that is free free of defects in material and workmanship.

Our pro scooters & scooter parts are inspected & tested strictly at our factory.Also, our pro scooters & scooter parts are tested by professional riders abroad.

What is covered under warranty ?

---Snapping,bending, and cracking

--- Manufacturing defects

Scooter Decks

Scooter Decks come with a 6 month warranty

What's covered

---Snapping ,or Visible Cracking,Bending

---Function of the deck

---Manufacturing defects

Handle Bars

Handle Bars come with a 1 year warranty .

What's covered

---Breaking, visible cracking, and bending

---Manufacturing defect

Metal core Wheels

Wheels come with a 6 month warranty

What's covered

---Dehubbing(PU coming detached from the core)

---Chunking(Occurs when a chunk of the PU becomes detached from the core)

---Manufacturing defect

Scooter Forks

Scooter Forks comes with a 12 month warranty

---Breaking or Bending (excep axles)

---Manufacturing defects

Scooter Clamps

Clamps come with a 6 month warranty

What's covered

---Braking, Visibla cracking, and bending

---Manufacturing defects

Scooter Brakes

Brakes come with a 6 month warranty

What's covered

--Breaking, Visible, Cracking

--Manufacturing defects

What's NOT covered

--- Damage caused by imporper use and /or abuse

---Altering the structure (i.e., drilling holes)

---Scratches or grinding to the anodizing

---Any modification

---Stripping and cross theading the threads;

---Scratches or grinding to the powder coating

---Stripping or cross threading of the integrated clamps

Q2 : Can you make our logos on the scooters ?

--- If your order qty is over 100 pcs , we can make your logos on the grip tape, laser etching your logos on scooter fork & scooter bars , and so on .With regard to the package ,

we advise that it is more economic to adapt the neutral packaging .

---If your order qty is less than 100 pcs , we advise that you could choose our current logos &

neutral package .It will add some extra cost to make your logos .

Q3: Can you do OEM pro scooters & scooter parts ?

-------- We can produce OEM pro scooters & scooter parts as per your drawings or samples .Our R&D team can help you complete these job. Our engineers are from Razor scooters & MGP scooters' Manufacturing factories. Our team has rich experience in pro scooters industry .

Q4: How do you ensure the customer’s design exclusive ?

---Firstly , we shall sign NDA with you before cooperation.

---We guarantee that we won’t upload your product to our website .

---We won’t put your product in our sample room.

---We won’t reveal your information about your drawings & designs.

Q5:How do you ensure the quality ?

----- We perform inspection and test as per ISO 9001:2008

-----Each scooter fork , scooter bar ,scooter deck , scooter clamp, scooter wheel, scooter brake,

we shall test the strength before mass production at our factory . Also ,we shall ship complete scooter

samples to our customer for testing .

---OEM orders , we shall ship 1 pcs sample to our customer. The sample will be tested by professional riders.

Q6: How do you guarantee the welding ?

--- We use TIG welding . Our welding workers worked in bicycle factory before they came to our factory .

Our welding workers are very silled in welding , with at least 5 years of welding .

Q7: How do you guarantee the deck not deformed ?

----- After T4, our QC will correct each deck by mold, then do T6 heat treatment .

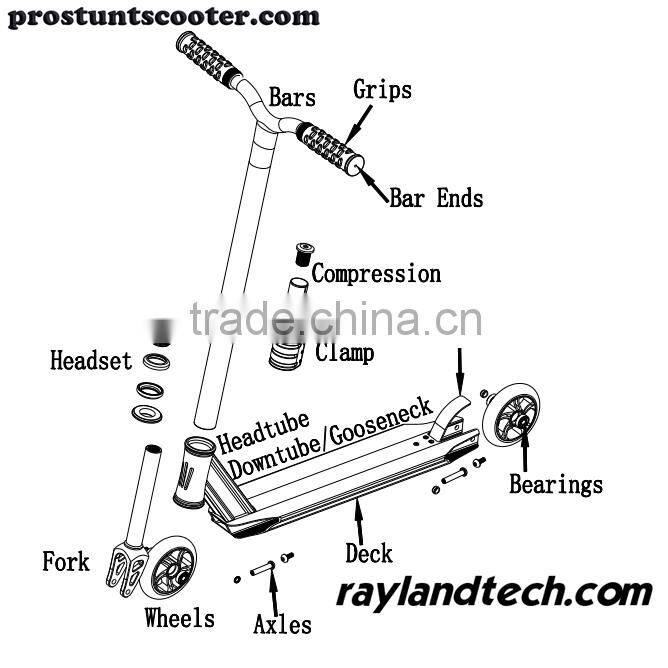

Q8:Do you know these Glossary of Scooter Terms ?

Do you know what " pegs" means ? "SCS compression " ?"integrated headset"?"Oversized "?TIG welding"?Pro Scooters are made of parts with names that not all of us understand. We try to explain the most commonly heard terms from the pro scooter industry below. If you still have questions , please do not hesitate to contact us before placing your orders . We will be glad to help you select the correct parts for your pro scooters.

No.	Terms	Explanation
1	Deck	The base of the scooter in which all parts attach to
2	Integrated Pro Scooter Decks	Integrated pro scooter decks have headset cups integrated in the headtube and have the same color and texture. This makes it easy to install the scooter headset without special tools. Integrated pro scooter decks are ONLY compatible with threadless scooter forks.
3	Deck Width	The width of the pro scooter deck is important to feel comfortable riding your freestyle scooter.
4	Deck Length	The length of the pro scooter deck is important for the stability of the freestyle scooter.
5	Foot Space	Foot Space is the space between the bottom of the neck and the scooter brake
6	Deck Concave	Concaved pro scooter decks provide more grip for the feet while riding your freestyle scooter and reduce the risk of slipping off.
7	Dropouts	Dropouts is a term from the bicycle industry referring to the back part of the pro scooter deck where the rear axle holds the rear scooter wheel onto the deck.
8	Standard pro scooter decks	Standard pro scooter decks are for standard/conventional threaded or threadless scooter headsets with headset cups pressed in the head tube using a headset press. The cups are easily recognizable as they will have a different color and texture then the head tube. Standard pro scooter decks are compatible with both threaded and threadless scooter forks.
9	Headtube	Attached to the base ,its purpose is to hold the headset bars and fork
10	Headtube Angle	The head tube angle determines how steep your bar will be on the pro scooter; the larger the head tube angle, the steeper the bar. A steeper bar makes the scooter feel more roomy because the bar is farther away from the rider. It also makes the scooter steering more direct. Most pro scooter decks have a head tube angle of around 82-83 degrees.
11	Headtube Lenght	The Head Tube Length is important because it determines the compatibility with scooter forks and compression systems.
12	Headset	Is the set of components on a scooter that provides a rotatable interface between the fork and the head tube.
13	Bars	Chromoly tubes in various lengths and widths welded together to create a stylish control device used for steering, spinning and lifting the scooter.
14	Oversized Bars	Common name for a bar with a 1 3/8” down tube, the cross bar is 7/8”
15	Stanard Bars	Common name for a bar with a 1 1/4’ down tube, the cross bar is 7/8”.
16	Backsweep	Is the bending of the cross bar towards the pro scooter rider
17	Gusset	A gusset is a reinforcement that is welded in the corner where the cross bar and the down tube of the pro scooter bar connect.
18	Slit	The slit allows a pro scooter clamp to “squeeze” the down tube around the top of the fork, for a solid connection.
19	Grips	Grips make holding your pro scooter bar more secure and comfortable.
20	Bar End Plugs	Bar End Plugs come with a set of scooter grips.
21	Fork	Component that is inserted into the headset and used to mount the bars and also the front wheel.
22	Threaded Fork	Referring to a type of fork or headset in which a large diameter nut threads on the top tube of fork compressing the headset components to enable proper rotation of the fork in the headset.
23	Threadless Fork	Term referring to a type of fork or headset in which a compression system (ICS, HIC) is need to compress the headset components to enable proper rotation of the fork in the headset.
24	Starnut	A flanged spring steel nut that seats in the fork or bars allowing the connection of a compression system.
25	HIC	Hidden Internal Compression. A shim that is slipped over the top of the fork, a bolt is inseted into the top of the shim,the bolt threads into the starnut contained inside the top tube of the fork, the bolt is tightened to compress the headset components allowing fork rotation.
26	ICS	Inverted Compression System. Uses a 200mm bolt insetered into the base of the fork tube, the bolt then threads into a starnut contained in the base of a standard diameter bar (1 ¼’) enabling proper rotation of the headset components.
27	SCS	Standard Compression System. A one piece bar clamp and compression system, an elongated clamp is slipped over the top tube of the fork, a top cap and bolt is then inserted into the top of the clamp, the bolt threads into the starnut contained inside the top tube of the fork, allowing fork rotation.
28	Clamp	Available in standard and oversize, used on the base of the bars after installing onto the fork the clamp uses bolts to pinch the bars and put pressure on the fork, allowing proper steering control.
29	Wheel	A core surrounded by urethane, common sizes are 100mm and 110mm(Now there are 120mm, 125mm, too).
30	Wheel Bearings	Two bearings that are pressed into the wheels core, one on each side with a spacer in between, the spacer prevents the bearings from being pushed into the wheel core upsetting the proper alignment of the bearings and axle.
31	ABEC	There are 6 classes from largest to smallest tolerances: 1, 3, 5, 7, and 9, the higher the number the greater the speed capabilities.
32	Brake	A foot controlled device bolted to the back of the deck used to control and stop the scooter.
33	Axle	Machined hardware used to install the rear wheel into the deck and the front wheel into the fork.
34	Pegs	Attached to the fork and rear of the deck with longer axles, used to grind and stall on various objects.
35	Deck spacers	Installed on each side of the rear wheel, deck spacers are designed to center the rear wheel in the deck.
36	Grip tape	An abrasive material with an adhesive on the back designed to be installed on the top surface of the deck to give a rider maximum foot control.
37	Complete	Fully built and fully assembled scooter

Q9: Do you know these material terms & processing terms?

1.4130

4130 is an alloy steel that is used to make most pro scooter bars and some scooter forks

2.6061

6061 refers to an aluminum alloy with magnesium and silicon, easy to machine and weld, and strong enough to be used on many pro scooter parts such as scooter decks, scooter forks scooter clamps and wheel hubs.

3.7075

7075 (7000 series) refers to an aluminum alloy with zinc that is stronger than any 6061 aluminum alloy.

4.Forging

Forging is pressing metal in a shape producing a piece that is stronger than an equivalent cast or machined pro scooter part.

5.Anodizing

Anodizing is a process that forms a protective coating of aluminum oxide on the surface of aluminum pro scooter parts.

6.Powder coating

Powder coating is applied as a dry powder that is "baked" on the metal scooter part in an oven.

7.Painting

Painting is similar to powder coating. The main difference between paint and a powder coating is that the powder coating does not require a solvent. Powder coating is used to create a hard finish on your pro scooter parts that is tougher than conventional paint.

8.TIG Welding

TIG welding is a specific type of welding. Without going in to much detail: TIG welds are commonly stronger and higher quality than competing welding processes.

9.T4 and T6 treated

A heat treatment is a method used to alter a material’s physical properties. In other words, by applying a heat treatment you can make a material stronger or weaker.Our scooter decks , aluminum scooter bars ,after welding , we do T4 heat treatment first , and then correct , and then do T6 heat treatment .

Q10:Scooter Wheels:100mm, 110mm, 120mm, 125mm , how should we choose ?

There are 4 different diameter scooter wheels : 100mm,110mm, 120mm, 125mm.Pro scooter riders tell us that larger scooter wheels are faster.Only a few pro scooters brands use 125 mm scooter wheels . For example , Crisp Scooters , VertX Scooters . Envy Scooters use 120mm scooter wheels . More pro scooters brands use 110mm wheels . If your current freestyle scooters use 100mm wheels , you can choose 110mm wheels to replace the old 100 mm wheels . 120 mm & 125 mm scooter wheels are not suitable for your current scooters .

So , you need make clear these details before you update your scooter wheels .
