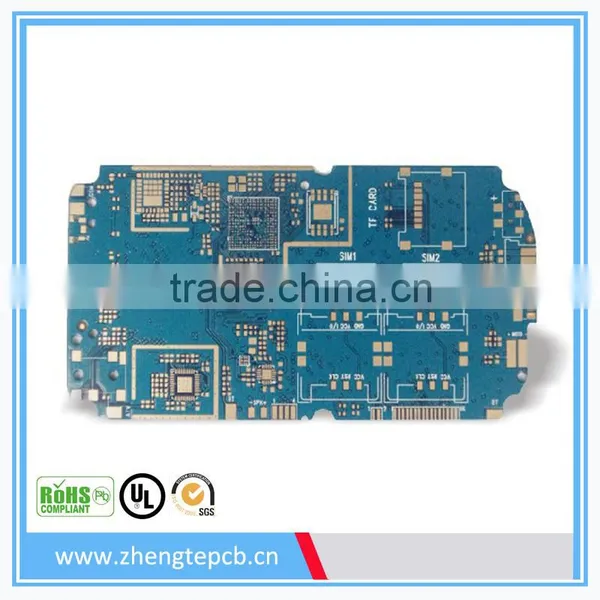

High Quality and fashionable style Assembled electronic inverter Printing Circuit Board (PCB)in Suzhou
- 5500 Square Foot / Square Feet per Month
- Shenzhen
- T/T Credit Card PayPal
-
USB Relay Output Module PCB Board for Home Automation
-
PCB Roger Circuit Board with cheap cost & Fast supply
-
Cheap cost Rogers PCB production , pcb sample
-
Fast Supply Rogers 4350 PCB Circuit Board Prototype and mass pcb production
-
High quality Rogers Printed Circuit board with fast supply , rogers material in stock
-
2 layers Taconic Material PCb /Special material pcb circuit board provided
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | OEM ODM | Model Number: | ZT-B106-12L0131 |
| Number of Layers: | 12-Layer | Base Material: | CEM-3 | Copper Thickness: | 1oz |
| Board Thickness: | 1.6mm-3.2mm | Min. Hole Size: | 0.2mm-6.3mm | Min. Line Width: | Min. Line Width: 3mil (0.075mm) |
| Min. Line Spacing: | 0.1um(3mil) | Surface Finishing: | HASL,Immersion Gold,Immersion Silver,Immersion Tin,OSP... |
Product Description
High Quality and fashionable style Assembled electronic inverter Printing Circuit Board (PCB)in Suzhou
Item | Capability | |
1.Base Material | FR-4 / High TG FR-4 / Lead free Materials (ROHS Compliant) / Halogen Free material /CEM-3/CEM-1/ /PTFE/ROGERS/ARLON/TACONIC | |
2.Layer No. | 1-18 layers | |
3.Finised inner/outer copper thickness | 1-6 OZ | |
4.Finished board thickness | 0.2-7.0 mm | |
Tolerance | Board thickness≤1.0mm: +/-0.1mm 1<Board thickness≤2.0mm: +/-10% Board thickness>2.0mm: +/-8% | |
5.Max panel size | ≤2sidesPCB: 600*1500mm Multilayer PCB: 500*1200mm | |
6.Min conductor line width/spacing | Inner layers: ≥3/3mil Outer layers: ≥3.5/3.5mil | |
7.Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm | |
Drilling precision: first drilling | First drilling: 1mil Second drilling: 4mil | |
8.Warpage | Board thickness≤0.79mm: β≤1.0% 0.80≤Board thickness≤2.4mm: β≤0.7% Board thickness≥2.5mm: β≤0.5% | |
9.Controlled Impedance | +/-5% | |
10.Aspect Ratio | 15:1 | |
11.Min welding ring | 4 mil | |
12.Min solder mask bridge | ≥0.08mm | |
13.Plugging vias capability | 0.2-0.8mm | |
14.Hole tolerance | PTH: +/-3mil NPTH: +/-2mil | |
15.Outline profile | Rout/ V-cut/ Bridge/ Stamp hole | |
16.Surface finished | OSP: 0.5-0.5um HASL: 2-40um Lead free HASL: 2-40um ENIG: Au 1-10U’’ ENEPIG: PB 2-5U’’/ Au 1-8U’’ Immersion Tin:0.8-1.2um Immersion silver: 0.1-1.2um Peelable blue mask Carbon ink Gold plating: Au 1-150U’’ | |
17.E-testing pass percent | 97% pass for the first time,+/-2%(tolerance) | |
FQC-Physical Lab: Reliability tests | ||
18.Certificate | ROHS UL:E327776 ISO9001:2008 IPC SGS | |
Application
Widely used in consumer electronic products, electrical appliances, small household electrical appliances, communication products, automotive, medical equipment and other fields (such as mobile phone, telephone, LED lighting equipment, TV, DVD, computer products and peripherals, game consoles, charger, power adapter, remote control and home appliances).
Details
1. Related Certificate --- UL ,ISO9001:2000 , TS16949, RoHS.
2. 100% electrical test, AOI testing, four times 100% QC inspection beofre shipping.
3. High reliable, Germany equipment ,competitive price andSpeedy delivery.
4. Fast Prototype Service.
5. One stop electronic assembly service(provide prototype, plastic injection molding, part painting,
components purchasing, SMT COB,DIP,PCBA service as one unit).
PCB package way : Vacuum package + desiccant bag
Delivery
Advantage
1.Fast PCB Fabrication for Samples and Mass Production
2.Electronic Components Sourcing Services
3.PCBA Assembly Services:SMT,DIP,BGA...
4.Function Test
5.Stencil and Enclosure Assembly
6.Standard Packing and On time Delivery
1. Company History: Zhengte is a electronic manufacturer specialising in PCB production,PCB assembly ,as well as PCB design .
2. Product Series: Double-side PCB,multilayer PCB,HSAL PCB,ENIG PCB,Aluminum PCB,HDI PCB,Felxible PCB,Rigid PCB,PCBA,Electronics Assembly ,etc.
3. Enterprise Scale: more than 3000 square meters, more than 200 staffs
4. Certificates: RoHS, ISO9001: 2008 , ISO14001:2004,TS16949,UL etc.
