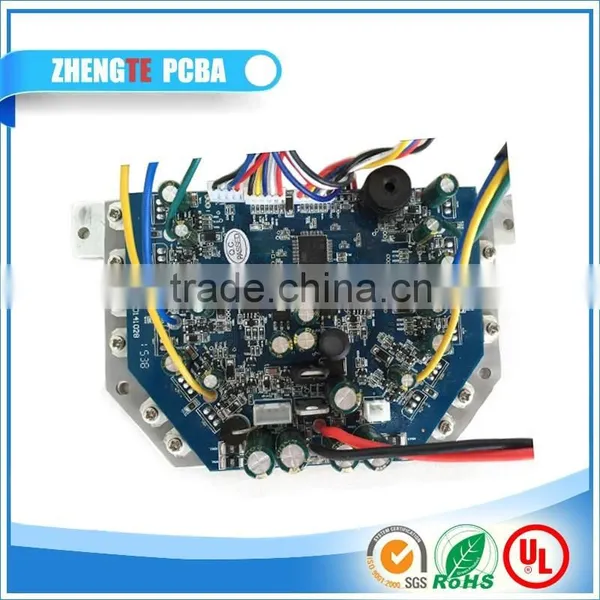

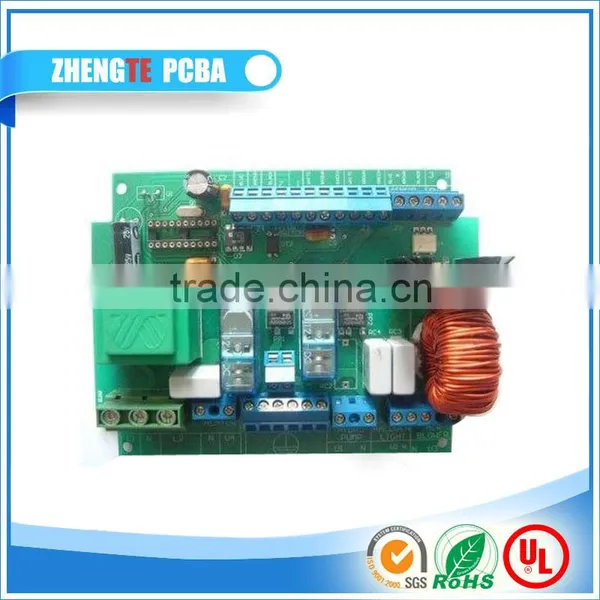

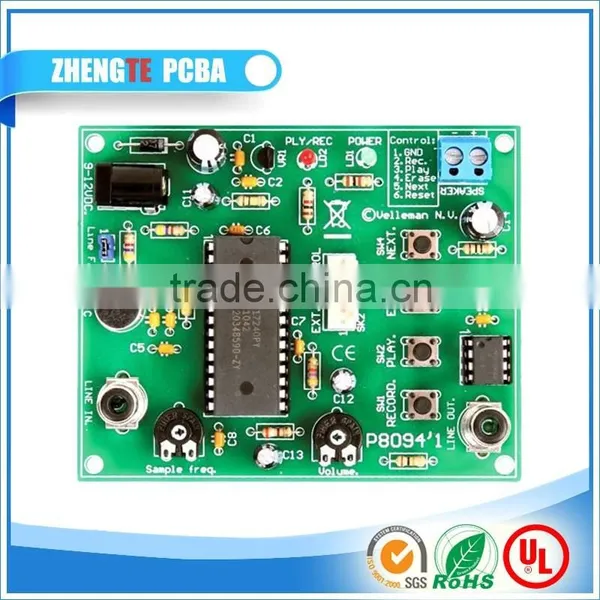

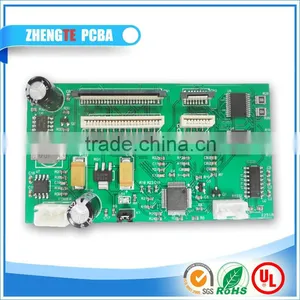

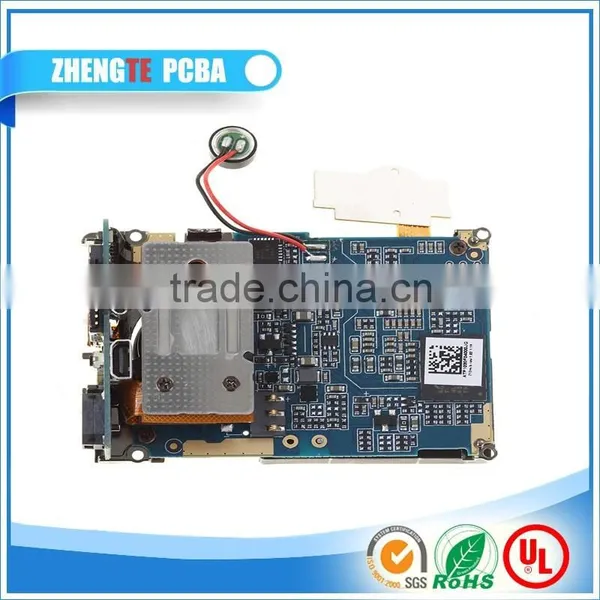

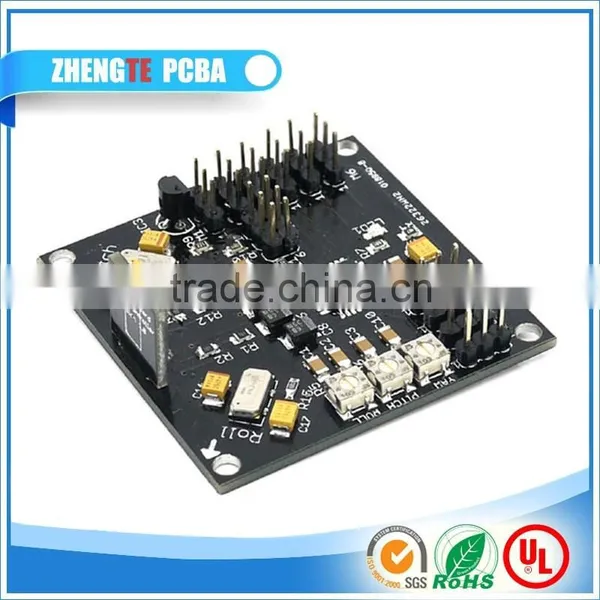

bitcoin miner pcb printed circuit board fast pcba
- 900000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ZT/OEM/OEM | Model Number: | ZT-BA21T |
Base Material: | FR-4 | Copper Thickness: | 2 OZ | Board Thickness: | 1.6mm |
Min. Hole Size: | 0.2mm-6.3mm | Min. Line Width: | 0.076mm | Min. Line Spacing: | 3mil (0.075mm) |
Surface Finishing: | LF HASL |
Product Description
bitcoin miner pcb printed circuit board fast pcba
Quantity | Prototype, low, medium, high volume PCB assembly |
Type of assembly | SMT, thru-hole, cable assembly, wire harness |
Min. IC pitch | 0.30mm |
Foot pin | SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA |
Min. chip placement | 1005 |
Max. PCB size | 580*900mm |
Min. PCB thickness | 0.35mm |
Maximum BGA size | 74 * 74mm |
BGA ball pitch | 1mm ~ 3mm |
BGA ball diameter | 0.4mm ~ 1mm |
QFP Lead Pitch | 0.38mm ~ 2.54mm |
Solder type | Water soluble solder, lead-free, wave soldering |
Components | passive down to 0201 size |
BGA and VFBGA | |
Leadless chip carriers/CSP/QFN | |
Double-sided SMT assembly | |
Fine pitch to 0.8mils | |
BGA repair and reball | |
Part removal and replacement | |
File format | Bill of materials (BOM) |
Gerber files | |
Pick-N-Place file | |
Types of service | Turn-key, partial turn-key or consignment, pilot run |
Component packaging | Cut tape, tube ,reels, loose parts |
Turn Time | 3 - 15 days ,complete project |
Programing | Hex file or bin file firmware. |
Testing | Flying probe test,electronic test, X-ray inspection, AOI |
Package | Anti-static bubble bag & carton |
Assembly process | Incoming materials checking → material baking → SMT → Testing & QC → DIP parts → IPQC → wave soldering → testing & QC → assembling → ICT or X-ray → 100% function testing → burn-testing → package → shiping |
Applications
Widely used in consumer electronic products, electrical appliances, small household electrical appliances, communication products, automotive, medical equipment and other fields (such as mobile phone, telephone, LED lighting equipment, TV, DVD, computer products and peripherals, game consoles, charger, power adapter, remote control and home appliances).
Details
1. Related Certificate --- UL ,ISO9001:2000 , TS16949, RoHS.
2. 100% electrical test, AOI testing, four times 100% QC inspection beofre shipping.
3. High reliable, Germany equipment ,competitive price andSpeedy delivery.
4. Fast Prototype Service.
5. One stop electronic assembly service(provide prototype, plastic injection molding, part painting,components purchasing, SMT COB,DIP,PCBA service as one unit).
Delivery
Advantage
1.Fast PCB Fabrication for Samples and Mass Production
2.Electronic Components Sourcing Services
3.PCBA Assembly Services:SMT,DIP,BGA...
4.Function Test
5.Stencil and Enclosure Assembly
6.Standard Packing and On time Delivery
1. Company History: Zhengte is a electronic manufacturer specialising in PCB production,PCB assembly ,as well as PCB design .
2. Product Series: Double-side PCB,multilayer PCB,HSAL PCB,ENIG PCB,Aluminum PCB,HDI PCB,Felxible PCB,Rigid PCB,PCBA,Electronics Assembly ,etc.
3. Enterprise Scale: more than 3000 square meters, more than 200 staffs
4. Certificates: RoHS, ISO9001: 2008 , ISO14001:2004,TS16949,UL etc.
Production line
Certifications
Q: How can I get quotation in time?
A: Please send us the PCB File and Components list via mail or Online tool(Aliwangwang or Skype,WhatsApp)The file will be checked and the initial quotation will be offered withing 2 working days as usual(Gerber,Eagle,PCB,CAD file are acceptable).
Q: How to Place order with Zhengte Electronics?
A:
Step1: Send us the PO with request (Final project files confirmed) and we will confirm with PI.
Step2: The order will be entered into our order system in same day.
Step3: Deposit or full payment complete,then order confirmed by our financial department.
Step4: The order will be proceed accordingly by our purchasing system.
Step5: Sample or photos offered for approval.
Step6: Balance payment complete,shippment arranged and tracking will be offered via email.
Q: What's the normal sequency of order?
A:
Step1: * PCB board file with parts list details provided by customers.
Step2: * PCB board file checked by PCB engineer.
Step3: * PCB board components sourced by Zhengte Electronics.
Step4: * Components checked by Zhengte Electronics warehouse stuffs.
Step4: * PCB board with components assembled.
Step5: * Electronic testing circuit board or PCBA.
Step6: * Anti-static package,Fast delivery.
Q: How can make sure no mistake for mass production?
A: The production files will be checked by our engineering teams.Samples will be
offered for approval before mass production.
Q: What files in need for the PCB Assembly services?
A:Besides the PCB files and Components list,we also need PNP(Pick and Place)
and Components Position files for production.
Q: How can I track the shipment?
A:When order complete,an email will be sent out to confirm the value and shipment methods.
Then the shipment tracking number will be shared with email as always.
Q: How can I share the feedback?
A: Please send the comments with the order number within 30days to our feedback service department.Our service department will proceed in working days as usual.
Q: What service Zhengte Electronics can offer?
A: One stop service for PCB design,PCB layout,PCB manufacture,Components purchasing,PCB assembly,Testing,Packing and PCB delivery.
