Kangchi 800KG Panoramic Lift

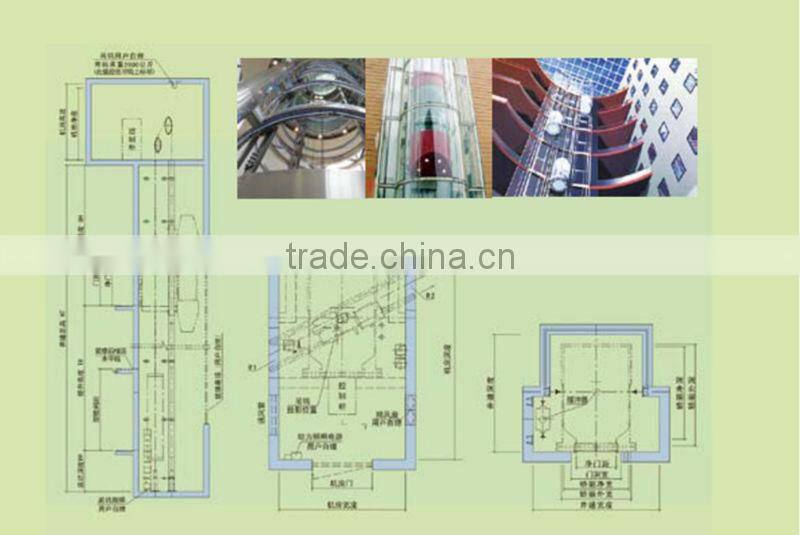

Panoramic Elevator  For Gearless & Machine Room / Gearless & Room-less / Geared & Roomless

Power Supply:               380V

Main Frequency:             50Hz

Light Curtain:                 Weco / SFT

Landing Door Type:       Central/Left/Right

Wing Board:                   Colorful Stainless Steel

Car Floor Decor:             Customer Require for Panoramic Elevator

Car Deco:                       Customized as your requirement

Celling:                         According Type or Customer Requirement

Car Side and Car back: Center board: Mirror finished, Hairline finish, Glass, Colorful Steel

Standard function

KangChi Elevtor Operation Function

Kangchi VVVF drive

Motor rotating speed can be precisely adjusted to get smooth speed curve when elevators start, travel and stop, and gain the sound comfort.

VVVF door operator

Motor rotating speed can be precisely adjusted to get the more gentle and sensitive door machine start/ stop.

Independent running

The elevator can not respond to outer calling, but only respond to the command inside the car through the action switch.

Automatic pass without stop

When the car is crowded with the passengers or the load is closed to preset value, the car will automatically pass the calling landing in order to keep maximum travel efficiency.

Automatic adjust door opening time

Door-open time can be automatically adjusted according to the difference between landing calling or car calling.

Reopen with hall call

In the door closing process, press reopen with hall call Button can restart the door.

Express door closing

When the elevator stops and opens the door, press door-close button, the4 door will be closed immediately.

Car stops and door open

The elevator decelerates and levels, the door only opens after the elevator comes to complete stop.

Car arrival gong

Arrival gong in the car top announces that the passengers arrive.

Command register cancel

If you press the wrong floor command button in the car, twice continuous pressing of the same button can cancel the registered command.

Direct parking

It completely accords with distance principle with no crawling in the leveling. It greatly enhances the travel efficiency.

KangChi Elevtor
Safety function

Photocell protection

In the door open and close period, infrared light that covers the whole door height is used to probe the door protection device of both the passengers and objects.

Designated stop

If the elevator can not open the door in the destination floor out of some reason, the elevator will close the door and travel to the next designated floor.

Overload holding stop

When the car is overload, the buzzer rings and stops the elevator in the same floor.

Anti-stall timer protection

The elevator stops operation due to slippery of the traction wire rope.

Startup protection control

If the elevator does not leave door zone with the designated time after it starts, it will stop the operation.

Inspection operation

When the elevator enters into inspection operation, the car travels at inching running.

Fault self-diagnosis

The controller can record 62 latest troubles so as to quickly remove the trouble and restore the elevator operation.

Repeated door closing

If the elevator can not close the due to certain obstacle or interference, the elevator will reopen or reclose the door until sundries are eliminated.

Up/down over-run and final limit protection

The device can effectively prevent from the elevator’s surging to the top or knocking the bottom when it is out of control. It results in more safe and reliable elevator travel.

Down over-speed protection device

When the elevator’s down speed is 1.2 times higher than the rated speed, this device will automatically cut off control mains; stop the motor running so as to stop elevator down at over-speed. If the elevator continues to down at over-speed, and the speed is 1.4 times higher than rated speed, safety tongs act to force the elevator stop in order to ensure the safety.

Upward over-speed protection device

When the elevator’s up speed is 1.2 times higher than rated speed, the device will automatically decelerate or brake the elevator.

KangChi Elevtor Man-machine interface

Micro-touch button for car call and hall call

New type micro-touch button is used for operation panel command button in the car and landing calling button.

Floor and direction indicator inside car

The car shows the elevator floor location and current travel direction.

Floor and direction indicator in hall

The landing shows the elevator floor location and current travel direction.

KangChi Elevtor
Emergency function

Emergency car lighting

Emergency car lighting automatically activated once power failure.

Inching running

When the elevator enters into emergency electric operation, the car travels at low speed inching running.

Five way intercom

Communication amid car, car top, elevator machine room, well pit and rescue duty room through walkie-talkie.

Fire emergency return

If you start key switch in main landing or monitor screen, all the callings will be cancelled. The elevator directly and immediately drives to the designated rescue landing and automatically opens the door.

KangChi Elevtor
Energy-saving function

Car ventilation, light automatic shut off

If there is no calling or command signal within the stipulated time, the car fan and lighting will be automatically closed in order to save the energy.

Remote shut-off

The elevator can be called to base landing (after finishing the service) through the key and automatically exist the service.

KangChi Elevtor  Optional function

KangChi Elevtor
Travel function

Anti-nuisance

In the light duty load, when three more commands appear, in order to avoid the unnecessary parking, all the registered callings in the car will be cancelled.

Open the door in advance

When the elevator decelerates and enters into door open zone, it automatically opens the door to enhance the travel efficiency.

Group control function

When three or more same model elevator groups are controlled in use, the elevator group can automatically choose the most appropriate response. It avoids the repeated elevator parking, reduces the passengers’ waiting time and increases the travel efficiency.

Duplex control

Two sets of same model elevators can unified respond the calling signal through the computer dispatch. In this way, it reduces the passengers’ waiting time to the greatest extent and enhances the travel efficiency as well.

On-duty peak service

Within the preset on-duty time, upward transport from the base landing is extremely busy. The elevators are continuously dispatched to the base landing in order to satisfy on-duty peak service.

Off-duty peak service

Within the preset off-duty period, the elevators are continuously dispatched to top floor in order to satisfy off-duty peak service.

Door open time extending

Pressing the specialized button in the car5, which can keep the door open for a certain period of time, is convenient for loading and unloading of goods.

Door-opening re-leveling

When the elevator door opens and leveling fluctuation occurs due to change of the car load, the system automatically runs the elevator to leveling position by its own leveling speed under the conditions of door-opening.
