Specifications

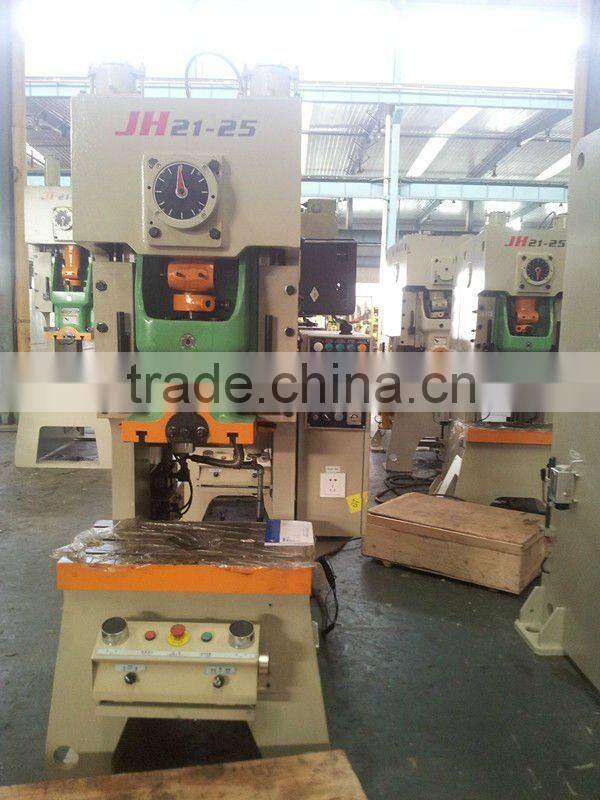

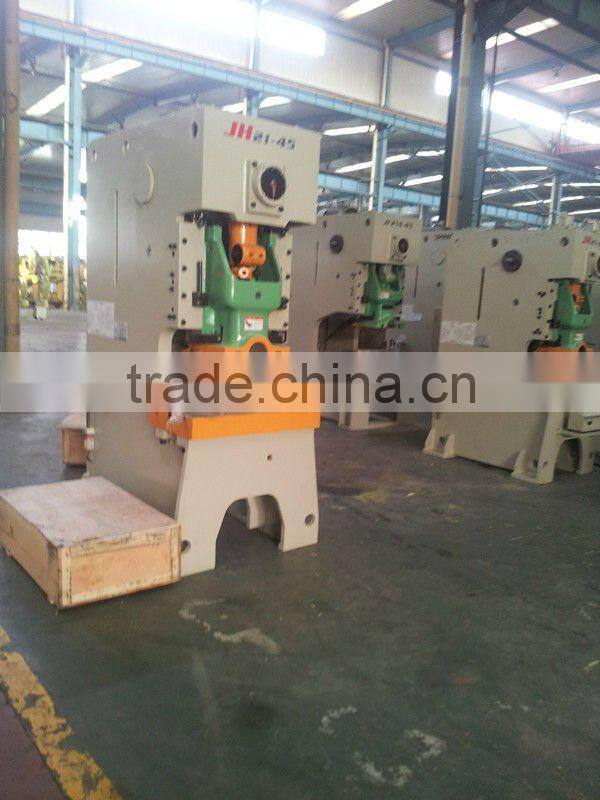

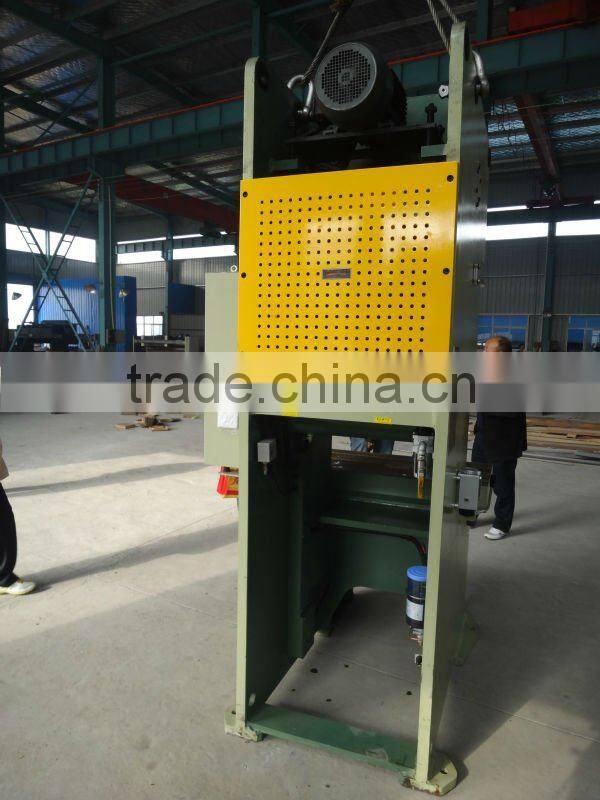

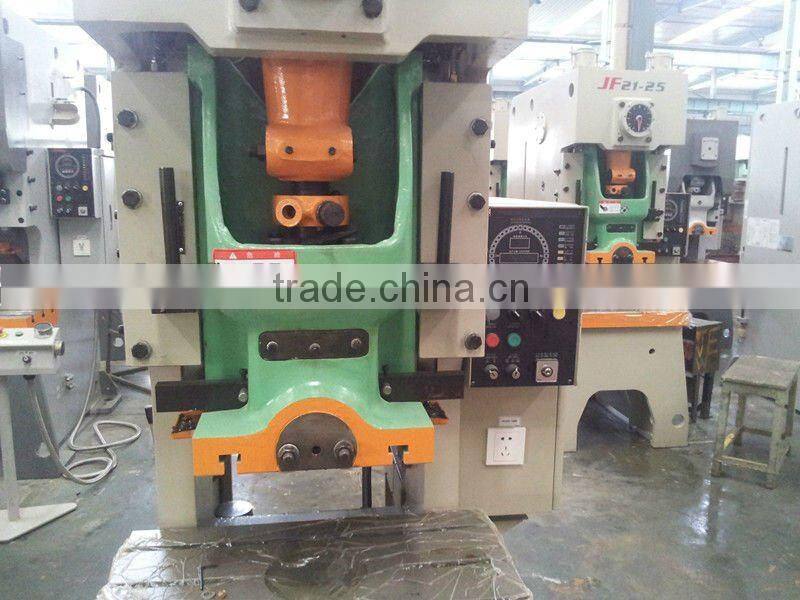

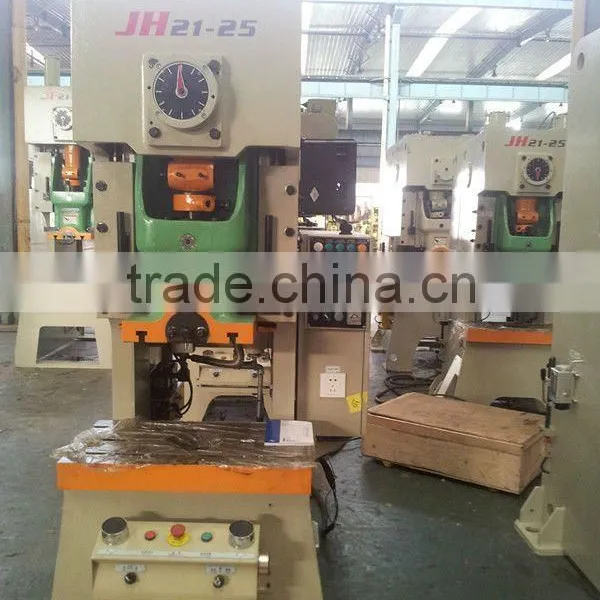

Automatic punching machinepunching machine, power press
High precision,Wide application
Introduction to the structure and properties:
1. Steel-welded frame, high rigidity and less deformation Compact, wide body frame eliminating vibration for improved ide life and machine.
2. Rigid construction gurantees exact die mating, Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.
3. Highly advanced, rigidly supported gears, operate in oil bath without any nosie saves space, reduces, shaft deflection, increases gear life.
4. Box section frame design and more closely spaced bearings result in better supported, more rigid sha.
5. Front to back crank shaft designs permits automatic feeding in any direction.

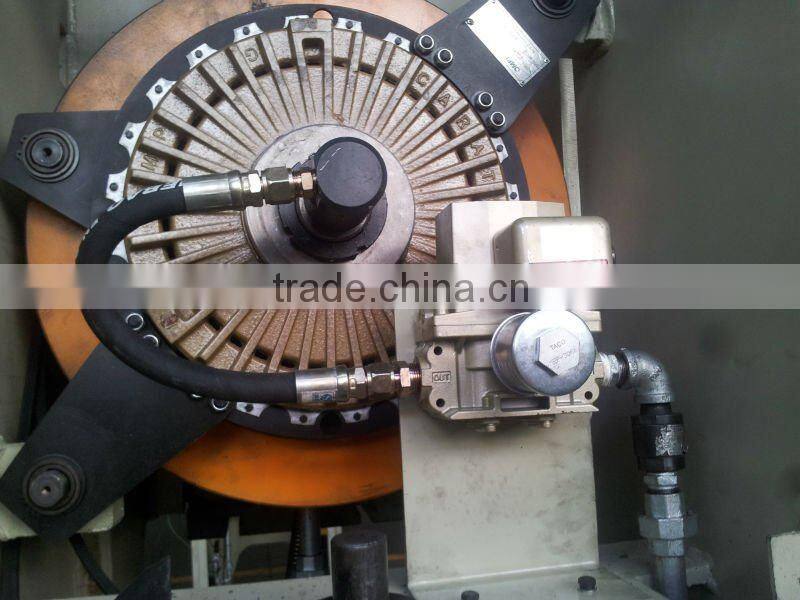

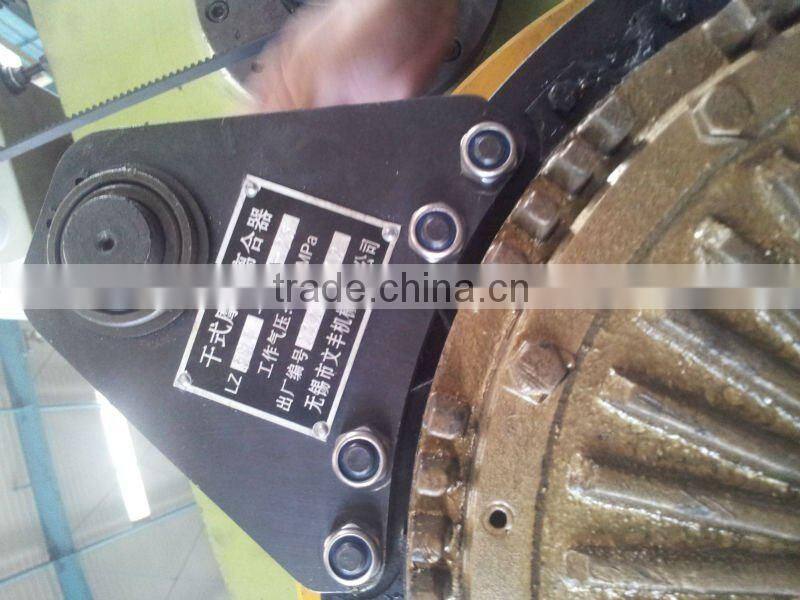

6. Adopts combined pneumatic friction clutch and brake,Low inertia electro pneumatic friction clutch assures less wear, smoother press performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life.
7. PLC electrical control system allows various auto-equipment reprogrammed accord-lng to different requirements and perform various functions,to ensure high reliability and high adaptability, Duplex valves imported from Japan.

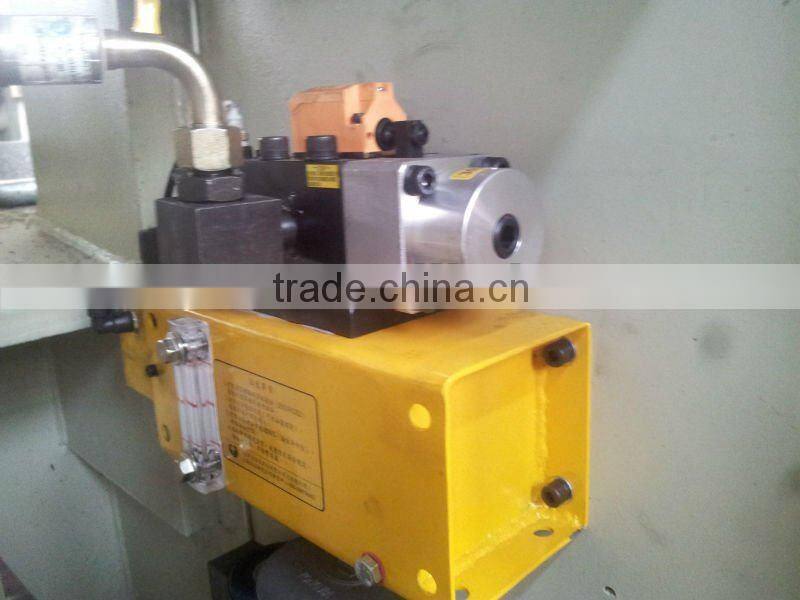

8. Hydraulic overload protection device achieving high sensitivity in effectively protection against overload, to ensure convenient and reliable operation.
9. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts and mechanism.
10. Automatic grease lubrication system, easy stroke adjustment mechanism increases press versatility tremendously,to ensure smooth operation of the machine.
11. Extremely flexible basic control system allows arrangements for practically any work requirement.
12. Equipped with optional air cushion device, automatic feed shaft and photoelectric protector, which can used to work with various automatic equipments.
