Specifications

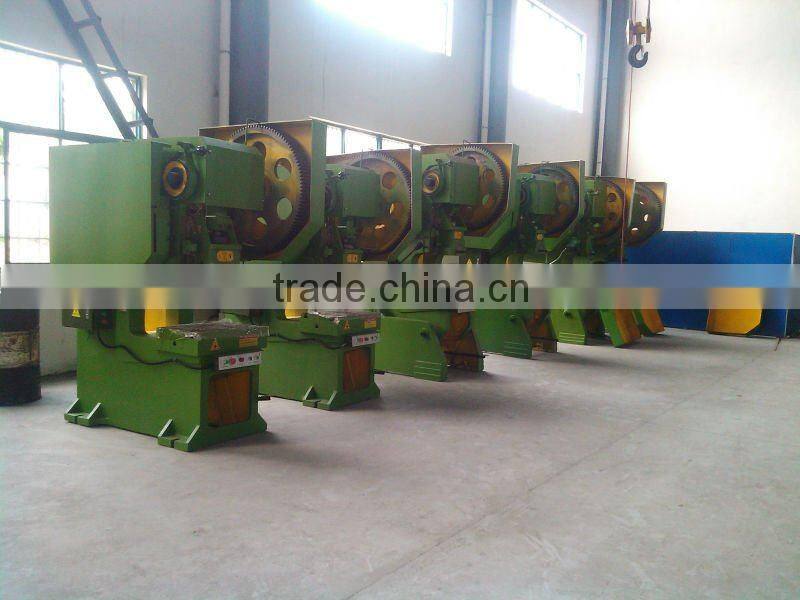

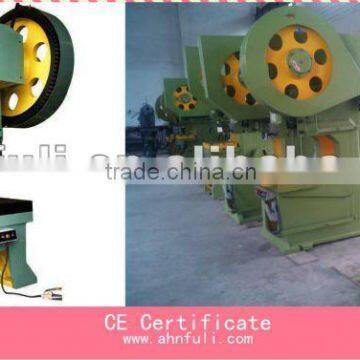

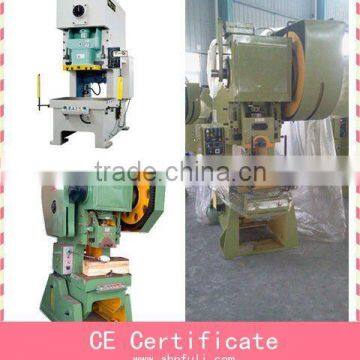

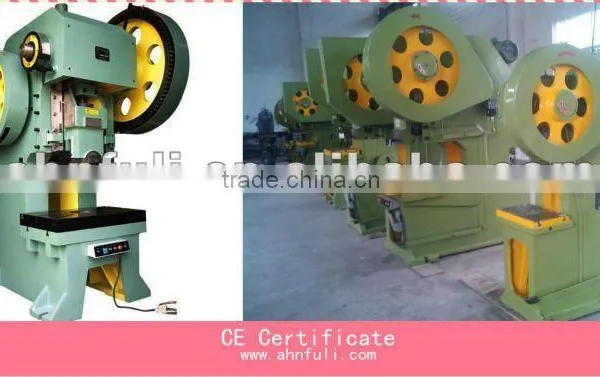

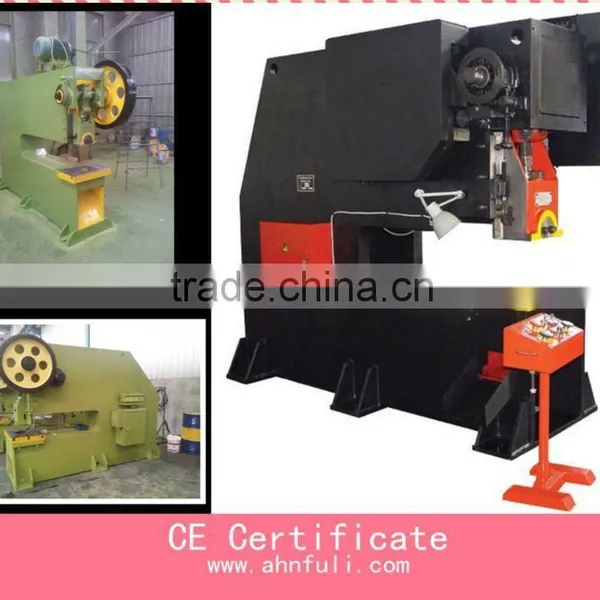

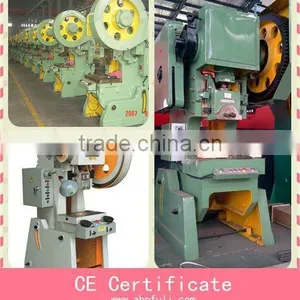

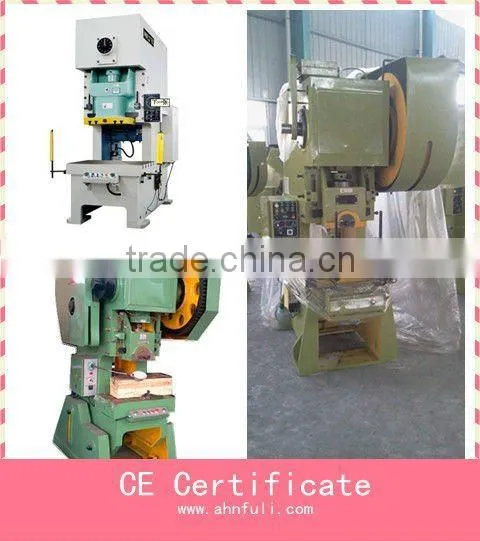

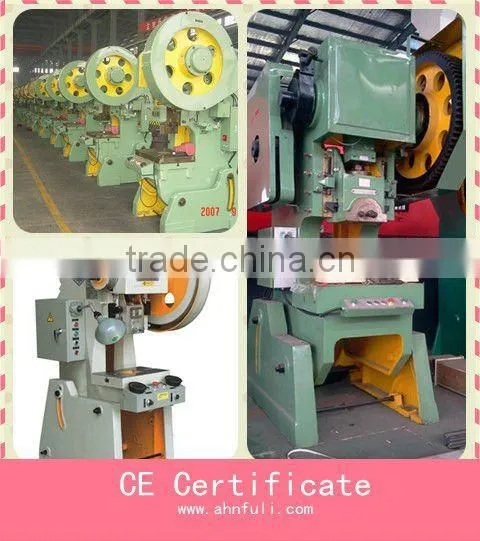

J23 Series Punch Press, Mechanical press Power Press1 open in three directions
2 casting body tuen key clutch
3 band brake
Usage
1.This stamping press machine is suitable for various cold punching and pressing processing such as blanking, holes
punching, forming, bending, shallow drawing etc;
2.It is widely used in the industries such as the electronic elements, instruments,
hardware, toys, vehicles, machinery etc.
Structure
1. Casting machine fuselage with stable performances;
2. C-frame machine fuselage, open and tiltable with large working space easy for
discharging the processed works and the waste materials;
3. Rigid clutch, simple structure;
4.Belt-type brake, easy for adjustment;
5. Collapsed-type safety fuse to protect the whole machine from being damaged due to
overloading.
6. Horizontal crankshaft, easy for maintenance
Characteristics
1.The machine fuselage with higher strength and rigidity, economic and durable;
2.Simple structure, good versatility, easy operation and maintenance.
J23 series open back inclinable press | |||||||
The main technical parameters |
Unit |
Model |
|||||
16 Tons |
25 Tons |
40 Tons |
60 Tons |
80 Tons |
100 Tons |
||
Nominal power |
kN |
160 |
250 |
400 |
600 |
800 |
1000 |
Nominal pressure stroke |
mm |
2 |
2.5 |
4 |
5 |
5 |
5.5 |
Slide block stroke |
mm |
0~55 |
0~65 |
0~100 |
0~120 |
0~120 |
0~130 |
Number of stroke |
spm |
125 |
160 |
45 |
40 |
40 |
38 |
The largest installed a high modulus |
mm |
170 |
205 |
260 |
270 |
290 |
370 |
Die set height adjusdment |
mm |
45 |
55 |
85 |
100 |
100 |
110 |
Slider to center from the bed |
mm |
160 |
200 |
250 |
290 |
310 |
380 |
Dimensions of side block bottom surface(f*b*l*r) |
mm |
180 × 200 |
220 × 250 |
230 × 250 |
340 × 400 |
350 × 420 |
360×470 |
Die handle hole size (diameter / depth) |
mm |
40/60 |
40/60 |
50/70 |
60/70 |
60/70 |
60/85 |
Worktable dimensions(f.b*l.r) |
mm |
300 × 460 |
380 × 580 |
480 × 660 |
580 × 860 |
570 × 920 |
710×1080 |
Thickness of the board table |
mm |
50 |
65 |
70 |
85 |
95 |
115 |
Work surface height from the ground |
mm |
800 |
865 |
890 |
930 |
940 |
1000 |
Electrical power |
kW |
1.5 |
2.2 |
5.5 |
5.5 |
7.5 |
7.5 |
The largest body angle |
deg |
30 |
30 |
30 |
30 |
30 |
30 |
Outline dimension(f*b*l*r*h) |
mm |
1150*920*1820 |
1350*1150*2150 |
1585 |
1650 |
1785 |
1750*1700* 3190 |
Machine weight |
kg |
1150 |
2350 |
3700 |
5900 |
7000 |
10500 |
