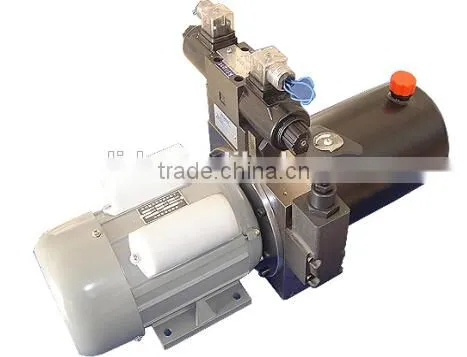

12VDC POWERUNIT COMPLETE WITH DOUBLE ACTING CETOP 3 VALVE

Name: 12VDC POWERUNIT COMPLETE WITH DOUBLE ACTING CETOP 3 VALVE
Brand: Salid
SKU: 103174387
Availability: InStock

US$ 100 - 300 MOQ: 1 Piece

Key Specifications

Type:

Hydraulic Power Units

Model Number:

HPU

Brand Name:

Salid

Qingdao Salid Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Type Hydraulic Power Units

Model Number HPU

Brand Name Salid

Place of Origin Shandong, China

12VDC POWERUNIT COMPLETE WITH DOUBLE ACTING CETOP 3 VALVE

Product Description

12VDC POWERUNIT COMPLETE WITH DOUBLE ACTING CETOP 3 VALVE

To operate 2 double acting cylinders on any type of hydraulic application.
1.7 cc/rev gear pump.
12Vdc electric motor.
7 or 10 Litre black sprayed horizontal steel reservoir c/w drain plug.
Reservoir c/w suction strainer, return oil conveyor and filler breather and level indicator.
Horizontally mounted Max pressure 175 bar.
Max flow 5 l/min.
Complete with main relief valve.
Fitted with 2 station manifold complete with 12Vdc double acting cetop 3 valves.
4 Button pendent on a 4 metre lead . complete with plug

1.Stable quality in harsh environment

2.Small order

3.Competetive price

4.Customization according to oil circuit

NOTES:

1. Hydraulic power units can only be worked intermittently

2.Clean all the hydraulic parts concerned before mounting the power unit

3. Viscosity of the oil shoud be 15~68 cst, and the oil should be clean and free of impurities, N46 hydraulic oil is recommended

4. Check the oil level in the tank after the initial running of the power unit.

5. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.

Qingdao Salid Machinery CO.,LTD.
Product
tie rod hydraulic cylinder, welded hydraulic cylinder, telescopic cylinders cylinder, flange type hydraulic cylinder, hydraulic cylinder with valve function, hydraulic power unit, Hydraulic manifold block, pneumatic fitting,
Material	Tube — Cold Drawn Precision seamless Tubing End Caps — Steel, threaded fixed; Wear Ring — Nylon Backup Washer Rod Seals — Polyurethane U-Cap Rod — Chromed, ground & polished piston rod Mounts — Trunnion with angular Swivels Rod Wiper — Polyurethane
Application	Agriculture, Concrete & Asphalt, Cranes, Fire & Rescue, Forestry & Logging,Mining & Rock Crushing,Oil & Gas, Snow & Ice Control,Waste Management and Material Recycling Industry , Engineering Equipment, Special Vehicle
Feature	1.High quality with a reasonable price 2.ISO9001-2008 3.Customized specification are accepted
Payment	T/T;L/C,WESTERN UNION.
Port	Qingdao ,China
Quotation	According to the specific request
MOQ	According to the product
Packaging	metal case;plywood case;carton or as requirement
Delivery time	30days upon receipt of 30% deposit; or upon receipt of relevant L/C;
