Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Hydraulic Deep Drawing Press

Hydraulic Deep Drawing Press

US$ 2,000 - 90,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

NFL

Model Number:

Y41

Contact Supplier Request Quote Chat Now

Maanshan New Fuli Machinery Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name NFL

Model Number Y41

Condition New

After-sales Service Provided Overseas third-party support available

Specifications

1.High precision,Wide application

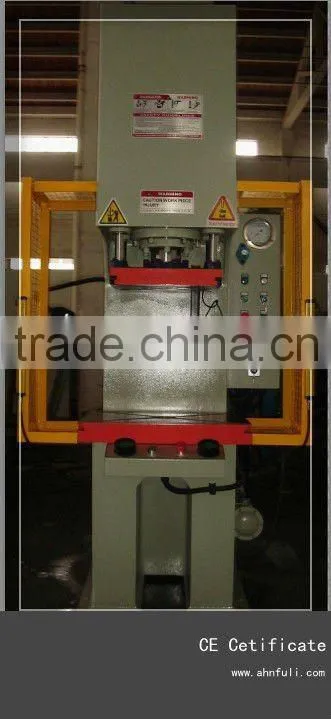

2.EU CE Certification
3.CQC,ISO9001:2008
4.High performance,
5.Easy to operation.

Product Description

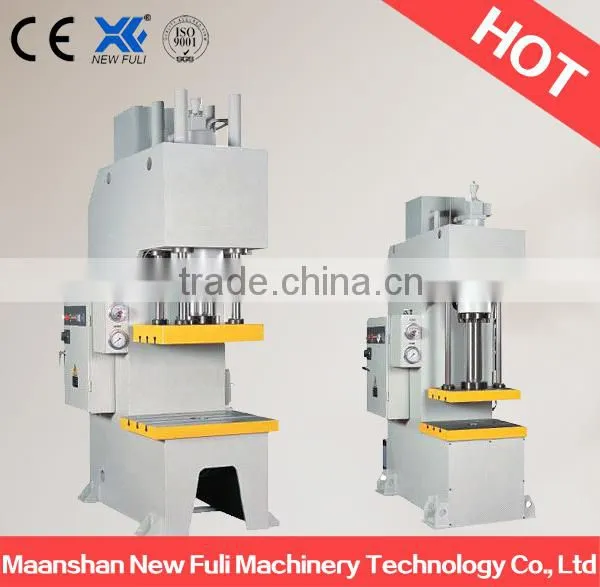

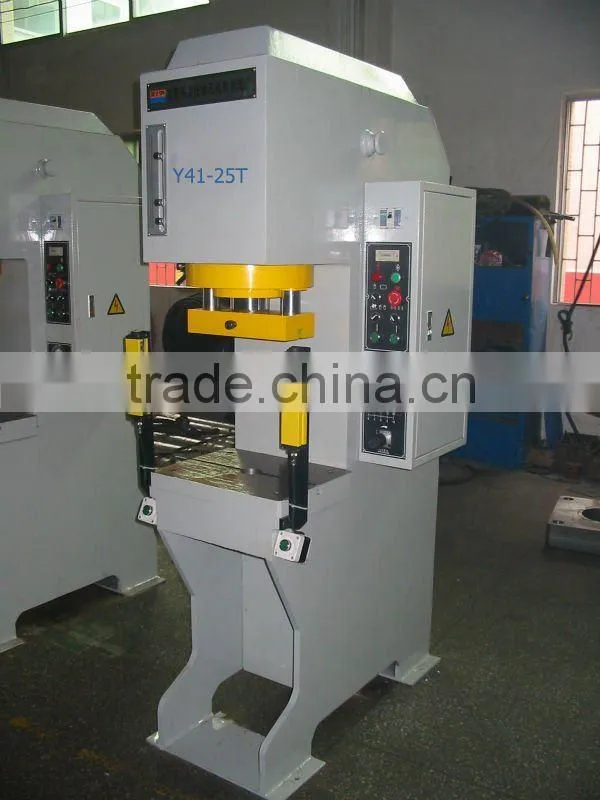

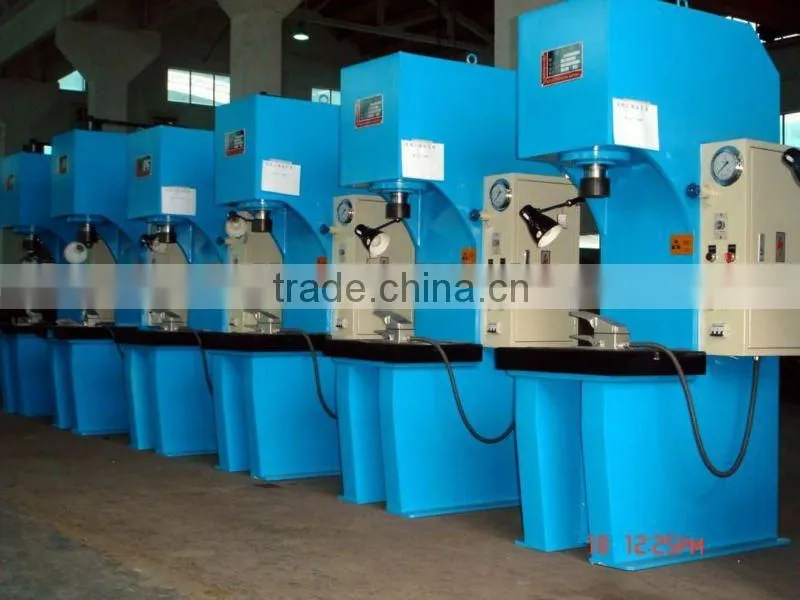

Y41 Series C Frame Hydraulic press is main use to make the shape or the other usages.

The main technical parameters of Y41 hydraulic press as belows:

the capacity is from 1T to 315T

type		Unit	1T	2.5T	6.3T	10T	16T	25T	40T	63T
Nominal force		KN	10	25	63	100	160	250	400	630
The maximun working pressure of the fluid		MPa	4.5	4.5	5.1	5.8	13	20.5	23	18.5
The maximum open height		mm	300	300	450	500	550	600	700	800
The maximum stroke of the slipper		mm	120	160	250	300	350	350	400	500
Slippe speed	Down velocity of the slipper	mm/s	60	60	85	85	110	110	85	85
	The working velocity of the slipper	mm/s	7-15adjustable
	Return velocity of the slipper	mm/s	120	120	120	120	120	120	120	120
Throat depth		mm	100	160	250	250	280	280	300	300
The size of the working platform	Front,Rear	mm	300	300	420	420	500	500	550	580
The size of the working platform	Left,Right	mm	400	400	450	450	550	600	600	600
The height of the working platform to the surface of the floor		mm	730	730	730	730	730	730	730	730
The size for the cutting hole		mm	70	70	80	80	100	100	100	100
The power for motors		kw	1.1	2.2	2.2	3	5.5	5.5	5.5	7.5
The configuration size of the machine tool	Front,Rear	mm	530	730	1000	1100	1150	1200	1200	1550
	Left,Right	mm	500	550	730	800	800	830	900	1050
	The height above the floor	mm	1455	1600	1800	1900	2100	2300	2400	2680
Total weight

Company Information

Our Services

. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.

4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere

FAQ

1. How about your machine quality?We are worry about the quality.

RE: New Fuli is a nature brand in CHINA,through our 30 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

2. Whether the machine price can be more discount

RE:1.New Fuli always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

3. How about your manufactory in CHINA

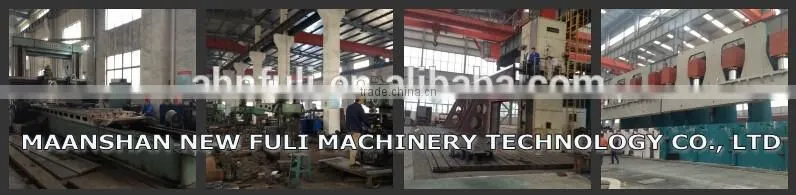

RE:New Fuli located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

We welcome your visit to us any time.
