Cutomized Professional Hydraulic Power Pack Unit

Name: Cutomized Professional Hydraulic Power Pack Unit
Brand: SALID
Availability: InStock

FOB Price

USD $80 - $200 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Hydraulic Power Units		Model Number	GD-HPU12V
Brand Name	SALID		Place of Origin	Shandong, China

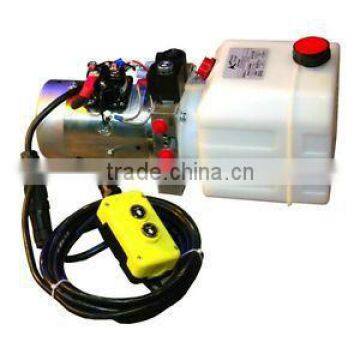

Cutomized Professional Hydraulic Power Pack Unit

1.6KW, 12vdc and 2.2KW, 24vdc electric motor complete with relay and plastic motor cover.
A range of reservoirs complete with suction strainer and filler breather.
Horizontal or vertical mounting options.
Pressures of up to 200 bar and flows from 3 to 15 l/min.
Two main relief valve options 40-100 bar and 100-200 bar.
12vdc and 24vdc lowering valve and P line check.
Can be supplied suitable for all single and double acting applications.
Push button pendants, isolators etc can be supplied as required.
While this pack has been designed with tippers in mind, derivatives can be used for other applications including:
- Tail lifts
- Passenger lifts
- Scissor lifts
- Forklifts
- Access lifts
- Agricultural applications
- Material handling equipment
We also design custom power packs to suit specific customer requirements.

1.Stable quality in harsh environment

2.Small order

3.Competetive price

4.Customization according to oil circuit

NOTES:

1. Hydraulic power units can only be worked intermittently

2.Clean all the hydraulic parts concerned before mounting the power unit

3. Viscosity of the oil shoud be 15~68 cst, and the oil should be clean and free of impurities, N46 hydraulic oil is recommended

4. Check the oil level in the tank after the initial running of the power unit.

5. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.

Qingdao Salid Machinery CO.,LTD.
Product
tie rod hydraulic cylinder, welded hydraulic cylinder, telescopic cylinders cylinder, flange type hydraulic cylinder, hydraulic cylinder with valve function, hydraulic power unit, Hydraulic manifold block, pneumatic fitting,
Material	Tube — Cold Drawn Precision seamless Tubing End Caps — Steel, threaded fixed; Wear Ring — Nylon Backup Washer Rod Seals — Polyurethane U-Cap Rod — Chromed, ground & polished piston rod Mounts — Trunnion with angular Swivels Rod Wiper — Polyurethane
Application	Agriculture, Concrete & Asphalt, Cranes, Fire & Rescue, Forestry & Logging,Mining & Rock Crushing,Oil & Gas, Snow & Ice Control,Waste Management and Material Recycling Industry , Engineering Equipment, Special Vehicle
Feature	1.High quality with a reasonable price 2.ISO9001-2008 3.Customized specification are accepted
Payment	T/T;L/C,WESTERN UNION.
Port	Qingdao ,China
Quotation	According to the specific request
MOQ	According to the product
Packaging	metal case;plywood case;carton or as requirement
Delivery time	30days upon receipt of 30% deposit; or upon receipt of relevant L/C;
