Help CenterTwo Lobes Roots Blower
Related Products
Specifications
1obtain certification for ISO9001 QA systerm212 years experience
3seal ring from USA,bearing from NSK,Japan
4energy saving

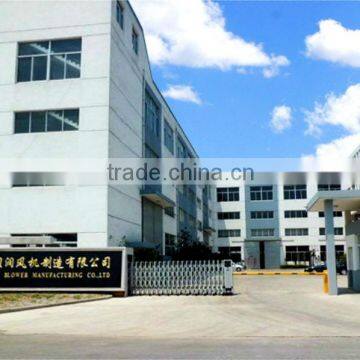

WELCOME TO WUXI BEIRUN BLOWER
| Brand | WUXI BEIRUN | Model | L11-L105 |
| Item | Roots Blower | Type | two lobes roots blower |
| Flow rate | 0.62m3/min~700m3/min | Pressure | 9807pa~170000pa |
| Motor power | 0.19KW~600KW | Voltage | 380V~10000V |
| Material | cast iron | cooling type | air current |
| Drive type | direct coupling or belt transmission | ||
| Frequency | 50HZ | ||
Features:
1,Since the impellers revolute in a frictionless and lubrication fret condition. The discharged gas contains no oil, being an ideal vacuum transmissive air source for such industries as chemical industry and food industry.
2,Roots blower is designed with a positive displacement rotary model. During its operation. The volume flow changes a bit little following a pressure fluctuation and varies with velocities Consequently ,the pressure choosing range becomes wide,while the volume flow can be adjusted by a speed variation.
3 ,The large speed and narrow gap result in a less leakage and a high displaceable efficiency, Our superior processing and assembling skill ensuresrationality and uniformity of the gap either gaining a high displaceable efficiency or avoiding an interior friction arising from beat expansion.
4,The structure of Roots Blower decides its lowest loss caused by the mechanical friction because of a mechanical contact in bearings and gears merely remained. The chosen materials assure an enough mechanical strength of the rotor,housing and gear rim. The product of our factory is noted for its safe operation and long life.
5,Having been static and dynamic-balanced. Each rotor of our Roots Blower turns out stable running and little vibration.
Usage:
sewage treatment, flour, aquaculture, pneumatic conveying, electric power ,metallurgy,chemistry,chemical fertilizer,petro- chemistry,food,building materials, crude petroleum,mine,texile,gas station,vacuum transmission and cement industries etc.
Accessory:
suction silencer (with air filter). Discharge silencer, safety valve, pressure gauge, vibration-isolating base,flexible connection(these accessory can be selected according to your need.)
export area:
Our blowers are exported to India,Cambodia and Korea,etc.
Our reliable performance has gained many steady customers who have established long term business relationship with us.
If you expect to learn more,welcome to visit our website:http://wxbeirun.preview.china.cn

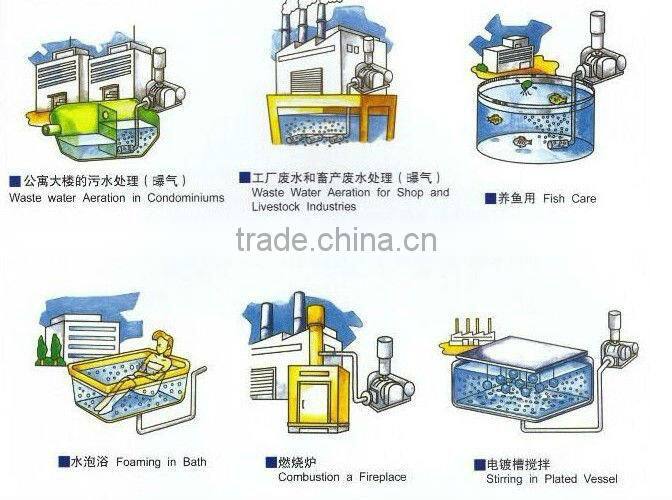

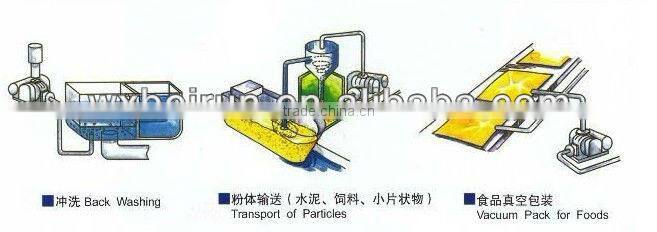

application

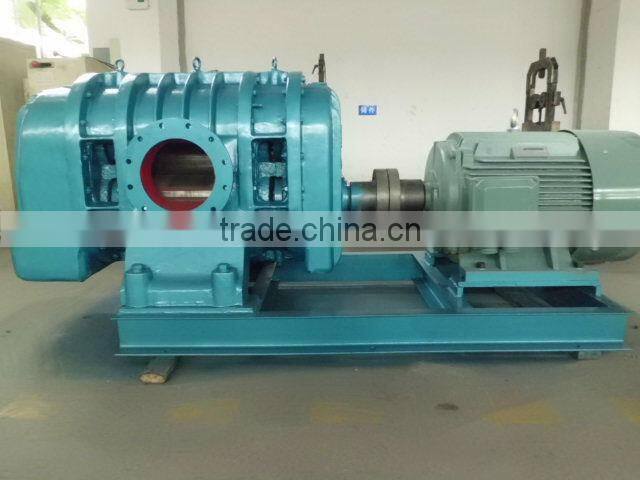

direct coupling connection

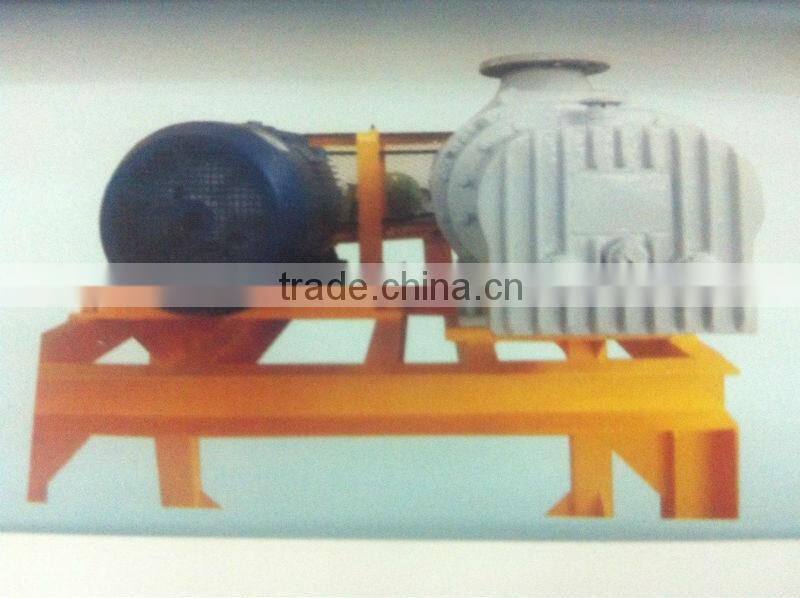

belt transmission

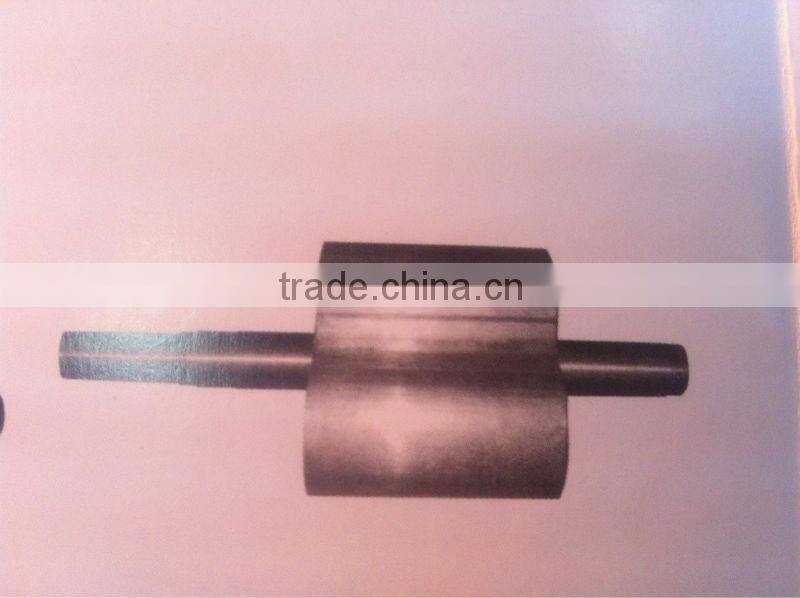

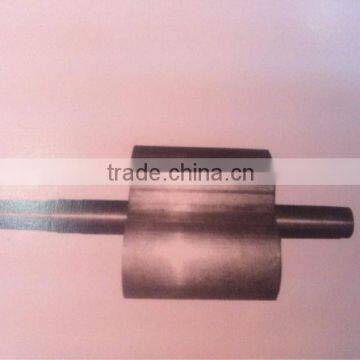

two lobes
Notice:
If you are interested in our roots blower,please advise us your requirement,so that we can select the suitable roots blower model and submit quoation accordingly.
1)please advise the flow(m3/min)
2)please advise pressure(kpa)
3)the roots blower application field
If you need to transport a corrosive gas with a slight.please tell us,we will provide you with special processing.
The direction of suction and discharge can be selected according to yout need.
Any questions,please feel free to contact us!We will do our best for you!Sincerely hope that we can cooperate with you in the near future.
