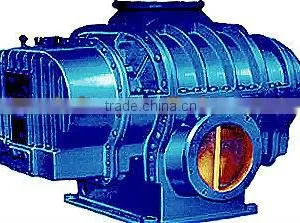

L74WD

L74WD thumbnail-1
L74WD photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
beirun
Model Number:
L74WD
Contact Supplier Request Quote Chat Now
Wuxi Beirun Blower Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name beirun
Model Number L74WD
Application Air Blower
Type Roots Blower
Pressure Low Pressure
Power Source Electric Blower
Rated Power 22~155KW
Rated Voltage 380V

Specifications

1obtain certification for ISO9001 QA systerm
212 years experience
3seal ring from USA,bearing from NSK,Japan
4energy saving

type

revolution

(r/min)

pressure rise

(kpa)

flow

(m³/min)

 motor

weight

(kg)
type

power

(kw)
L74WD 730 9.8 89.9 Y225M-8 22 3630
19.6 85.9 Y280M-8 45
29.4 82.8 Y315M1-8 75
JS115-8 60
39.2 80.0 Y315M2-8 90
JS117-8 80
49 77.4 Y315M3-8 110
JS126-8
58.8 72.2 Y355M1-8 132
JS127-8 130
980 9.8 125 Y225M-6 30
19.6 121 Y280M-6 55
29.4 118 Y315M1-6 90
JS116-6 95
39.2 115 Y315M2-6 110
Y315M-6
JS117-6 115
49 112 Y315M3-6 132
JS125-6 130
58.8 107 Y315M2-6 160
JS126-6 155

  WELCOME TO WUXI BEIRUN BLOWER

Features:

1,Since the impellers revolute in a frictionless and lubrication fret condition. The discharged gas contains no oil, being an ideal vacuum transmissive air  source for such industries as chemical industry and food industry.

2,Roots blower is designed with a positive displacement rotary model. During its operation. The volume flow changes a bit little following a pressure fluctuation and varies with velocities Consequently ,the pressure choosing range becomes wide,while the  volume flow can be adjusted by a speed variation.

3 ,The large speed and narrow gap result in a less leakage and a high displaceable efficiency, Our superior processing and assembling skill ensuresrationality and uniformity of the  gap either gaining a high displaceable efficiency or avoiding an interior  friction arising from beat expansion.

4,The structure of Roots Blower decides its lowest loss caused by the mechanical friction because of a mechanical contact in bearings and gears merely  remained. The chosen materials assure an enough mechanical strength of the rotor,housing and gear rim. The product of our factory is noted for its safe  operation and long life.

5,Having been static and dynamic-balanced. Each rotor of our Roots Blower turns out stable running and little  vibration.



Usage:

sewage treatment, flour, aquaculture, pneumatic conveying, electric power ,metallurgy,chemistry,chemical fertilizer,petro- chemistry,food,building materials, crude petroleum,mine,texile,gas station,vacuum transmission and cement industries etc.



Accessory:

suction silencer (with air filter). Discharge silencer, safety valve, pressure gauge, vibration-isolating base,flexible connection(these accessory can be selected according to your need.)



export area:

 Our blowers are exported to India,Cambodia and Korea,etc.

Our reliable performance has gained many steady customers who have established long term business relationship with us.

If you expect to learn more,welcome to visit our website:http://wxbeirun.preview.china.cn



Notice:



If you are interested in our roots blower,please advise us your requirement,so that we can select the suitable roots blower model and submit quoation accordingly.



1)please advise the flow(m3/min)



2)please advise pressure(kpa)



3)the roots blower application field



If you need to transport a corrosive gas with a slight.please tell us,we will provide you with special processing.



The direction of suction and discharge can be selected according to yout need.



Any questions,please feel free to contact us!We will do our best for you!Sincerely hope that we can cooperate with you in the near future.
