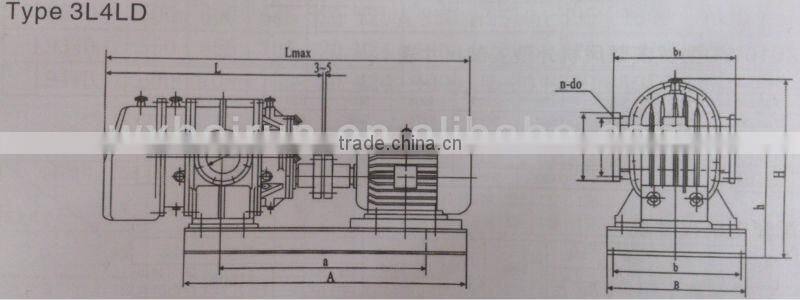

Roots Blower W3L53LD

Specifications

3  L  X Y  W(L)   D

Drive Mode: D- Coupling direct

Construction: W- horizontal type;L- vertical type

Y---Length of Impellers (cm)

X---Diameter of Impellers (cm)

L---Blowers Code Name

3---Three lobes model

Application

This type of roots blowers is specially applied to handling clean gas, clean air, carbon dioxide and other inert gases; widely applied to metallurgy, chemical industry, chemical fertilizer, concrete, pneumatic conveying, sewage treatment, environmental protection, aquaculture and any other gas transimiting fields.

Specifications

Gas---air and other neutral gases;

Temperature---20 °C;

Airflow---1.66-66.8 m³/min;

Inlet---101.3kPa;

RH---50%

Boost Pressure---9.8-98kPa

Feature

Type

notice:

If you are interested in our roots blower , please advise us your requirement, so that we can select the suitable roots blower model and submit quotation accordingly.

1) Please advise the flow(m3/min)

2) Please advise pressure (kpa)

3) The roots blower application field

If you need to transport a corrosive gas with a slight,please tell us,we will provide you with  special processing.

The direction of suction and discharge can be selected according to your need.

Any questions,please feel free to contact us!We will do our best for you!Sincerely hope that we can cooperate with you in the near future!
