Help CenterMicro Water Turbine Electric Generator With Long Lifespan
Related Products
-
Water Turbine Expansion JiontUS$ 20,000 - 200,000MOQ: 1 Unit -
Pelton Turbine of Hydro Power Plant EquipmentUS$ 20,000 - 200,000MOQ: 1 Set
-
Water Turbine Generator/ Generator Stator/ Stator CoreUS$ 10 - 10,000MOQ: 1 Unit
-
Water Turbine Generator/ Generator Roator/ Generator PoleUS$ 10 - 10,000MOQ: 1 Unit
-
High Quality Rotor for Three-phase AC Synchronous GeneratorUS$ 30,000 - 900,000MOQ: 1 Unit
Specifications
1.ISO9001-20082.SGS& BV,TUV&ISO certified
3.Competitive price&good quality&industry-leading runner
4.Customized design

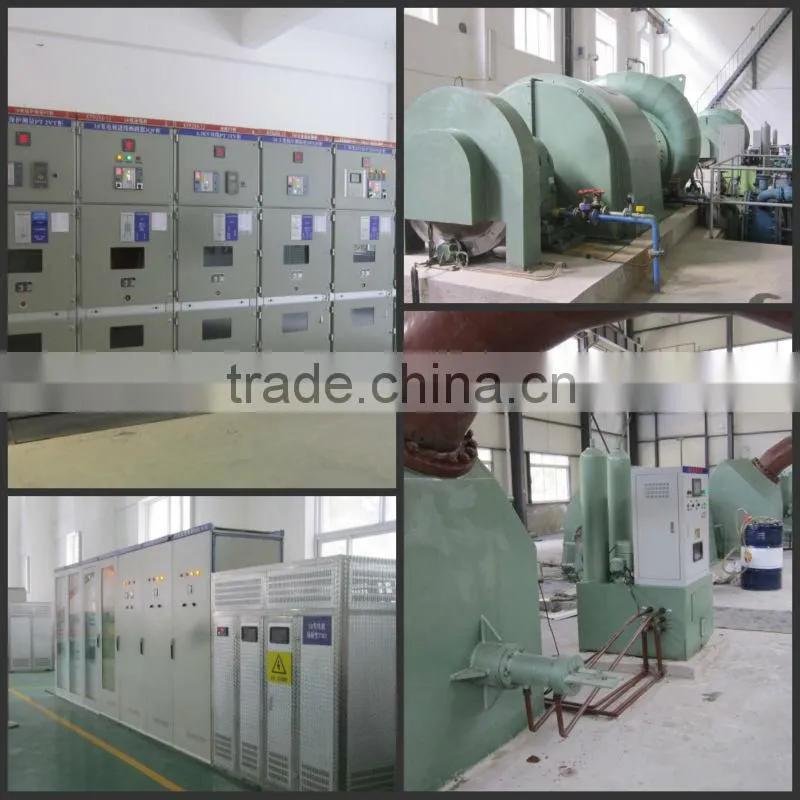

Product sample:

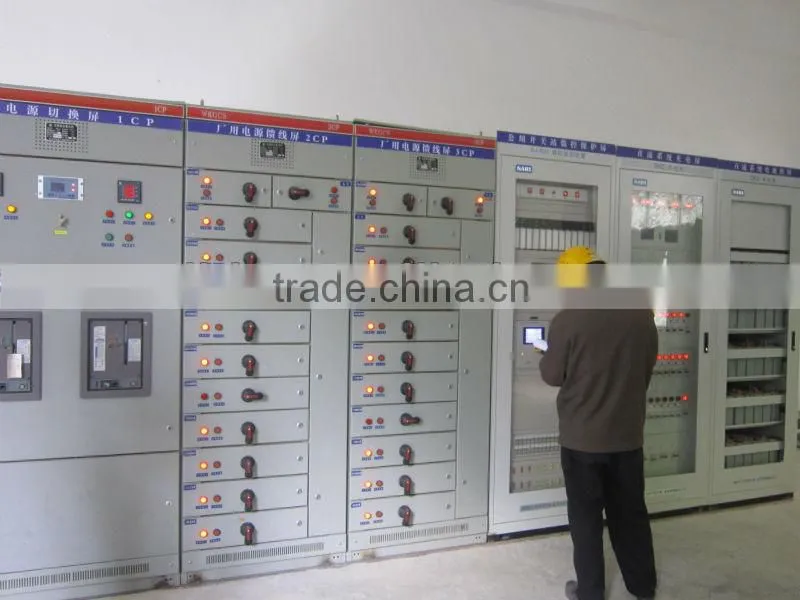

Microcomputer monitor system:
Runner:

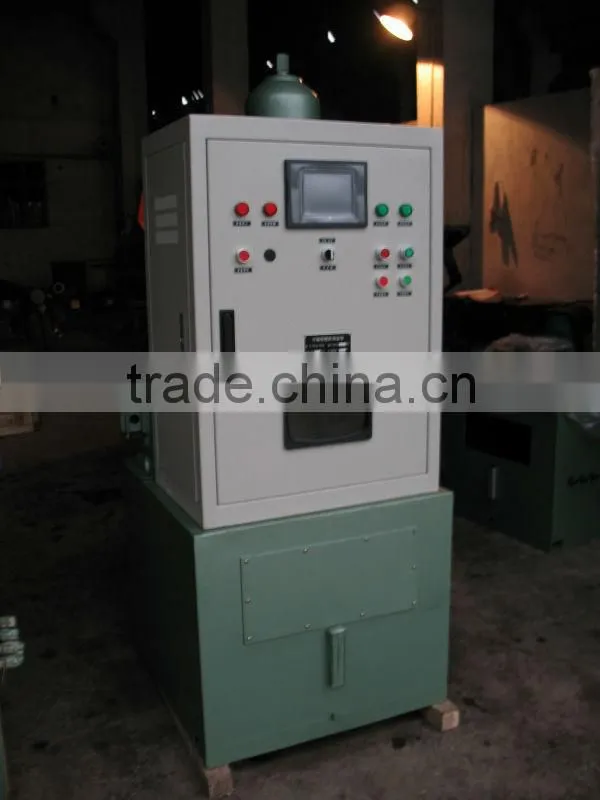

Speed governor:

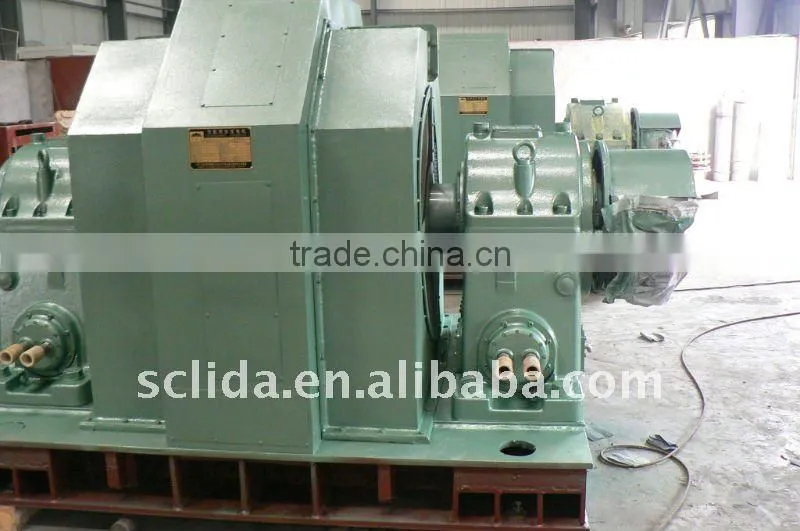

Generator:
Flywheel:
Main products profiles:
There are two types of turbines that are manufactured in our company, they are reaction turbines and impulse turbines.
1.Reaction turbines
Reaction turbines generally mean Francis turbine and Axial flow turbine.
1.1 Francis turbine: applicable water head:30-700m, efficiency: 88%-92%
1.2 Axial flow turbine: applicable water head:2-40m, efficiency: 88%-92%
Francis turbine:
Axial flow turbine:
2.Impulse turbines
Impulse turbines generally mean Turgo turbine and Pelton turbine.
2.1Turgo turbine: applicable water head:40-300m, efficiency: 78%-85%
2.2 Pelton turbine: applicable water head: 50-1300m, efficiency: 86%-91%
Turgo turbine:

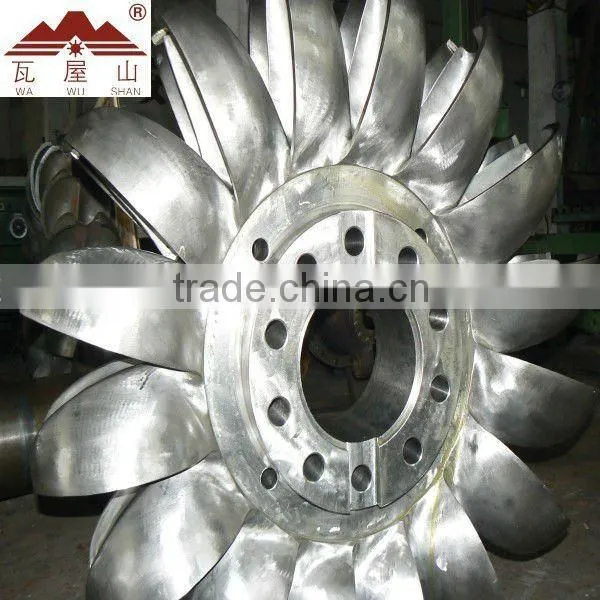

Pelton turbine:
Note: We can produce all the four types of turbine as above.
How to inquire our product?
1. please send us the detailed parameters of the HPP
A Water head----- m
B Flow------ m³/s
C Installed capacity--- KW
D Frequency---- 50HZ or 60HZ
E Generator excitation-- static SCR excitation or brushless excitation
Those parameters will decide which type of turbine and generator best satisfy your water condition.
2. Tell us your requirements of the water turbine generator unit.
A Does special material required for the equipments?
B Does the unit controlled manually or by computer?
C What should be quoted in the proposal?
Mechanical and Electrical part? Swithyard?
If you have any questions, pls. feel free to contact us! We promise you a professional service!
Contact person: Icy Yang
Mobile: 86 15928174370
Skype: icyyang618
