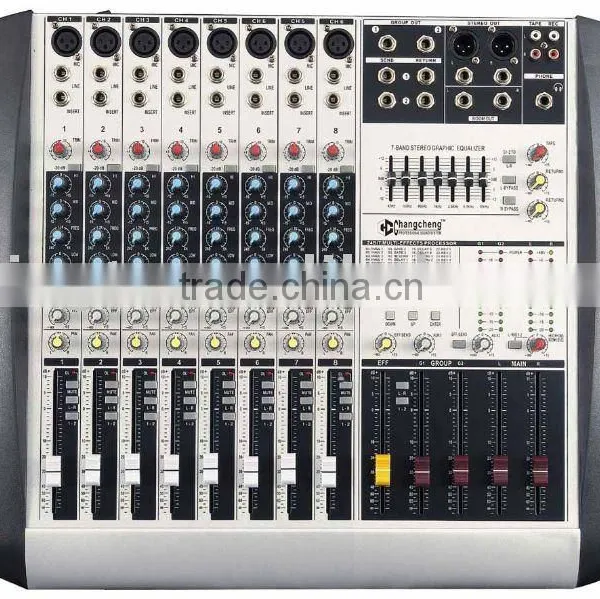

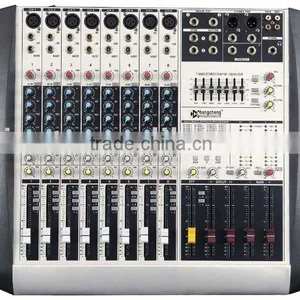

Help CenterMixing HX Series
Related Products
Specifications
HX Series mixer:1.two groups mixing console,with DSP effect processor
2.balance microphone input and 2 stereo input
Features
1.two groups mixing console,with DSP effect processor
2.balance microphone input and 2 stereo input
3. High quality, low noise mic input
4. Provide high quality +48V phantom power for each channel's mic
5. Equipped with Signal insertion point, convenient to connect with external signal processor
6. 3 bands EQ with swept MF which can be adjusted from 140Hz to 3 KHz, England style
7. 2 groups of AUX output,optional for pre fader(return)or post fader(connect external processor)
8. unique double-ended SMT circuit designing,guarantees high and stable performance
9. 100MM high level analysis fader
Specification
Total Harmonic Distortion <-0.005%
Frequency Response (20Hz-20KHz)+1dB /-3dB
Residual output noise <-89dBu
Crosstalk <-77dBu
Mono channel high pass filter 80Hz-120Hz 12dB/oct
S/N Ratio -76 dB
Gain Control
Mono -49dB~0dB
Stereo -24dB~0dB
Output Level
Group max output 17dBm (1 KHz, THD=0.5%)
Wiretap max output: 24dBm
Iutput Level
MIC max input ≥-30dBm
Line max input ≥-10dBm
Earphone output power 250mW(1KHz,THD=0.5%，200Ω)
Mono equalizer
HF 12KHz±15dB
MF 140Hz~3KHz±15dB Q=1.5
LF 60Hz±15dB
Stereo equalizer
HF 12KHz±15dB
LF 100Hz±15dB
Graphic EQ 7-band max mutative range,±12dB
Input & output impedance
MIC input impedance 2.4KΩ adapt to impedance 50-600ΩMIC
Mono input impedance 11KΩ adapt to impedance 600ΩMIC
Stereo input impedance 100 KΩ adapt to impedance 50-600ΩMIC, Line
REC input impedance 0 KΩ adapt to impedance 600ΩLine
Main output impedance 75Ω
Group output impedance 150Ω
AUX output impedance 150Ω
REC output impedance 600Ω
Power consumption 60W
