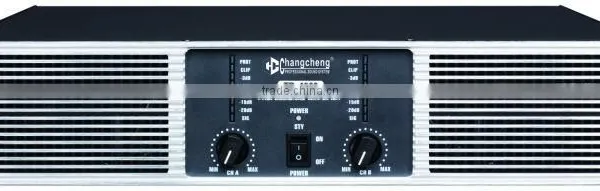

Switching Power Amplifier High Power
- Money Gram
You May Like
Product Details
| Brand Name | CHANGCHENG | Model Number | TD-1500 | |
| Place of Origin | Guangdong, China |
Cartons
Product Description
Specifications
TD series amplifier with a number of advanced switching powersupply technology.TD series amplifier with a number of advanced switching powersupply technology,successfully resolved the contradiction between efficiency and quality.
High power digital control resonant switch model power supply technical(14000W music power) .
Zero-voltage switching power transistor,rectifiers zero current switching,high efficiency,high reliability,zero interference.
Tracking switch model power supply technology,following the music signal feed,Amplifier working in high bias circuit in the Class AB condition,close to the efficiency of class D provides Class A amplifier's sound quality.
| TECHNICAL SPECIFICATIONS: | |||||
| Model | T-1500 | T-1800 | |||
| 8ΩStereo Power | 2*1500W | 2*1800W | |||
| 4ΩStereo Power | 2*2380W | 2*2800W | |||
| 2ΩStereo Power | 2*2000W | 2*2100W | |||
| 8ΩBTL | 4800W | 5600W | |||
| 4ΩBTL | 3800W | 4500W | |||
| Frequency Response | 5-30K | ||||
| THD+N | <0.05%@8Ω1/3Po | ||||
| S/N Ratio | >100dB | >100dB | |||
| Slew Ratio | 21Vu/S | 21Vu/S | |||
| Damping Factor | >600 | >600 | |||
| Crosstalk | >65dB@8Ω1KHz | ||||
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) | ||||
| Input Sensitivity | 0.8V/1.6V | ||||
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter | ||||
| Height | 2U | ||||
| Gross Weight | 18KG | 18KG | |||
| Packing Dimensions | 650*585*160mm | ||||
