Hydraulic Hole Punching Machine Iron Worker Machine

FOB Price

US$ 10 - 20 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Hydraulic	Place of Origin	Shandong, China
Brand Name	HW	Model Number	HW
Voltage	380V	Power(W)	0.75KW
Weight	20KG	Dimension(LWH)	120X80X180CM
Certification	ISO9001	Warranty	One Year
After-sales Service Provided	No overseas service provided

Product Introduction

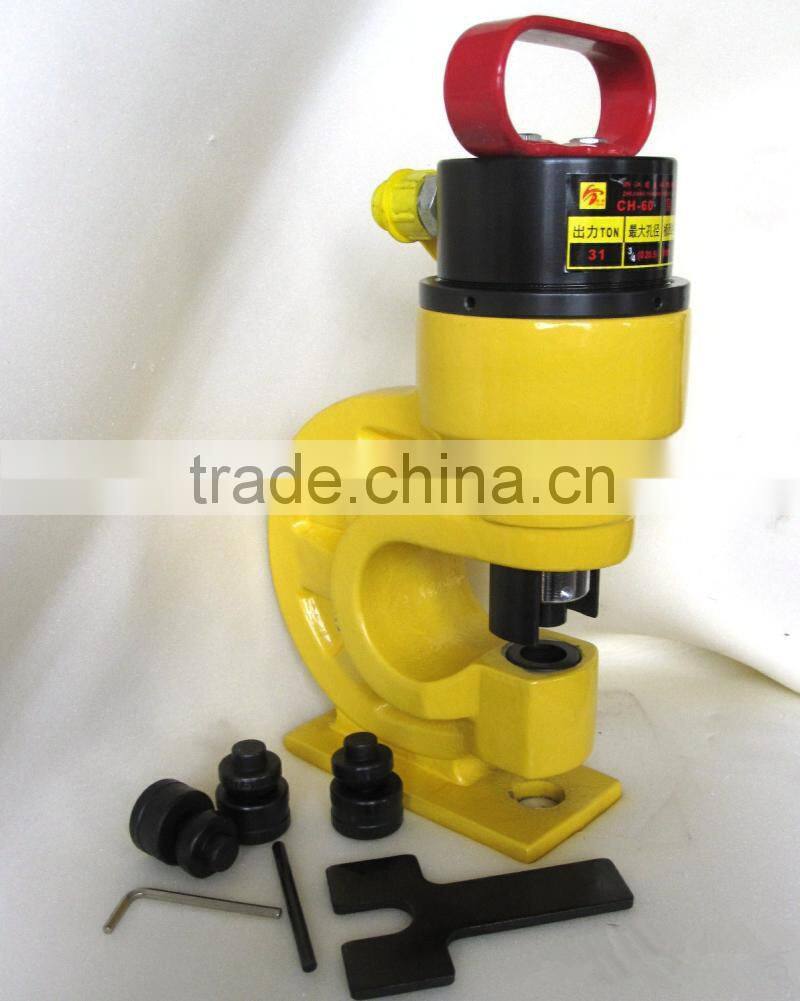

hydraulic punching machine

Model:CH 60

Modle:CH 70

Punching force	35T
Max thickness of sheet	12mm of copper sheet/ 6 mm of metal sheet
Depth of throat	110mm
Height	approx.460mm
Weight	approx.34.5kg.
Package	carton
Size	390X250X140mm
Accessories	3/8"(10.5),1/2"(13.8),5/8"(17),3/4"(20.5)mm
Note	it is used for Cu/Al plate, can match pumps CP-700/ DYB-63A.

Model:CH 80

Punching Force	50T
Max thickness of sheet	16mm of coppet sheet/14mm of metal sheet
Depth of throat	115mm
Weight	approx.30kg
Package	wooden case
Size	400260160mm
Accessories	3/8'(10.5) 1/2'(13.8),5/8'(17), 3/4(20.5)mm
Note	It is used for punching Cu/Al plate, can match pumps CP-700D or electric pump.

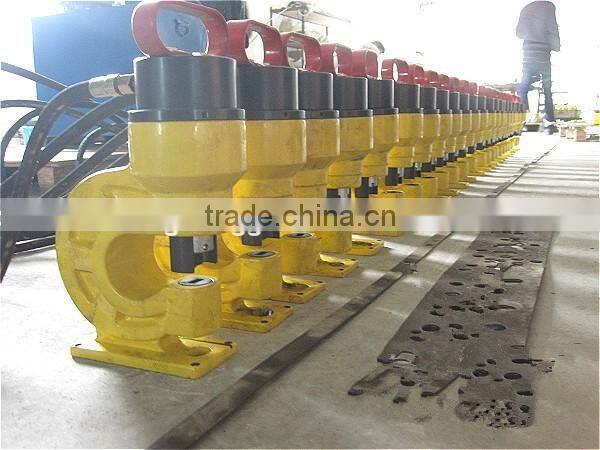

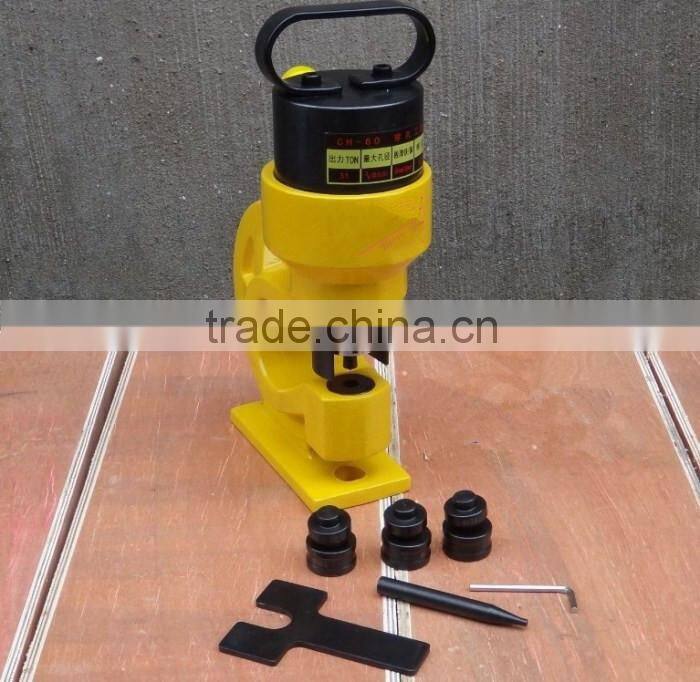

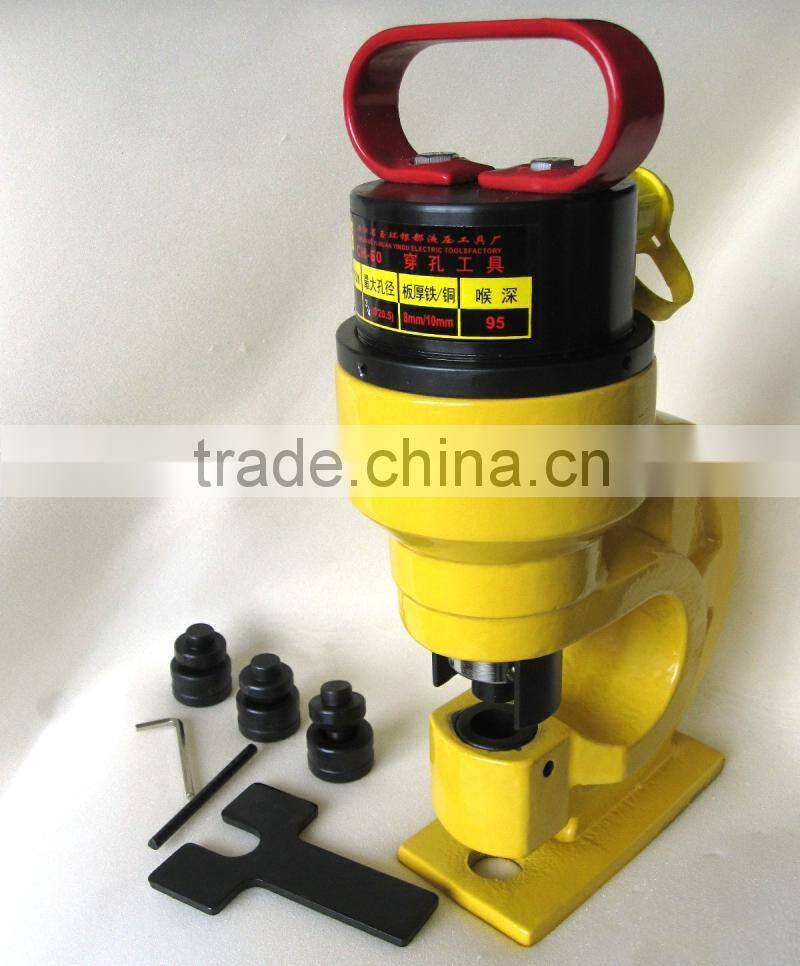

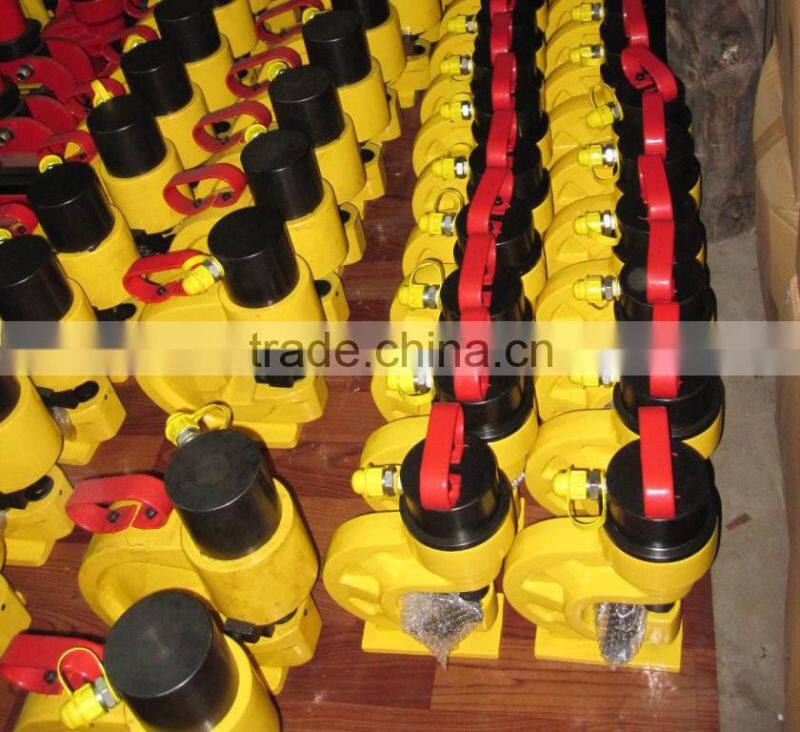

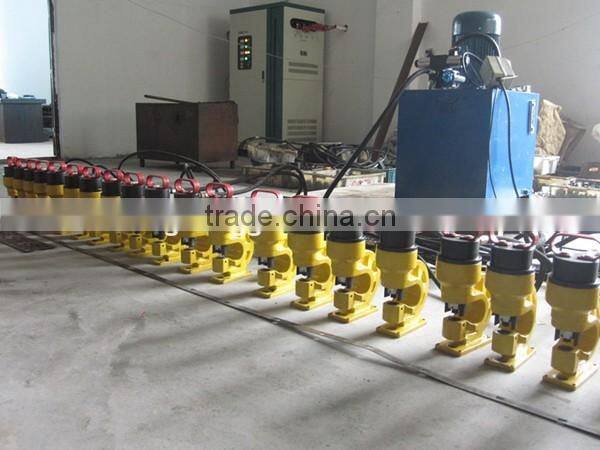

Figure photos

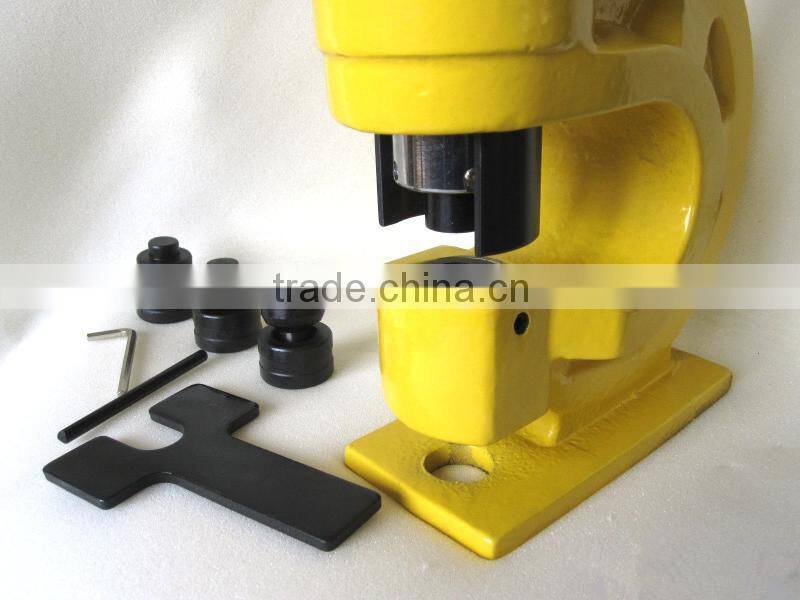

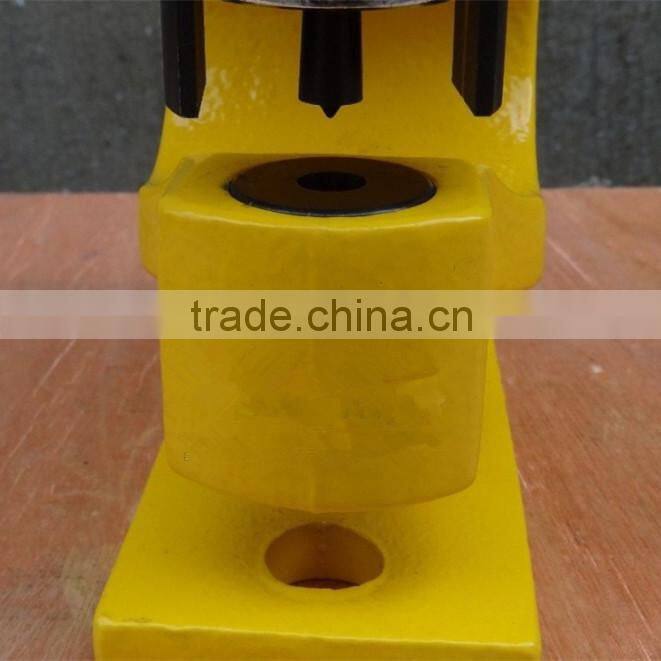

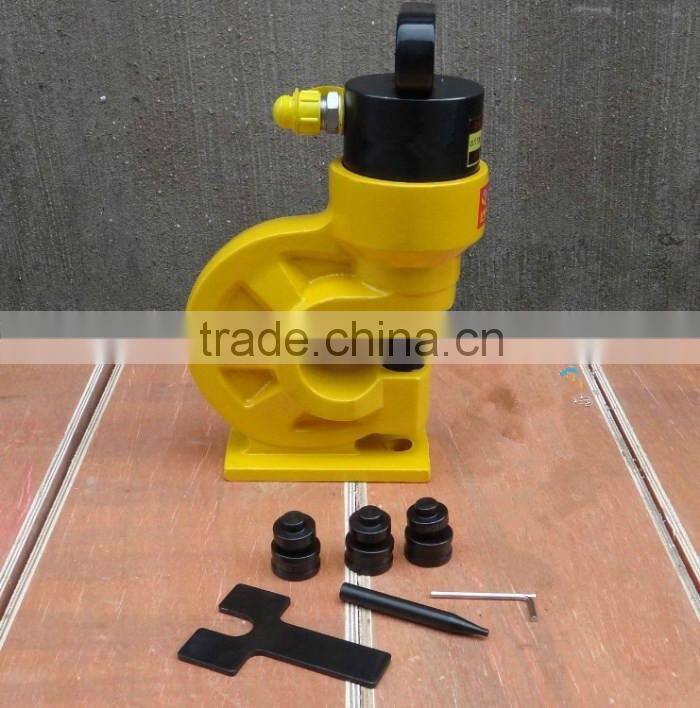

The real details photo
