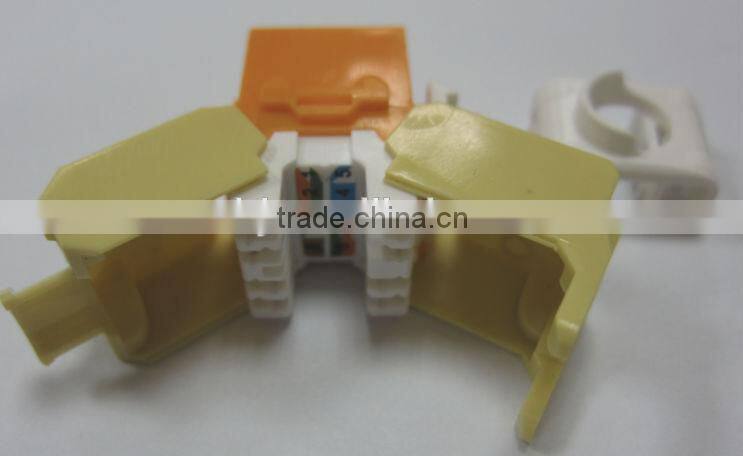

cat6a RJ45 modular jack Feature:
Industry standard:
1)Meet TIA-568-A and TIA/A-568-B
2)Available in Cat5e, T568A, T568B wiring. meeting every cabling requirement
3)High reliability and superior performance
Electrical:
1. Voltage rating: 125 vac RMS
2. Current rating: 1.5 amp
3. Contact resistance: 100 milliohms max
4. Insulation resistance: 1000 megohms min @ 500 vdc
5. Dielectric strength: 750 vac RMS 60Hz, 1min
Environmental:
1. Storage: -40° To +85°
2. Operation: 0° To 70°
Conform to tia/eia 568b category 3
Mates with modular plug conforming to FCC part 68, subpart f.
Mechanical:
1. Housing material: PC UL94v-0
2. Insert material: Flame retardancy ABS UL94v-0
3. PCB material: Fr-4 thickness: 1.6mm
4. Contact material: Phosphor bronze stamp pin t=0.35mm
5. Idc contact material: Phosphor bronze t=0.50mm with nickel plating
6. Wire: Awg 24-26
