UTP Cat6 48 Ports Patch Panel With Keystone Jack
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | DRJ | |
| Model Number | K6U-022 | Type | RJ45 | |
| Application | Microwave | Gender | Female |
Product Description
Specifications
1.patch panel with keystone jack2.UL, CE ,FCC, ETL, RoHS compliance.
3.Meet TIA-568A and TIA568B
4.ODM OEM available

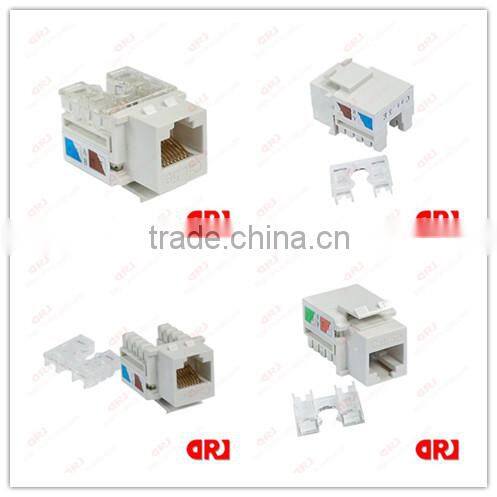

UTP cat6 48 ports patch panel with keystone jack Industry standard:
1)RJ45 connector meet TIA-568-A and TIA/A-568-B
2)Available in Cat5e, T568A, T568B wiring. meeting every cabling requirement
3)High reliability and superior performance
Electrical:
1. Voltage rating: 125 vac RMS
2. Current rating: 1.5 amp
3. Contact resistance: 100 milliohms max
4. Insulation resistance: 1000 megohms min @ 500 vdc
5. Dielectric strength: 750 vac RMS 60Hz, 1min
Environmental:
1. Storage: -40° To +85°
2. Operation: 0° To 70°
Conform to tia/eia 568b category 3
Mates with modular plug conforming to FCC part 68, subpart f.
Mechanical:
1. Housing material: PC UL94v-0
2. Insert material: Flame retardancy ABS UL94v-0
3. PCB material: Fr-4 thickness: 1.6mm
4. Contact material: Phosphor bronze stamp pin t=0.35mm
5. Idc contact material: Phosphor bronze t=0.50mm with nickel plating
6. Wire: Awg 24-26
cat5e,cat6 | tooless jack | white,black |
3U",15U',30U",50U" gold plating | print your logo available | |
