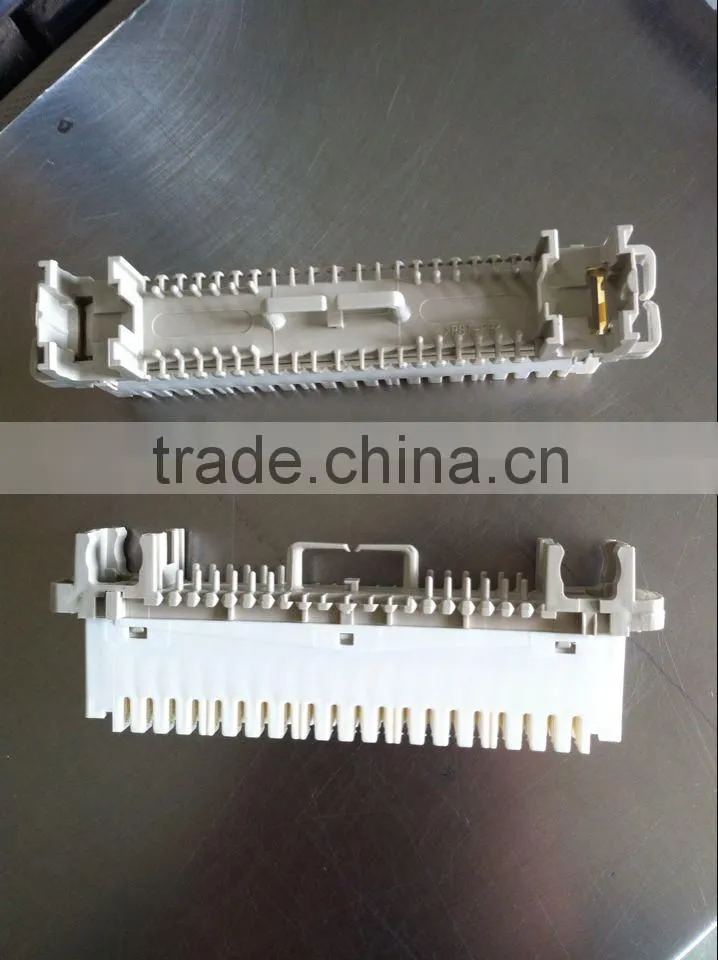

Telecom Accessories 10 pairs Krone Disconnection Module
1.Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
2.The modules are compatible with KRONE LSA-PLUS modules. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
3.Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N ;
4.Internal diameter of connection wire: 0.4-0.65 mm
5.The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard ;
6.Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections ;
7.Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ;
8.Intermediate resistance: no more than 3m ohm under standard examination condition ;
9.Dielectric strength: according to industry standard
10.Specification:10 pairs, 8 pairs, 5 pairs
11.Type: disconnection types and connection types
12.insertion Life: 0.350.65mm conductor: 200 times 0.8mm conductor 50 times
