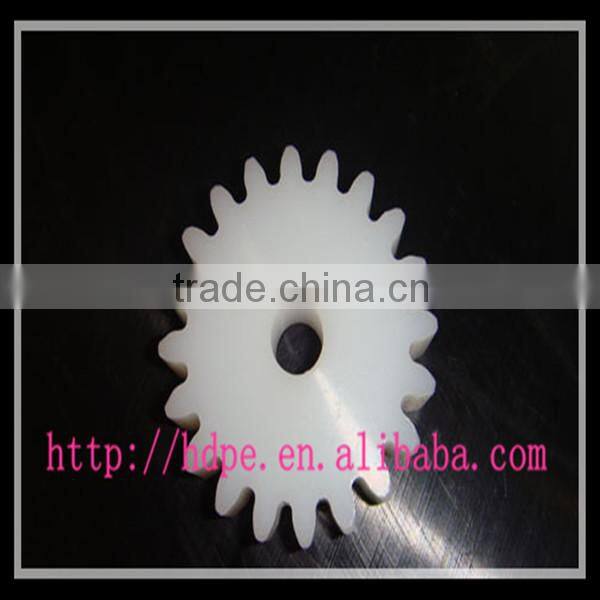

Help CenterHdpe /uhmwpe/polypropylene Plastic Gear and Profiled for Engineering Parts
Related Products
-
Special Raw Material Uhmwpe Plastic Gear ProductsUS$ 3 - 6MOQ: 100 Kilograms -
Anti Abrasion UHMWPE Wheel Profiles ManufacturerUS$ 3 - 8MOQ: 200 Kilograms
-
Special Uhmwpe Shaped Plastic Part PE List of Plastic ProductsUS$ 1 - 6MOQ: 100 Kilograms
-
UHMWPE Profiled Plastic Blocks for Machining China ManufacturerUS$ 1 - 6MOQ: 100 Kilograms
-
Small Plastic Worm Planetary UHMWPE GearsUS$ 3 - 6MOQ: 100 Kilograms
Specifications
Our company main product UPE shaped,Its advantage is that can be made according to customer needs, all kinds of special-shaped.*Virin uhmwpe
*Low water absorption
*Low friction factor
*Excellent self-lubrication
*High wear resistance
Ultra-high molecular weight polyethylene (uhmw-pe) is a kind of linear structure of thermoplastic engineering plastics with excellent comprehensive performance. Ultra high molecular weight polyethylene (uhmw-pe) excellent physical and mechanical properties make it widely used in machinery, transportation, textile, papermaking, mining, agriculture, chemical industry and sports equipment and other fields.
performance of uhmwpe
*Best shock resistance even in low temperature.
*Low frictional factor, and well sliding bearing material
*Lubricity( no caking, in adhesion)
*Best chemical corrosion resistance and stress craze resistance
*Excellent machinery process ability
*Lowest water absorption(<0.01%)
*Paragon electric insulativity and antistatic behavior
*Nice high energy radioactive resistance
*Abrasive resistance which always have in thermoelectricity polymer.
*Density is lower than other thermoplastics (< 1g/m3)
*Long using temperature range: -269°C--90°C
Performance Specs
Items |
Testing Method |
Unit |
UHMW-PE |
|
Physical Property |
Density |
D1505 |
g/cm3 |
0.94-0.98 |
Mechanical Property |
Breaking Strength |
D638 |
N/cm2 |
2900 |
Elongation at Break |
D638 |
% |
350 |
|
Notch Impact Strength |
D256 |
CJ.cm/cm2 |
Not Destroyed |
|
Hardness (Rockwell) |
D747 |
40 |
||
Thermal Property |
Melting Point |
D2117 |
°C |
136 |
Vicat Softening Point |
D1525 |
°C |
134 |
|
HDT(O.46Mpa) |
D648 |
°C |
85 |
|
Expansion Coefficient |
D696 |
10-4/°C |
1.5 |
|
Electrical Property |
Volume Resistance |
D257 |
SL-CM |
1017 |
Breakdown Voltage |
D149 |
Kv/mm |
50 |
|
Dielectric Constant |
D150 |
2.3 |
||
Others |
Water Absorption |
D570 |
% |
<0.01 |
Scaling |
Uneasy |
|||
Application
UHMWPE has excellent abrasion resistance it is often used for lining chutes, hoppers,slideways and wear blocks in aggressive enironments. it is often found in food production environments where high volumes of containers need to be guided along conveyors or production lines. Because its low moisture absorption, it is also found in some high demand areas of marine applications. UHMWPE is sometimes used in cryogenic components due to its low operating temperature abilities.
Customers can make all kinds of special-shaped parts according to the drawing.
Any small size need us to cut , we can satisfy your special need .
Thanks for coming,looking forward to our cooperation.
