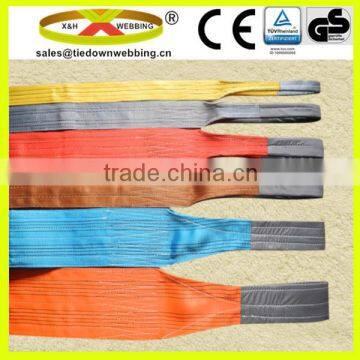

3T soft lifting webbing sling
1) The webbing are manufactured in the sizes upon standard EN1492,using as
basic-material not-cutting pieces of webbing
custom sizes available to fit your needs
2) Each webbing sling is available is stencilled with your name on every mtr - there is a
minimum quantity
3 )We are able to supply all webbing sling in a range of colours, sizes and widths to
suit your requirements
4) We offer webbings colour coded and with the option of the webbing with
or without W.L.L.stripes.
5)popular color of webbing : purple,green,yellow grey,red,brown,blue,orange,
Color and ID marker identify rated capacity
3T soft lifting webbing sling
webbing sling characteristic
1)low dead weight compare to chain.
2)Low initial cost plus long service life.
3)Easy to carry, high strength to weight ratio for easy transportation
4)Strong resistance to chemical, oil and surface abrasion
5)smooth surface won't cause damages to tender objects loaded.
6)Loading surface is wide to reduce the weight at each loading point.
7) Their stretch characteristics help to avoid shock loading problems
8)Conforms to the shape of load to reduce load damage
Sling webbing data
Our products meet to European EN1492 & EN12195, AS1353, ASME B30.9 , Iso 9001 and CE&GS certification.
B.S. : webbing breaking strength
| S.F. 5:1 | S.F. 6:1 | S.F. 7:1 | S.F. 8:1 | ||||||
| ITEM | WIDTH | B.S. | WIDTH | B.S. | WIDTH | B.S. | WIDTH | B.S. | |
| 1T | 25MM | 3125KG | 25MM | 3750KG | 30MM | 4500KG | 50MM | 5000KG | |
| 2T | 50MM | 6250KG | 50MM | 7500KG | 60MM | 9000KG | 60MM | 10000KG | |
| 3T | 75MM | 9375KG | 75MM | 11250KG | 90MM | 13500KG | 95MM | 15000KG | |
| 4T | 100MM | 12500KG | 100MM | 15000KG | 120MM | 18000KG | 120MM | 20000KG | |
| 5T | 125MM | 15625KG | 125MM | 18750KG | 150MM | 22500KG | 150MM | 25000KG | |
| 6T | 150MM | 18750KG | 150MM | 22500KG | 180MM | 27000KG | 180MM | 30000KG | |
| 8T | 200MM | 22500KG | 200MM | 30000KG | 240MM | 36000KG | 240MM | 40000KG | |
| 10T | 250MM | 31250KG | 250MM | 37500KG | 300MM | 45000KG | 300MM | 50000KG | |
| 12T | 300MM | 37500KG | 300MM | 45000KG | 300MM | 54000KG | 300MM | 60000KG | |
| Standard | special | JB/T 8521 | EN1492 | AS1353 | |||||
Webbing sling data
ALWAYS:
1)Store and handle belt slings correctly.
2)Inspect belt slings and accessories before use and before placing into
storage.
3)Follow safe slinging practices, as given overleaf.
4)Position the sling so that the load is uniformly spread over its width
and protect the sling from sharp edges.
5)Apply the correct mode factor for the slinging arrangement.
NEVER:
1)Attempt to shorten, knot or tie belt slings.
2)Expose belt slings to direct heat or flames.
3)Use belt slings outside the temperature range stated below without
consulting the supplier.
4)Expose belt slings to chemicals without consulting the supplier.
Shock load belt slings.
5)Use belt slings which are cut or which have loose or damaged
stitching.
6)Use a sling with a missing/damaged label or illegible markings
Packing way
each piece be shrink packing with certificate inside/carton/ply-wooden pallet,
or as customer request.
Application
We supply the offshore, marine, construction, engineering, power, defence and transport industries.
Our products
web slings
ratchet lashing
tie down webbing
sling webbing
Why did we choose polyester yarn ?
Polyester's lower stretch value makes it ideal for tie down and slings applications. It is strong and lightweightlike nylon webbing, but without the stretch of nylon. Its strength andflat profile makes it useful in some applications in place of traditional rop.
Polyester webbing is resistant to abrasion, UV rays and water absorption so it's great for tie down, cargo strapping, E-track use, winch straps, ratchet straps and tow straps. And by simply adding your own tie down hardware, you can create your own custom strapping.
Our advantage
1)Long and stable relationships with material suppliers.
2)Our staff – the majority of whom have played key roles within the company for many years
3)Great transportation -- Qingdao port, which is one large export –import harbor in China.
Therefore, our products are practical and durable. Having high quality is always X&H Webbing’s aim
If you are interested in our products, please don't hesitate to contact us or send e-mail.
