ratchet strap
- 200 Ton / Tons per Month
- Qingdao port or any in China
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | X&H | Model Number: | ratchet strap |
Material: | 100% high tenacity polyester yarn | Width: | 25mm-100mm | Breaking Strength: | 500kg-50T |
Product Description

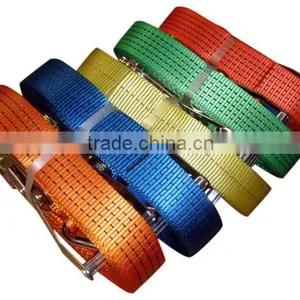

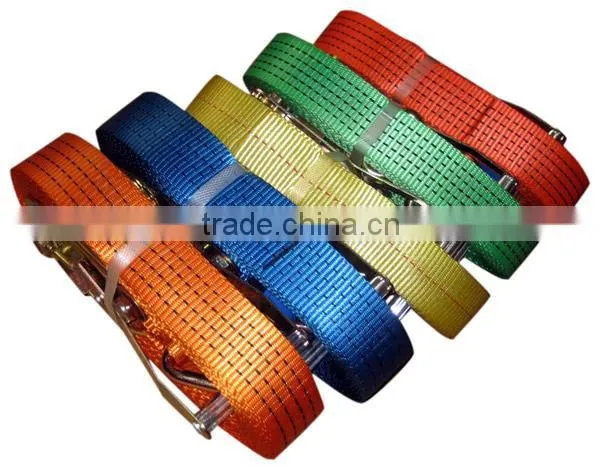

ratchet strap assembly
1)Ratchet lashings are used for tying down and strapping loads whilst transporting, shifting or moving them. Ratchet straps have replaced wires, traditional jute ropes and chains used for cargo and load transportation by road and rail.
2)Ratchet lashing straps are available in a large variety of configurations of different ratchets and end fittings.
3)Ratchet straps are used by many hauliers across the UK for transportation, leisure use and commercial use.
4)Ratchet lashing straps are a simple and cost effective way of securing a load on a commercial vehicle or trailer. If you are using different end fittings and webbing lengths, we can supply ratchet straps to suit these or any other requirements. All webbing is made from polyester and wear sleeves are readily available.
5)Webbing can also be customer printed with your company logo or other design. Where applicable all lashings and straps are fully compliant with EN12195, the European load restraint standard.
25MM truck ratchet strap assembly
Truck ratchet strap assembly characteristic
1) Meet the Standard Of EN12195-2 and Asme B30.90,
2)100% High Tenacity Polyester of Lashing Strap,
3)Low Elongation In Popular Colors,
4)Used to Secure A Load to A Flatbed Trailer, Truck or Moving Van.
5)Individual printing possible
6)Low dead weight compared to chains
7) Ratchet lashing strap according to EN 12195-2
8)Maximum lashing capacity 800kg
Ratchet lashing webbing data
Our products meet to European EN1492 & EN12195, AS1353, ASME B30.9 , Iso 9001 and CE&GS certification.
B.S. : webbing breaking strength
Standard:EN12195
ITEM | WIDTH | BREAKING LOAD | COLOR |
WL25-0.5T | 25 | 650KG | |
WL25-0.8T | 25 | 1000KG | |
WL25-1T | 25 | 1200KG | |
WL25-1.5T | 25 | 1700KG | |
WL35-2T | 35 | 2100KG | |
WL35-3T-A | 35 | 3300KG | |
WL35-3T-B | 35 | 4500KG | |
WL50-3T | 50 | 3300KG | |
WL50-4T-A | 50 | 4600KG | |
WL50-4T-B | 50 | 5200KG | |
WL50-4T-C | 50 | 6200KG | |
WL50-5T-A | 50 | 5400KG | |
WL50-5T-B | 50 | 6400KG | |
WL50-5T-C | 50 | 7500KG | |
WL75-10T | 75 | 11000KG | |
WL75-11T | 75 | 12100KG |
Packing way
each piece be shrink packing with certificate inside/carton/ply-wooden pallet,
or as customer request.
Application
The Ratchet Lashing system is used for securing cargo while transporting, shifting or storage. It is a modern, light weight and thoroughly reliable method of securing all types of load across an entire spectrum of requirements. It offers significant advantages over any other securing system.
Ratchet Lashing is a Reusable, Cost effective tie-down using polyester webbing & Ratchet Buckle and has replaced ropes, chains and wires used for transportation.. The Ratchet Buckle provides the tensioning force. The tension is uniform and locking mechanism ensures that the tension is retained till it is unlocked.
Our products
ratchet lashing
Sling webbing
tie down webbing
sling webbing
Why did we choose polyester yarn ?
Polyester's lower stretch value makes it ideal for tie down and slings applications. It is strong and lightweightlike nylon webbing, but without the stretch of nylon. Its strength andflat profile makes it useful in some applications in place of traditional rop.
Polyester webbing is resistant to abrasion, UV rays and water absorption so it's great for tie down, cargo strapping, E-track use, winch straps, ratchet straps and tow straps. And by simply adding your own tie down hardware, you can create your own custom strapping.
Our advantage
1)Long and stable relationships with material suppliers.
2)Our staff – the majority of whom have played key roles within the company for many years
3)Great transportation -- Qingdao port, which is one large export –import harbor in China.
Therefore, our products are practical and durable. Having high quality is always X&H Webbing’s aim.
If you are interested in our products, please don't hesitate to contact us or send e-mail.
