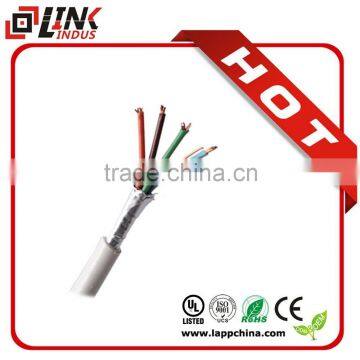

4C control cable 0.5mm sq cable fire alarm
- 90000 Kilometer / Kilometers per Month
- SHENZHEN OR ANY PORT OF CHINA
- T/T D/P D/A Credit Card PayPal
You May Like
-
4C fplp fire alarm cable, 0.5mm sq alarm cable, TC 500m fire alarm cable
-
TCCA 2PR 0.22mm2 alarm cable, 0.5mm sq alarm cable, TC 500m drum alarm cable
-
100m system control cable, 2PR/4PR/8PR control cable, 8numbers control cables
-
TCCA 2PR 0.22mm2 control cable, 0.5mm sq control cable, TC 500m drum control cable
-
2016 4 cores copper wire LSZH LSOH 2pair twisted high quality control cables for building
-
2016 high quality 4cores RVVP shield KV control cable
Product Details
Place of Origin | Guangdong, China | Brand Name | LINKINDUS | |
Model Number | 4C control cable 0.5mm sq cable fire alarm | Application | Industrial | |
Conductor Material | Copper | Jacket | PVC | |
Insulation Material | PVC |
Product Description
4C control cable 0.5mm sq cable fire alarm
For the purpose of producing CABLES due to the rapid developing requirements of the century,
Lapplink was established in 2008 in Jieyang city Guangdong of China. We moved overseas department to Shenzhen in 2015.
Lapplink has started its production under the principle: “high quality and on time production”.
• To increase the awareness of quality understanding by promoting the staff training at every position.
• To provide suitable price, quality and term advantages by creating a constructive business environment with subcontractors
• To provide customer satisfaction at the maximum level.
• To use our limited sources with minimum waste/ scrap ratio and by this way help to protect the environment.
• To provide sustainability through quality improvement studies.
• To provide the understanding of our quality policy by all of our staff and to provide its implementation.
4C control cable 0.5mm sq cable fire alarm
Specification
1)Conductor: (2-8cores are available)
Bare Copper/CCA Stranded or Solid Conductor
Flexible section in 0.8sqmm,1.0mm 1.5mm,ect
2)Insulation:
PVC flame retardant/PE
3)Drain wire: (Options)
In Stranded or Solid Bare Copper,CCA,CCS
4)Shielding: (Options)
Aluminum/Polyester Foil Coverage
5)Outer Jacket:
General PVC,PVC flame retardant,LSZH Sheath,Polyethylene Sheath
6)Color
Red White gray,ect
Stranded Wire
Item No. | Decription | Conductor | Insulatioon | Jacket | Packing | ||
Nom.Thick | Nom.Diam | Nom.Thick | Nom.Diam. | ||||
ALARM | TC/BC/CCA/TCCA | 2*7*0.2 | 0.22 | 1.05 | 0.45 | 3.1 | Box |
4*7*0.2 | 0.22 | 1.05 | 0.45 | 3.4 | |||
6*7*0.2 | 0.22 | 1.05 | 0.5 | 4.1 | |||
8*7*0.2 | 0.22 | 1.05 | 0.5 | 4.5 | |||
10*7*0.2 | 0.22 | 1.05 | 0.6 | 5.1 | |||
12*7*0.2 | 0.22 | 1.05 | 0.6 | 5.5 | |||
14*7*0.2 | 0.22 | 1.05 | 0.7 | 6.1 | |||
16*7*0.2 | 0.22 | 1.05 | 0.7 | 6.4 | |||
20*7*0.2 | 0.22 | 1.05 | 0.8 | 7.2 |
Solid Wire
Description | Conductor Spec. | Insulation | Jacket | Packing | ||
Nom.Thick.(mm) | Nom.Diam(mm) | Nom.Thick.(mm) | Nom.Diam.(mm) | |||
Fire Alarm Cable | 2*1.0 | 0.6 | 2.4 | 1.0 | 6.8 | Box Coil Drum Paper reel Plastic reel Wooden reel |
2*1.5 | 0.7 | 2.8 | 0.8 | 7.2 | ||
2*2.5 | 0.8 | 3.4 | 1.0 | 9 | ||
4*0.5 | 0.4 | 1.6 | 1.2 | 6.2 | ||
4*1.0 | 0.6 | 2..4 | 0.8 | 7.4 | ||
4*1.5 | 0.7 | 2.8 | 0.8 | 8.3 | ||
4*2.5 | 0.8 | 3.4 | 1.1 | 10.3 |
Q1. The MOQ Order to 4C control cable 0.5mm sq cable fire alarm ?
A1 : 100 rolls .
Q2. How to shipping ?
A2 : The best choice is shipping By Sea . Because cable is very heavy , it's too expensive by air .
By Sea : If you have freight forwarder , they can handle shipping for you . If you don't have it , we can provide the cheapest shipping cost to you .Or send our freight forwarder informaitons to you contact directly .
By Air : You can try to contact with DHL,Fedex,UPS express etc. after got weight and CBM from us . But it's more cheaper by China express agent , you can contact with our sales to get the cheapest freight cost .
Q3. Payment term ?
A5 : T/T 30% deposit ,70% against the copy of BL . For our familiar customer , we can support good credit payments date
