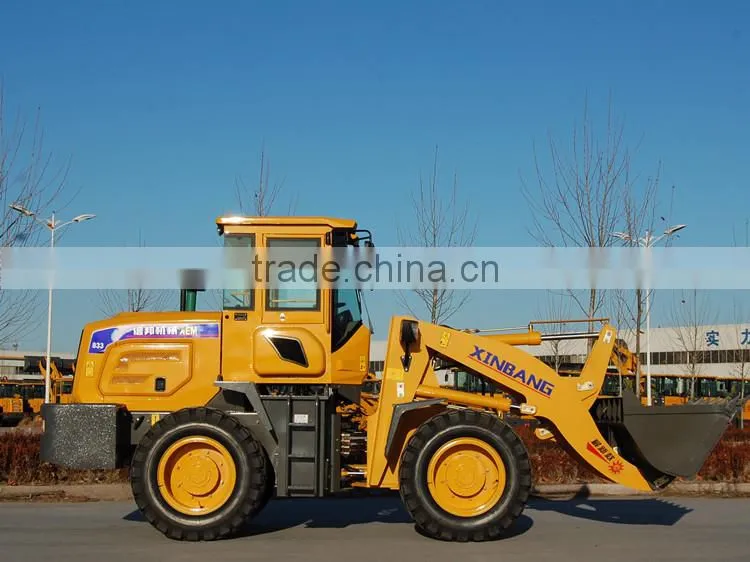

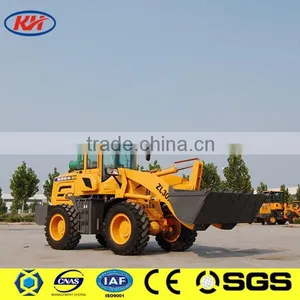

shandong 3T mini loader with weichai engine and joystick
l Well-known engine ,high power and torque, low fuel consumption
l Countershaft power shift gearbox, hydraulic torque convertor.
l Reinforced axle, better passing ability, stronger traction pull.
l Full hydraulic steering, hydraulic control work device
l Central articulated frame, small turning radius, easy operation

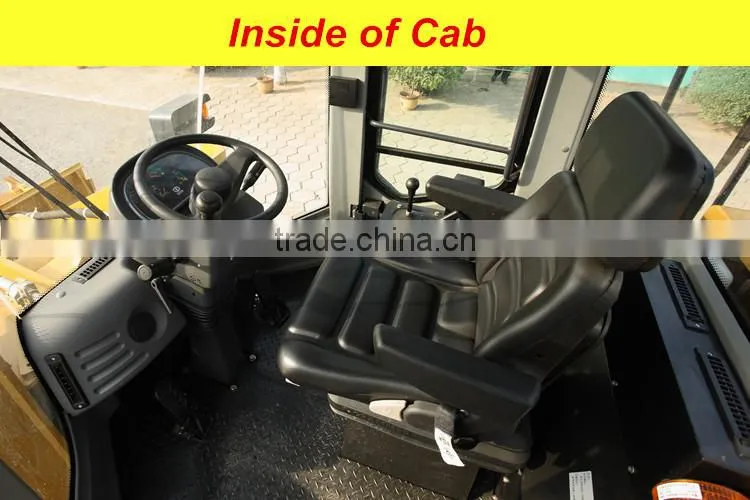

l Enlarged humanization design cab.Drive convenient and comfortable
l Hydraulic Disk Brake on 4 wheels, manual Drum-Type Shoe Brake
l The openable engine hood made in steel, and suitable for maintenance
l Pilot hydraulic implement controls make operate easy and comfortable
l More than 10 kinds of optional equipment
| System | Items | ZL30F |
| Performance | Rated Load(ton) | 2.8 |
| Total weight(kg) | 6800 kg | |
| Rated Bucket Capacity(m3) | 1.5 m3 | |
| Max.Gradeability | 30° | |
| Dumping Height(mm) | 3500 mm | |
| Overall Dimemsions(mm) | 6400*2180*2900 | |
| Min.Turning Radius(mm) | 4800 mm | |
| Engine | Model | YTO 4108 turbo/YUCHAI 4105 turbo |
| Type | In-line,Water-colled,Four-stroke,Direct injection, four- cylinder | |
| Rated Power (kw) | 74.9 kw/85kw | |
| Rated Speed( rpm) | 2400rpm | |
| Transmission | Gear box | countershaft powershift gearbox |
| Torque converter | YJ280 | |
| Gear Shift | 2F2R | |
| Max.Speed(km/h) | 30 km/h | |
| Model of Axle | Hub Reduction Axle | |
| Wheel Base(mm) | 2400 mm | |
| Hydraulic System | Hydraulic System Pressure(Mpa) | 16 Mpa |
| Raising Time(s) | ≤ 5.5 s | |
| Total Cycle Time(s) | ≤ 10.0 s | |
| function of leveling automatically | Yes | |
| Brake system | Service Brake | Hydraulic,Disk Brake on 4 wheels |
| Parking Brake | manual Flexible Shaft Control Disc Brake | |
| Tyre | Type Specification | 16/70-24 |
| Front Tyre Pressure(Mpa) | 0.3 Mpa | |
| Rear Tyre Pressure(Mpa) | 0.28 Mpa |
1993,Shandong XinBang Machinery Co., Ltd founded in Qingzhou
2003,ZL16F launched, the first countershaft wheel loader of Shandong XinBang
2007, 100 units ZL30 WL were exported abroad for the first time.
2008, the total sales volume exceeded 10,000 units.
2009, 20 units ZL18 entered to Germany, European market.
2010, the total sales volume exceeded 20,000 units.
2011, Shandong XinBang invested 400,000,000RMB to establish Shandong kanghong Machinery Co., Ltd (SDKH)
2013, Shandong kanghong Machinery Co., Ltd put into production formally.
The Professional Certifications we have:
CE. ISO .BV

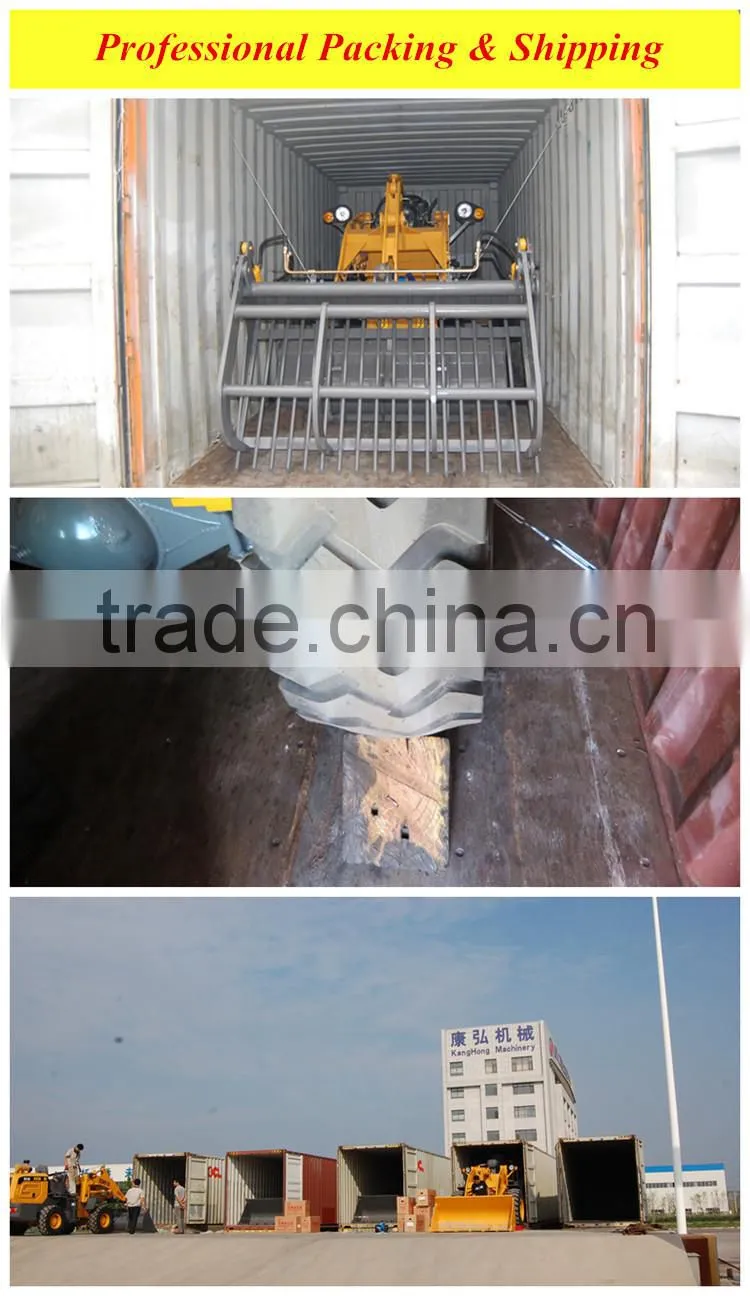

Shipping: Under the price of the FOB, we can help you shipping to QINGDAO port, in China. If you order us under the price of CFR or CIF, we would shipping according to your requirements.

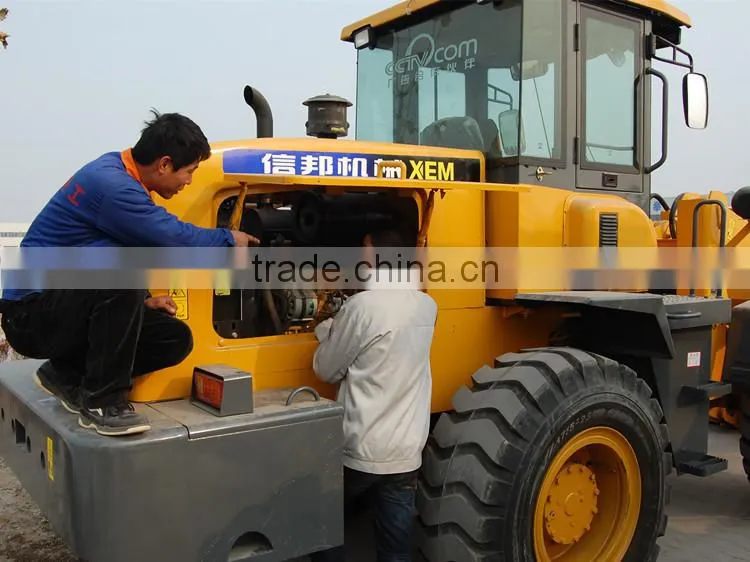

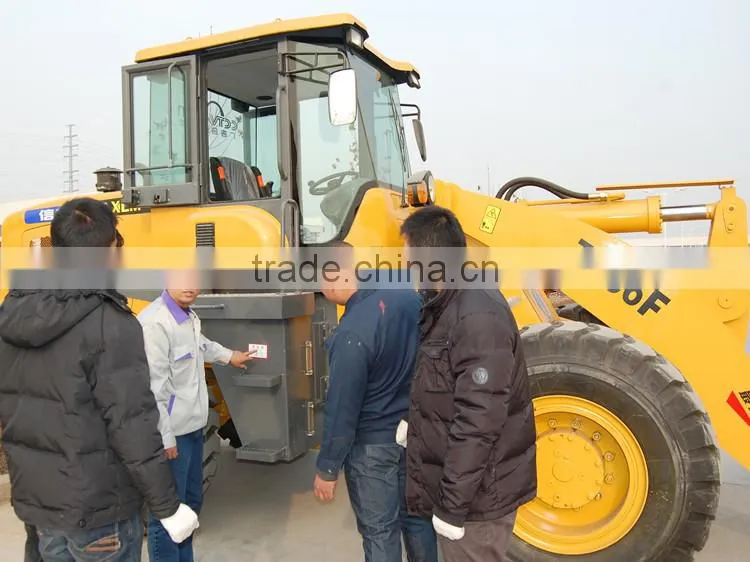

1.We provide professional technical support and product training support services before sales, offer 7x24 after-sales service and training of overseas technicians.
2.Kanghong engineers keep seeking new ways to innovate all of our wheel loaders, which are robust, reliable and could tackle anything at anytime.
3.One year maintenance parts will be delivered along with loader for free.
I am Mike.Always at your service!
