why choose us?
We are more professional.
1.we have 10 years history to produce it.
2.We have more than 300 workers,50 engineers,plant area of more than 70000m2.
3.CE and ISO certification,quality assured.

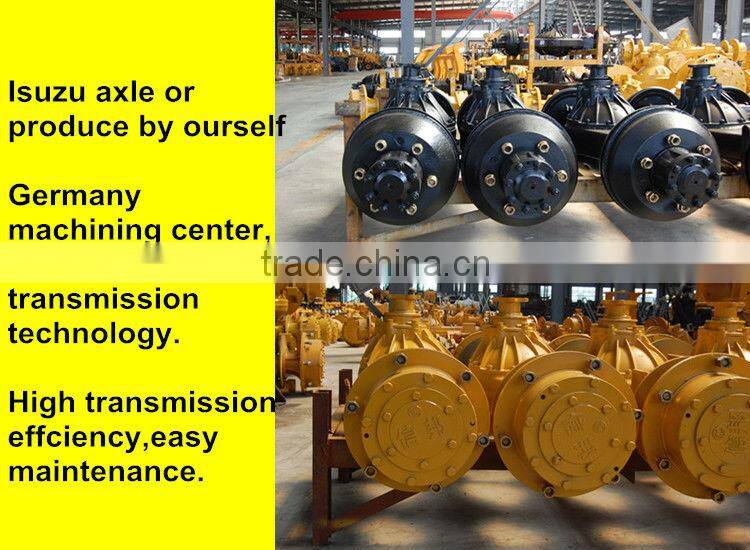

4.All of the wearing parts come form famous supplier,Caterpillar transmission technology,Isuzu axle,high quality.
5.The first electrophoresis and electrostatic powder spraying line in the field of engineering machinery in China.
6.Each product through rigorous testing before leaving the factory.
7.The best after-sales services,using more ease.
8.We can supply you with OEM and design products as your request.

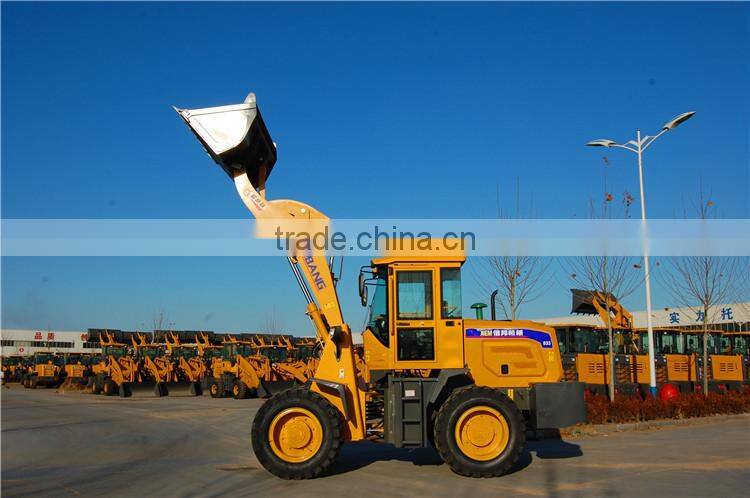

| ZL30F | ||
| Performance | Rated Load | 2800 kg |
| Total weight | 6800 kg | |
| Rated Bucket Capacity | 1.5 m3 | |
| Max.Gradeability | 25° | |
| Dumping Height | 3500 mm | |
| Dumping Reach | 930 mm | |
| Raising Time | ≤ 5.5 s | |
| Total Cycle Time | ≤ 10.0 s | |
| Overall Dimensions(LxWxH) | 6400x2180x2900 | |
| Min.Turning Radius | 4800 mm | |

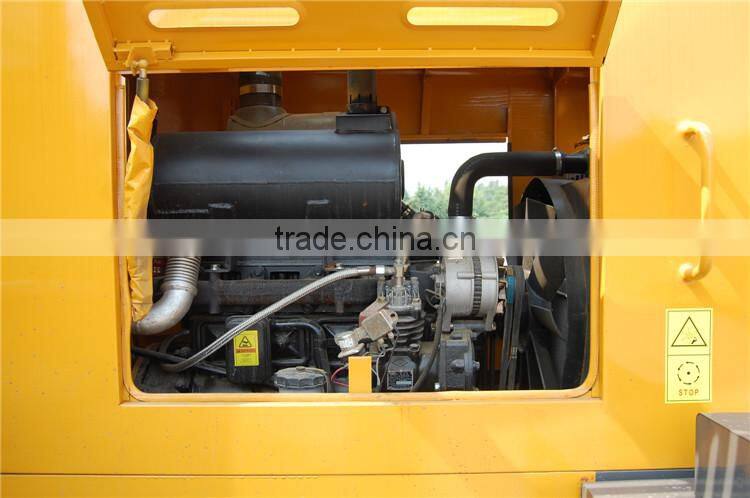

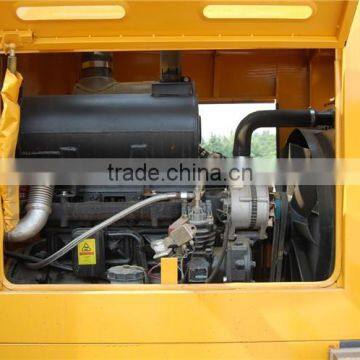

| Engine | Model | YTO 4108 diesel engine |
| Type | In-line,Water-cold,Four-stroke,Direct injection | |
| Rated Power | 74.9 kw | |
| Rated Speed | 2400 rpm | |
| Gear box | Hydraulic Torque Converter | 280 Split Torque Converter |
| Gear Shift | 2 forward,2 backward | |
| Max.Speed | 30 km/h | |
| Drive Axle | Model of Axle | 25F Hub Reduction Axle |
| Wheel Base | 2490 mm | |
| Drive | Mode | 4-way Drive |
| Hydraulic System | System Working Pressure | 16 Mpa |
| Brake system | Service Brake | Sing line,Hydraulic,Expansion-shoe Brake on 4 wheels |
| Parking Brake | Hand Flexible Shaft Control Disk Brake | |
| Tyre | Type Specification | 16/70-24 |
| Front Tyre Pressure | 0.3 Mpa | |
| Rear Tyre Pressure | 0.28 Mpa | |
Famous engine,home-made Gearbox and axle,high quality hydrocylinder insure the produce have a high qulity.
the first electrophoresis line in the field of construction machinery. automatic product line,high productivity,reliable quality.
professional packaging,secure,ensure the goods safety.

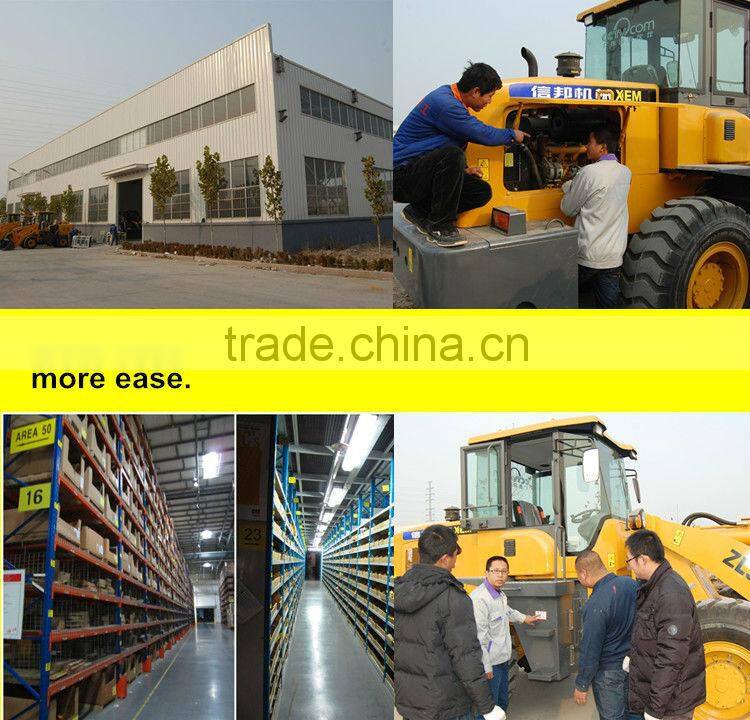

professional services person and parts center,long time warranty, use more ease.
I'm kevin,don't hesitate to contact me! only an inquiry,the rest will be left to us ..
