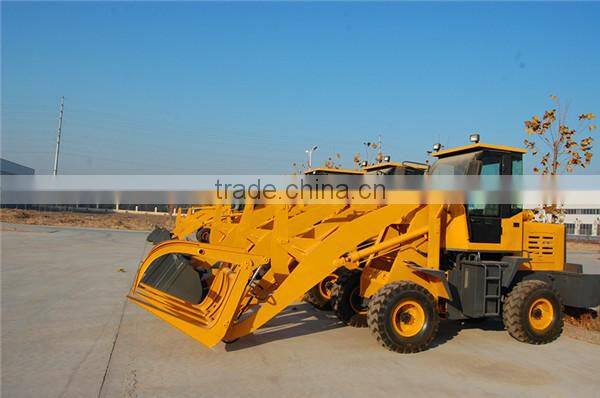

2016 new product kanghong ZL10F 1.0TON milk van fiber loader sleek loader rickshaw
- 500 Unit / Units per Month
- Qingdao
- T/T
Product Details
Condition: | New | Brand Name: | kanghong | Model Number: | ZL10F |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 4800x1600x2470 | Rated Load: | 800kg | Certification: | CE/ISO |
Warranty: | 12 months quality assured | After-sales Service Provided: | Overseas third-party support available |
Product Description
2016 new product kanghong ZL10F 1.0TON milk van fiber loader sleek loader rickshaw
Performance | Rated Load | 1000 kg |
Total weight | 2700 kg | |
Rated Bucket Capacity | 0.4 m3 | |
Max.Gradeability | 30° | |
Dumping Height | 2700mm | |
Overall Dimemsions(LxWxH) | 4800x1600x2470 | |
Min.Turning Radius | 3900mm | |
Engine | Model | changchai L28 diesel engine |
Type | In-line,Water-cooled,Four-stroke,Direct injection, single- cylinder | |
Rated Power | 20 kw | |
Rated Speed | 2200 rpm | |
Transmission | Gear box | countershaft powershift gearbox |
Torque converter | Stick Shift,without TC | |
Gear Shift | 2 forward,1 reverse | |
Max.Speed | 25 km/h | |
Drive Axle | Model of Axle | Isuzu Axle |
Wheel Base | 1950 mm | |
Hydraulic System | System Working Pressure | 16 Mpa |
Raising Time | ≤ 4.5 s | |
Total Cycle Time | ≤ 9.0 s | |
function of leveling automatically | Yes | |
Brake system | Service Brake | Hydraulic,Expansion-shoe Brake on 4 wheels |
Parking Brake | No parking brake | |
Tyre | Type Specification | 825-16 |
Front Tyre Pressure | 0.3 Mpa | |
Rear Tyre Pressure | 0.28 Mpa |
2014 New zl10f mini loader shovel agricultural equipment for sale with CE low prices alibba China
1.well-known engine brand, low noise, low fuel consumption, reliable operation and long service life.
2.Countershaft design, power-shift gearbox,Three elements single stage torque converter easy to operate
3.Split flow of single pump for working hydraulic system, significant effect of energy conservation;
4.Double sealed hydraulic pipeline joints with 24° awl and O ring of international standard, avoids oil leakage obviously;
Safe and reliable disk brake system
5.Working device with automatically leveling ability at high position;
6.Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;
Integral, luxury instrument board;New, luxury cabin.
7.Optimized electric system .key electric elements are imported from EU and US,and the system reliability and stability.had been improved
8.New cooling system improves performance, -20~+40 ambient temperature capability
