8/10/12/24/30/32 Working Station CNC Turret Punch Press/CNC punching machine
We focus on advanced technology!
8/10/12/24/30/32 Working Station Solar Water Heater Production Line CNC Turret Punch Press
with digital feeder

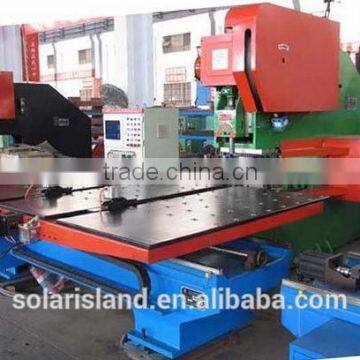

TS25 Series CNC turret punch press is specially designed for solar water heater production line.
Working piece material could be stainless steel or GI.
Thickness range for stainless steel: 0.4-0.8mm
For India market, GI thickness is 2.0-2.5mm. CNC turret punch press should be hydraulic type
Explanation of working positions Customized :
Inner tank

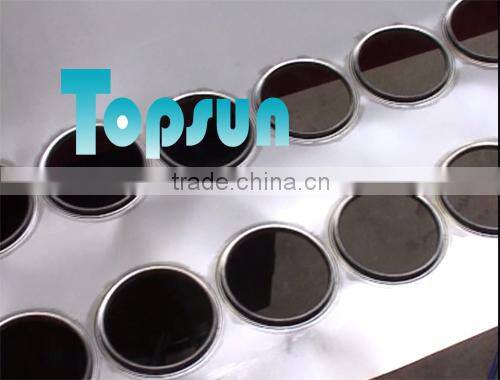

For Dia. 58 solar vacuum tube hole---Dia. 63 hole punching and drawing
---Dia. 63 hole flanging
---Dia. 25 inlet/outlet pipe hole punching and drawing
---Dia. 25 hole flanging
Outer tank
For Dia. 58 solar vacuum tube hole---Dia. 63 hole punching and drawing
---Dia. 28 inlet/outlet pipe hole punching and drawing
--- 9*25 long hole of tube support
A. Features of performance
a.1: Standard full automated numerical control.
a.2: Special system for numerical control punch press, carrying out field programming and back-stage programming.
a.3: Allocates with RS232 standard interface, network card.

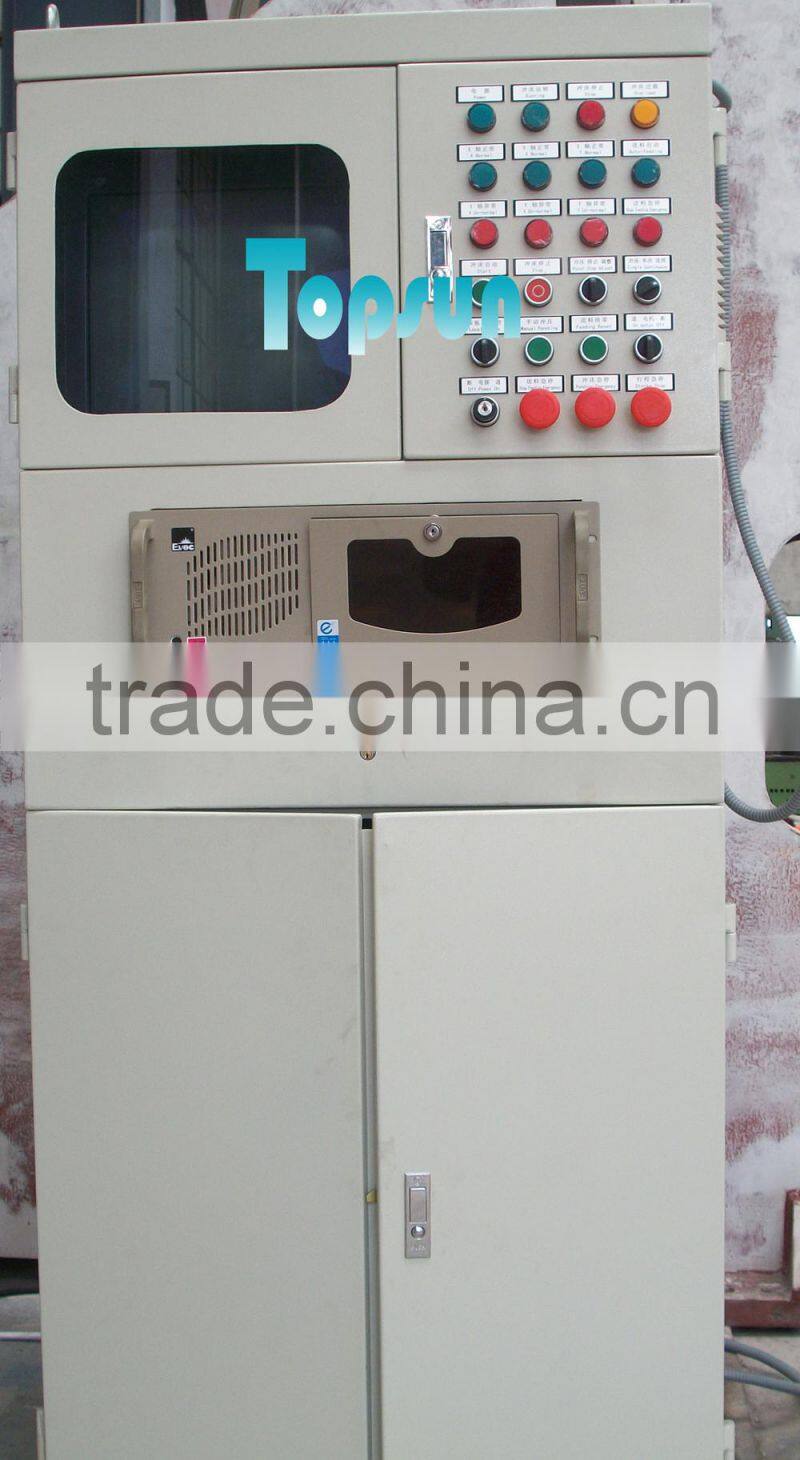

a.4: Industrial grade computer control, with features of anti earthquake, taper-proof, friendly interface and simple operation.
a.5: 80G hard disk for large capacity files
a.6: Pulse encoder semi-closed loop feedback
a.7: Servo driver and motor made in Taiwan
a.8: Large lead ball screw made in Taiwan ensures high productivity and high processing precision

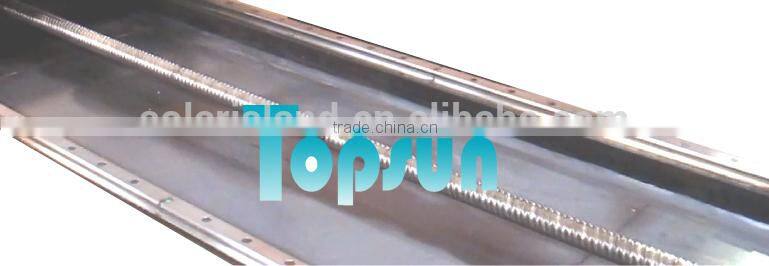

a.9: Precision linear guide rail made in Taiwan ensures high precision and long life.
a.10: Branded coupling ensures durable and high correction co efficiency.
a.11: Autocad ensures graphic automatic conversion.
a.12: Provides with mould database with CAD drawing. Preview drawings in CAD files
a.13: Provides with origin locator. After program execution, machine positions automatically and brings out large batch production.
a.14: One-key operation with large batch production, simple and fast.
a.15: Machine frame adopts steel sheet welded-structure. Ensures good rigidity, less performance, high shut height, long guide of moulds. With performance of simple operation, reliable, low noise and long life span.
a.16: Adopts pneumatic pincer clamp to prevent steel sheet from scratches.
a.17: Adopts universal steel ball or brushes to prevent SS sheet from scratches
a.18: Protective sleeves with motor cable ensures oil-proof, water-proof and pollution-proof

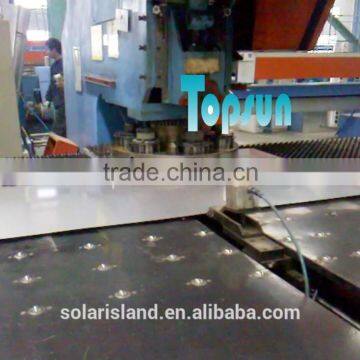

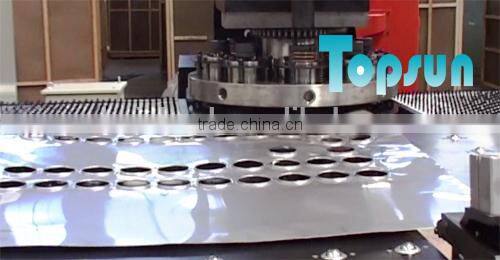

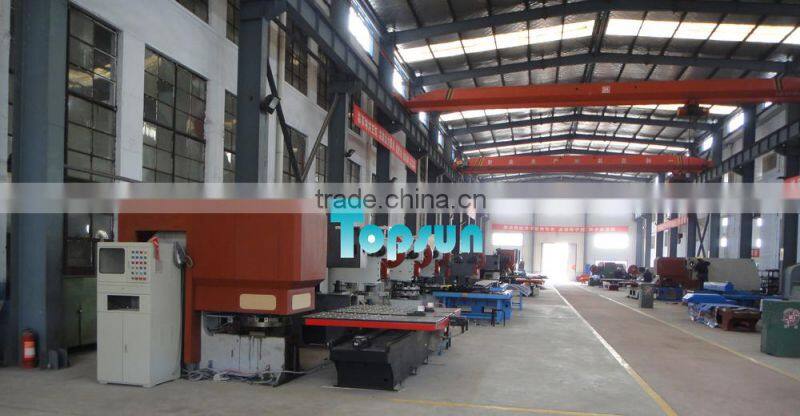

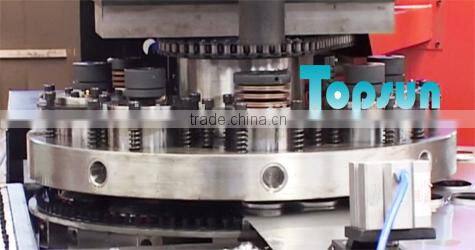

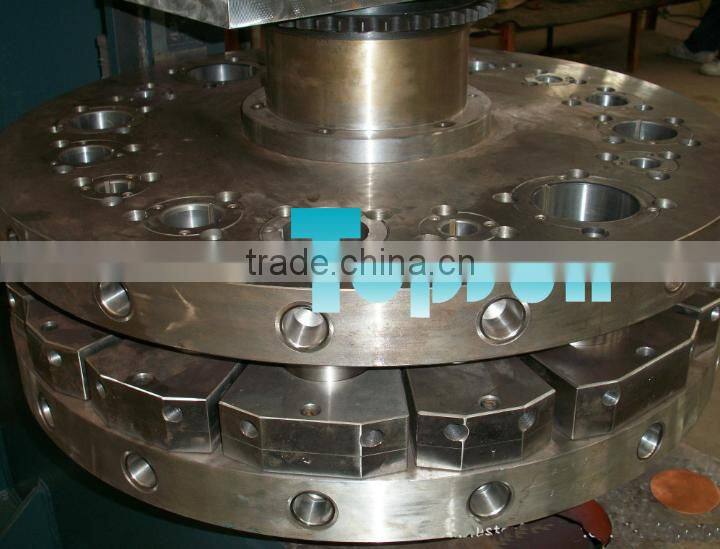

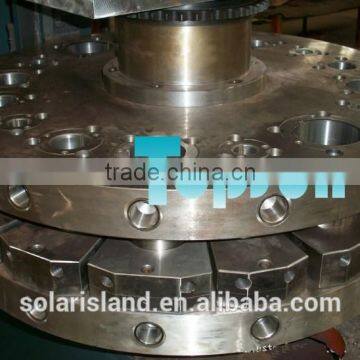

Work site Ductile iron thick turret with high strenght

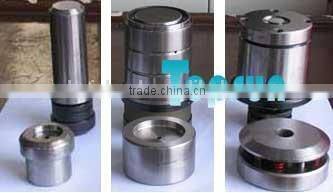

Patened molds with high quality Guide screw with high durability made in Taiwan
Automated re-positioning Special CNC control system

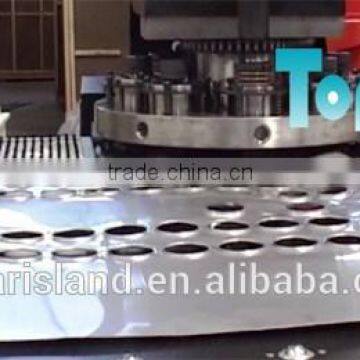

Perfect punching quality
B. Technical parameters
Main technical parameters of digital feeder—3000*1250
Item | Description | Unit | Type |
1 | Rated pressure of punch press in conformity with | T | 6.3-100 |
2 | Feeding precision | Mm | ±0.10 |
3 | Feeding speed | m/min. | 30(max) |
4 | Speed setting | stepless | |
5 | Max. sheet size to be processed | Mm | 3000*1250 |
6 | Thickness of sheet | mm | 0.3-0.5mm |
7 | X/Y axis rated stroke | mm | 3000/1250 |
8 | Qnty. of pincer clamp | Pc | 3 |
9 | Air source | MPa | 0.6-0.8 |
b.2: Base technical parameters of solar water heater NC press
Item | Description | Unit | Type |
1 | Rated pressure | Kn | 250 |
2 | Structure of machine | Open type | |
3 | Distance from slide to bottom dead center at nominal force | mm | 5.5 |
4 | Slide stroke | mm | 70 |
5 | Number of slide stroke | Times/min. | 80 |
6 | Number of mould |
| 8 |
6 | Max. shut height | Mm | 180 |
7 | Regulation variable of shut height | mm | 70 |
8 | Distance from slide center to machine body | mm | 1250 |
9 | Press accuracy | mm | ±0.10 |
10 | Number of control shaft |
| 3pcs |
11 | Air pressure | Mpa | 0.6 |
12 | Motor type/power | KW | Y132S-8/2.2Kw |
