Home > Packaging & Printing > Package & Conveyance > Air Dunnage Bags > Excellent Quality High Strength Kraft Paper Bag Fengxian Dunnage Bag

Excellent Quality High Strength Kraft Paper Bag Fengxian Dunnage Bag

Excellent Quality High Strength Kraft Paper Bag Fengxian Dunnage Bag photo-1
US$ 0.99 - 7 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MM
Model Number:
MM-K1224
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name MM
Model Number MM-K1224

Specifications

kraft paper bag fengxian dunnage bag
1.Eco-friendly and Recyclable
2.Free samples are available.
3.Size can be customized.

Excellent quality high strength kraft paper bag fengxian dunnage bag



Product Description

Specification of kraft paper bag fengxian dunnage bag:



Dunnage air bag
Model No.Size/mmWeight/kgBear strenth/T  Void fill/mm Cargo Height/mm
MM-K0510500*1000 0.3 2.834 100-250 900
MM-K0515500*1500 0.38 2.5 100-250 1400
MM-K0611600*1100 0.38 2.9 100-300 1000
MM-K0612600*1200 0.35 3 100-300 1100
MM-K0615600*1500 0.6 3.1 100-300 1400
MM-K0812800*1200 0.54 3.45 100-400 1100
MM-K0816800*1600 0.62 3.5 100-400 1500
MM-K0818800*1800 0.77 3.9 100-400 1700
MM-K0912900*1200 0.59 3.9 100-450 1100
MM-K0918900*1800 0.86 5-7 100-450 1700
MM-K10121000*1200 0.65 5-7 100-500 1100
MM-K10161000*1600 0.85 5-7 100-500 1500
MM-K10181000*1800 0.86 5.45 100-500 1700
MM-K10201000*2000 1.04 5-7 100-500 1900
MM-K10221000*2200 1.16 5-7 100-500 2100
MM-K10241000*2400 1.12 5-7 100-500 2300
MM-K12181200*1800 1.1 5-7 100-600 1700
MM-K12201200*2000 1.12 5-7 100-600 1900
MM-K12221200*2200 1.37 5-7 100-600 2100
MM-K12241200*2400 1.49 5-7 100-600 2300





Primarily, the gap width of container relates to the width of dunnage bag, so we usually choose it according to the following ways:

Within 200 mm void - recommended 500 mm width dunnage air bag.
Within 300 mm void - recommended 800 mm width dunnage air bag.
Within 400 mm void - recommended 1000 mm width dunnage air bag.
Within 500 mm void - recommended 1200 mm width dunnage air bag.
But, if gap is more than 500 mm, it needs our sales staff to make free and special program for you.
Next, measure the overall height and depth of the goods gap. Because gap height determines dunnage bag’s length.
What’s more, the width of dunnage bag depends on the comprehensive consideration of goods’ gap depth and width.



Picture of kraft paper bag fengxian dunnage bag:

Excellent quality high strength kraft paper bag fengxian dunnage bag

Excellent quality high strength kraft paper bag fengxian dunnage bag



Manufactured Goods of kraft paper bag fengxian dunnage bag:

Excellent quality high strength kraft paper bag fengxian dunnage bag



Dunnage Air Bag with Small Air Valve and Big air Valve:

 Excellent quality high strength kraft paper bag fengxian dunnage bag



Using Image of kraft paper bag fengxian dunnage bag:

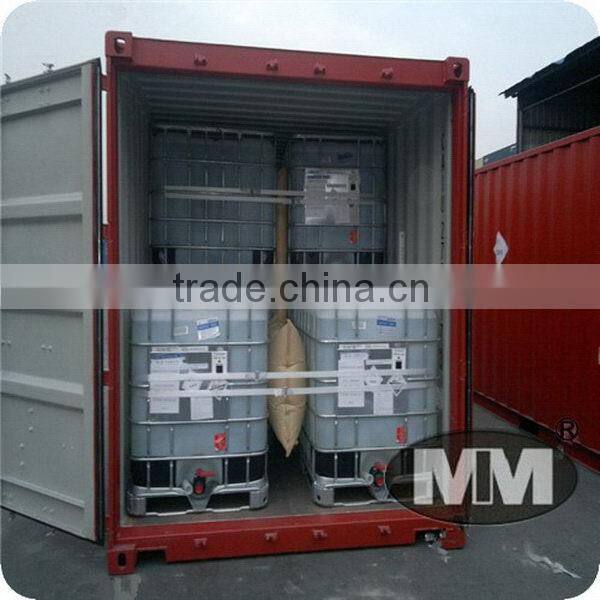

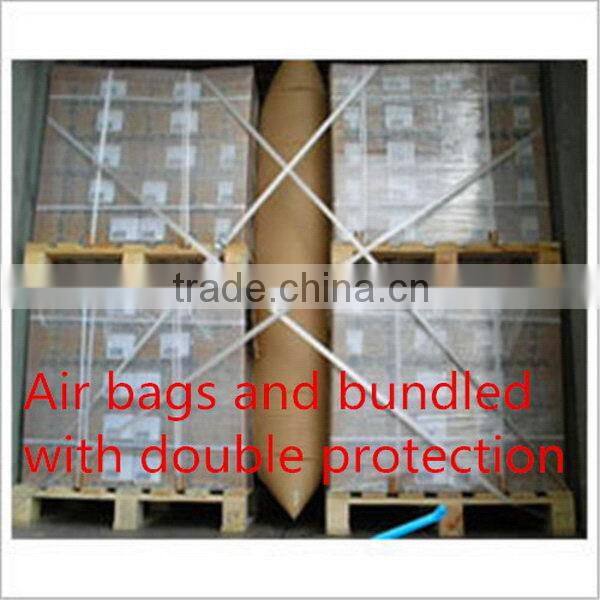

1. Container loading images:

Excellent quality high strength kraft paper bag fengxian dunnage bag



2. Container sketch:

Excellent quality high strength kraft paper bag fengxian dunnage bag

 3. The difference between not using and using of kraft paper bag fengxian dunnage bag:

Excellent quality high strength kraft paper bag fengxian dunnage bag

 4. Some wrong usings of kraft paper bag fengxian dunnage bag:

Excellent quality high strength kraft paper bag fengxian dunnage bag



Operating procedure of kraft paper bag fengxian dunnage bag:
Step 1: you need to prepare tools for Inflate the air bag: air compressor, air guns, trachea, air bags.
Step 2: Air compressor good power supply, connect the trachea and air compressor, the other side of the trachea connected with air gun.
Step 3: Place the corresponding specifications of the air bags in to fill the gap.
Step 4: Insert gas gun air bags valve mouth, ready to air.
Step 5: After the air gun docking with the valve, start the air compressor in air.
Step 6: When air bags are filled the gap and goods are not rocking back and forth on both sides, can be stopped.



Excellent quality high strength kraft paper bag fengxian dunnage bag



Correct operating method of kraft paper bag fengxian dunnage bag:

First,we should inflate dunnage bag and prohibit screwing off air valve cap for inflating.
Second, we should pick up bag instead of pressing it on the ground preventing inner bag’ s damage with overexertion.
Third, when place dunnage bag, we should insure there is no bulge avoid its breakage. We had better place two piece of clapboard between dunnage bag and both surface of cargoes, which could avoid puncturing dunnage bag.





Packaging & Shipping



Production Flow of kraft paper bag fengxian dunnage bag:

Excellent quality high strength kraft paper bag fengxian dunnage bag





Package of kraft paper bag fengxian dunnage bag:

1.Standard Carton Packing.

2.Shipping according to customers' requirement.

3.We will choose the best way for you.





Partners

Excellent quality high strength kraft paper bag fengxian dunnage bag

Trading process:

Excellent quality high strength kraft paper bag fengxian dunnage bag







Our Services

We promise:

1.Fast reply within 24 hours

2.Provide high quality dunnage air bag.

3.Professional advice to help you make your transport better

4.1 days delivery for dunnage air bag (SAMPLES)

5.7-15 working days delivery for mass production of Dunnage Air Bag

6.We promise you our quality.(If it is our quality problem, note us in 3 days after you received goods, we will received returned goods.)



FAQ

1. Q:Are you a factory or  Trading Company?

A:We are a factory.

2. Q: How to order?
A: Please send us your purchase order by Email or Fax,or you can ask us to send you Proforma Invoice for your order.We need to know the following information for your order:

1)Product information:Quantity,Specification(Size,material,Bear strenth,Packaging requirement etc.),Sample will be the best.

2)Delivery time required

3)Shipping information:Company name,Address,Phone number,Destination seaport/airport.

4)Forwarder'scontact details if there is any in China.

3. Q:How long and how to get the sample from us?

A:1)If you need some sample to text,we can make as per your request,pls provide us more details or pictures.You shoud pay for the transportation freight of samples(One sample is free,but more than one,you need pay for cost),while the sample cost can be refundable if order is confirmed and QTY goes up to 2000pcs.

    2)Leading time for making sample:about 2 days.

   3)The transportation freight of samples:the freight depends on the weight ,packing size and your area.

4. Q:What is the payment terms for sample cost and order amout?

A:We accept the payment sent by T/T,West Union,Sample by Paypal can also be.
5.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Fengxian District, Shanghai, China.It's near Pudong airport, also not very far from Hongqiao airport/ HSR station. For arranging pick up service, please contact with us in advance when you are coming. All our clients, from home or abroad, are warmly welcome to visit us!
6.Q:How does your factory do regarding quality control?
A:"Quality is priority. Dream_Mao people always attach great importance to quality controlling from the very beginning to the very end. Our products are inspected by SGS, ROHS, AAR...
