One ventilation system includes 2 unit, air intake unit and air outtake unit, each unit has a control board fixed inside. Ventilation system can be turned on by manual or automatic. If want to control the work of ventilation system automatically based on temperature, a HW11A or other model controller is needed.
User can choose model based on different requirement.
Performance Indices: | ||||
Type |
FTF2 |
|||
800 |
1200 |
1600 |
2400 |
|
Number of DC direct fans |
2 |
3 |
4 |
6 |
Theory ventilation |
800 m3/h |
1200 m3/h |
1600 m3/h |
2400 m3/h |
Install hole size |
320mm*385mm |
500mm*385mm |
500mm*385 mm |
670mm*385mm |
Shutter control mode |
Use DC24V motor to drive eccentric wheel and make the pole move back and forth alternately. |
|||
Rating voltage |
DC42V ~ DC57V |
|||
Current of one DC direct fan |
0.4A |
|||
Lifetime of shutter |
More than 1 million |
|||
Dimension of fan unit
Model |
Dimension (unit:mm) |
|||||
L1 |
L2 |
A |
B |
h1 |
h2 |
|
TF2-800 |
320 |
385 |
452 |
388 |
34 |
410 |
TF2-1200 |
500 |
385 |
452 |
568 |
34 |
410 |
TF2-1600 |
500 |
385 |
452 |
568 |
34 |
410 |
TF2-2400 |
670 |
385 |
452 |
738 |
34 |
410 |

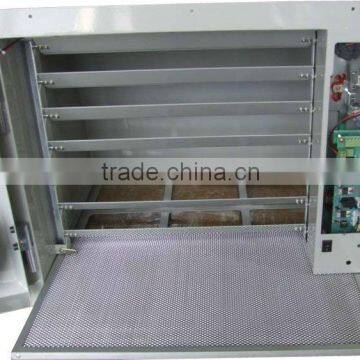

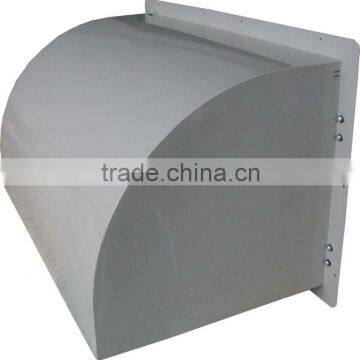

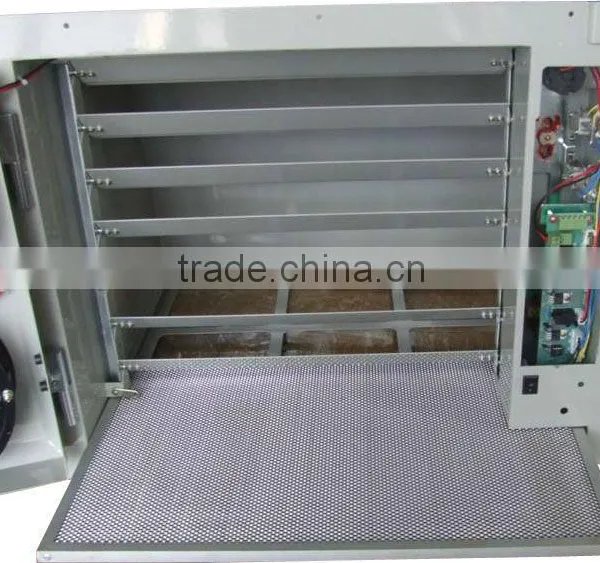

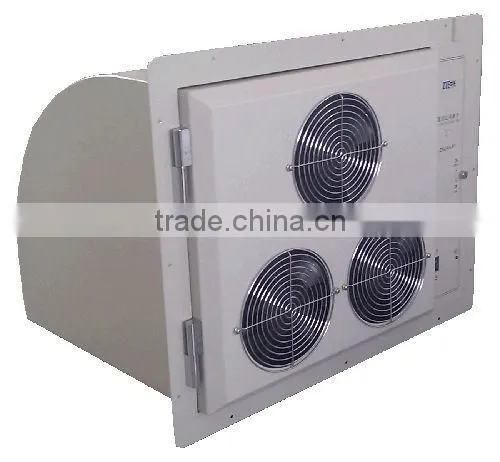

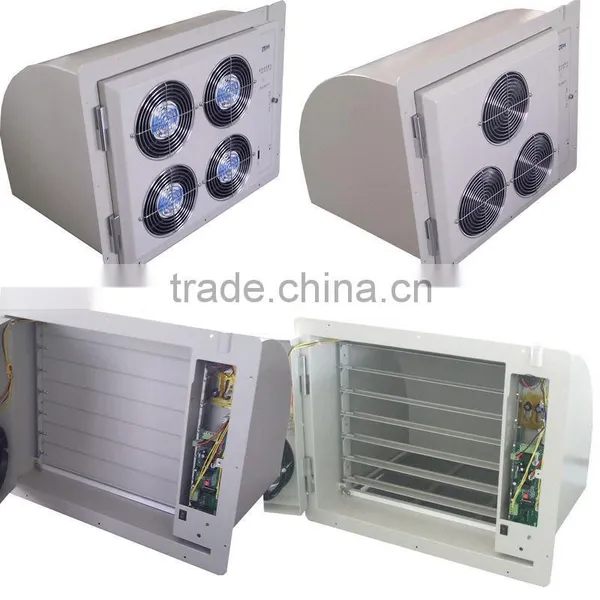

Product pictures:
Packed in two carton, one for air-intake unit, and another for ai-outtake unit.
Carton size: 680x570x560mm
offer OEM/ODM service .
About us:
Hangzhou Xinjian Electronic Co., LTD. is an ISO9001 certified manufacturer, and also is a hi-tech company. It has been specialized in designing and producing industrial control solution since 1997. All products are designed and made for the global market, and we’ve offered OEM/ODM service to world-class brands. We have been highly recognized not only for its good quality but also excellent after-sales services both in domestic and international market.
