TFL Centrifugal Fan for Telecom Base Station

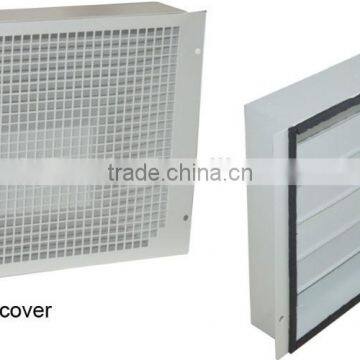

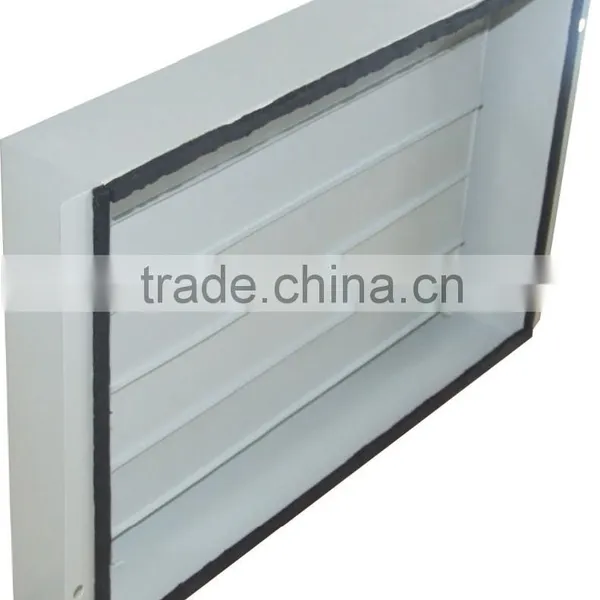

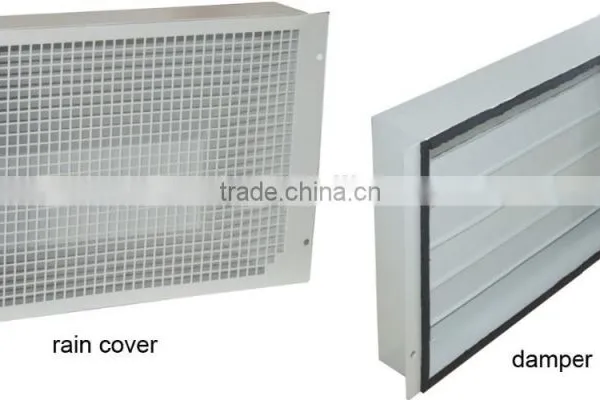

TFL Centrifugal Fan for Telecom Base Station photo-1
TFL Centrifugal Fan for Telecom Base Station photo-2
TFL Centrifugal Fan for Telecom Base Station photo-3
TFL Centrifugal Fan for Telecom Base Station photo-4
TFL Centrifugal Fan for Telecom Base Station photo-5
US$ 1 - 600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Xinjian
Model Number:
TFL
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Xinjian
Model Number TFL

Specifications

Energy-saving telecom shelter ventilation solution
Big ventilation capacity
Alarm signal output if broken
Easy installation







Product Description





TFL contrifugal telecome ventilation system:

lcontains air-intake unit and air-outtake unit, and air-intake unit use high efficiency DC centrifugal fan made by EBMPAPST. Another type of fan with same size can be chosen based on requirements.

lAir-outtake unit can choose unit with DC axial fan (force exhaust), or without fan (natural exhaust). Nature exhaust unit is advised.

lSuit for sandwich wall, width is between 70mm and 100m, can customize split type to suit other type of wall.

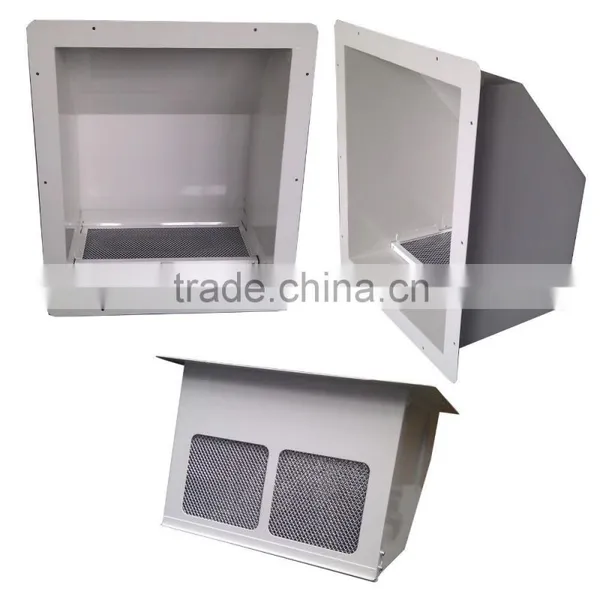

TFL Centrifugal Fan for Telecom Base Station                 TFL Centrifugal Fan for Telecom Base Station

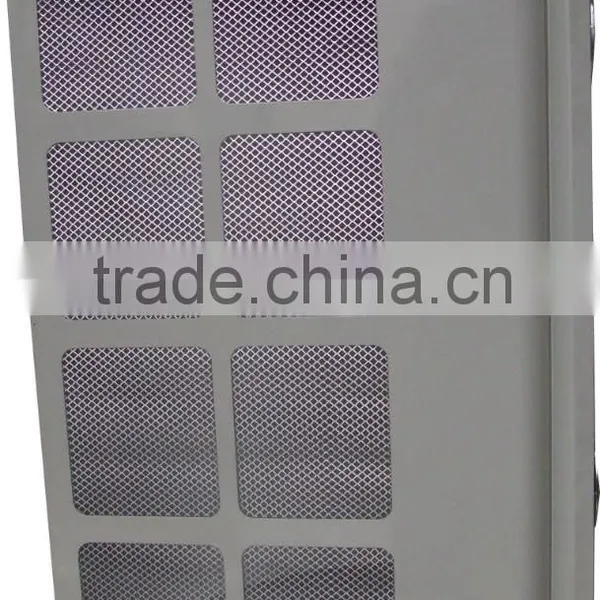

Air-intake unit                                                          Air-outtake unit

Feature



lHigh efficiency centrifugal fan, big ventilation capability

lRemovable G4 filter, washable, can filter dust in air

lFilter clogging detection, to prompt clear the filter

lPressure threshold of filter is changeable

lStart at full speed by manual

lStepless speed regulation of fan (optional)

lFan work frequency can be detection (optional)

loutput fan alarm or damper broken signal

Technical Parameter (air-intake unit)



Parameter

Unit

Value

Rating voltage

V

DC 48

Theory ventilation capability per fan

m3/h

2790

Speed of fan

RPM

1560

Current per fan

Amp

3.7

Power per fan

W

178

Use life of fan @ 40°C

Hours

50000

Size of fan

mm

355

Speed control signal(PWM)

V

DC 0-10V

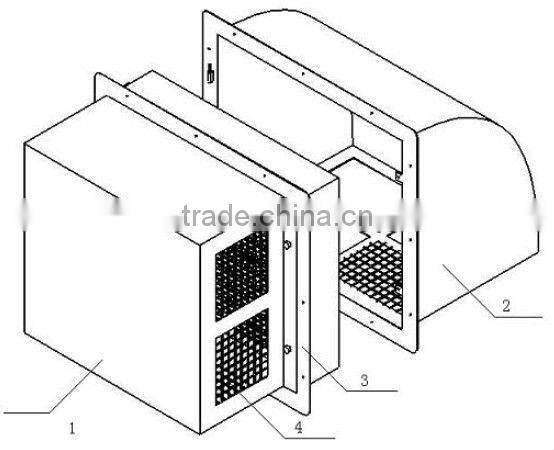

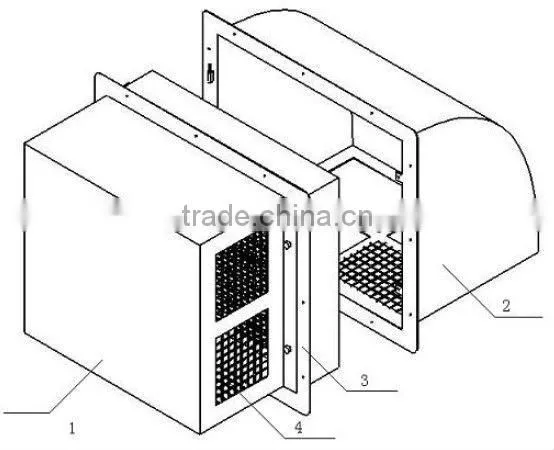

Dimension (Air-intake unit)



  TFL Centrifugal Fan for Telecom Base Station

  1. fan box (contains DC centrifugal fan, control board, G4 filter, filter clogging pressure sensor)
  2. rain cover with fly net in bottom
  3. door
  4. ventilation hole (bottom, left side, right side)

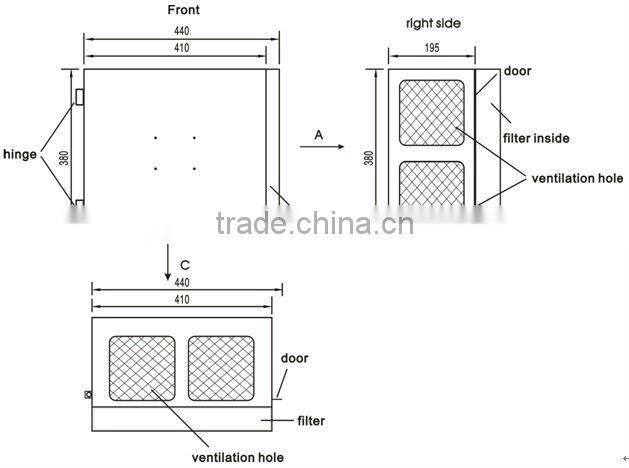

Fan box size

 TFL Centrifugal Fan for Telecom Base Station
