TF2 2/2 BTS sites ventilation system

Specifications

Use integration case, theftproof, mothproof, rainproof, low noise, high efficiency.

This BTS  ventilation system includes 2 unit, air intake unit and air outtake unit, each unit with a control board fixed inside. The ventilation system can be turned on automatically or manually.

Our matched ventilation system controller is recommended to use with it together.



Specification:

1. Air flow of each fan: 260CFM
2. Theoretically air rate of system: 520CFM
3. Ventilation efficiency: 60 ~ 70%
4. Install hole size: 320mm*385mm
5. Rating voltage: DC42V ~ DC57V
6. Rating current: 0.4A for each fan
7. Noise: less than 65dB within 1.5 meters
8. install width of wall: 70 ~ 100mm
9. Lifetime of louver: more than 1 million
10. Package size: 530x450x520/ CTN
11. Weight: 11.5Kg/13Kg
12. Suggest use area: less than 15m³





Inner side of the ventilation system



Backside of the ventilation system



Filter screen of the air-intake unit

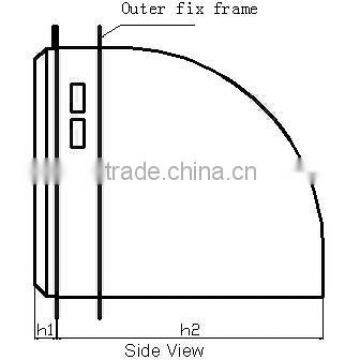

Side face of the ventilation system

Finished products

Finished products 2





Ventilation system used on BTS



Ventilation system used on BTS
